5dBi Antenna 4G Outdoor Router 300mbps 4g Router Plastic Shell

5dBi Antenna 4G Outdoor Router 300mbps 4g Router Plastic Shell

  • High Light

    5dBi Antenna 4G Outdoor Router


    5dBi Antenna 300mbps 4g Router


    300mbps 4g Router Plastic Shell

  • Chipset
  • WIFI
    802.11 B/g/n
  • Interface
    2 LAN
  • SIM Card Slot
    1 SIM Card Support
  • RAM
    1GB DDR2
  • Flash
    128MB SPI
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 piece
  • Price
  • Packaging Details
    31*29*8cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,,Paypal
  • Supply Ability
    1000PCS/45 days

5dBi Antenna 4G Outdoor Router 300mbps 4g Router Plastic Shell

300Mbps Built-In 5dBi Antenna Plastic Shell Waterproof 4g Outdoor Router


Product Description


A companion wireless communication product, which is transformed into the demand of security industry, has a wireless speed of up to 300mbps, which brings great convenience to the construction of security user engineering, and provides safe data network, collection and transmission function for monitoring. The whole network is connected to 4G network, and the whole line is compatible with 4g/3g/2g network, and equipped with 2 10/100m Ethernet LAN interfaces, which are connected with ICP; 1 DC 12V reverse power supply port, which can directly supply IPC.


Product features
Industrial waterproof design, reverse power supply, 300m wireless speed
It adopts professional wireless processor and integrated shell, which can effectively prevent water and dust. It has built-in 5dBi 4G professional antenna and wifi antenna. The device is equipped with connecting line, and two 100m cable ports are provided to connect with IPC, which makes the network transmission more stable. In addition, it is equipped with 12V DC output port, which can directly supply power to IPC.


Easy to set up and plug in
Built in quick setup wizard to guide customers to complete configuration easily; Default 4G access mode, plug in and play; Support 4G to cable, support mobile Unicom Telecom 4G / 3G / 2G network card, in the cable bandwidth can not reach the place more 4G Internet advantage, 4G and cable automatic switch, never break the line.


A variety of security strategies to ensure network data security at all times
Support WPS, WPA, WPA2 wireless security access, support SSID concealment, visitor network, black and white list, LAN port isolation, alg, MAC filtering, IP filtering, NAT setting, DDoS, effectively protect network security, and ensure user network data security at all times.


Various status statistics, always know the working status of the equipment
Built in traffic statistics, support traffic package settings, easy to understand the monthly traffic usage; Multi state work indicator, real-time work log view, always understand the working status of the equipment.



Hardware Specifications
Main chip MT7628N 300M High performance enterprise chip
Main frequency 580MHz
Wireless technology 802.11b/g/n 300M MIMO technology
Flash memory SPI 128MB
Memory DDR2 1GB
Device interface

LAN 10/100Mbps Adaptive network interface * 1

DC reverse power supply port * 1

Power receiving interface *1

Nano SIM Card, small card

Antenna Built in 5dBi 4G antenna, built-in onboard wifi antenna
power waste <7W
Key One reset button, long press for 3 seconds to restore factory settings
Product size 172mm*90mm*43mm
RF parameters 802.11b/g/n:2.4~2.4835GHz
Modulation mode

11b:DSS:CCK 5.5/11Mbps,DQPSK 2Mbps,DBPSK 1Mbps

11g:OFDM:64QAM 48/54Mbps,16QAM 24Mbps,QPSK 12/18Mbps,BPSK 6/9Mbps


transmission speed

11b: 1/2/5.5/11Mbps

11g: 6/9/12/18/24/36/48/54Mbps

11n: Up to 300Mb

Receiving sensitivity

11b: <-84dbm 11Mbps;

11g: <-69dbm 54Mbps;

11n: HT20<-67dbm HT40: <-64dbm

Transmitting power

11b: 18dBm@ 1~11Mbps

11g: 16dBm @ 6~54Mbps

11n: 15dBm@ MCS0~7


Communication Standards

IEEE 802.3(Ethernet)

IEEE 802.3u(Fast Ethernet)

IEEE 802.11b/g/n(2.4G WLAN)

Wireless Security WPA/WPA2 Security mechanism (wpa-psk uses TKIP or AES)
Network standard / GNSS
LTE-FDD (support hierarchical reception)

LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8(Customizable)


GNSS function GPS,GLONASS,BeiDou/Compass,Galileo,QZSS
Transmitting power

Class 4 (33dBm±2dB) for GSM900

Class 1 (30dBm±2dB) for DCS1800

Class E2 (27dBm±3dB) for GSM900 8-PSK

Class E2 (26dBm±3dB) for DCS1800 8-PSK

Class 3 (24dBm+2/-1dB) for CDMA BC0

Class 3 (24dBm+1/-3dB) for WCDMA bands

Class 2 (24dBm+1/-3dB) for TD-SCDMA bands

Class 3 (23dBm±2dB) for LTE-FDD bands

Class 3 (23dBm±2dB) for LTE-TDD bands

LTE Features

Maximum support 3GPP R8 non-CA Cat 4 FDD and TDD

support 1.4MHz~20MHz RF bandwidth

Downlink support MIMO

LTE-FDD:Maximum downlink rate 150Mbps,Maximum uplink rate 50Mbps

LTE-TDD:Maximum downlink rate 130Mbps,Maximum uplink rate 35Mbps

UMTS Features


support QPSK,16-QAM and 64-QAM modulation

DC-HSDPA:Maximum downlink rate 42Mbps

HSUPA:Maximum uplink rate 5.76Mbps

WCDMA:Maximum downlink rate 384Kbps,Maximum uplink rate 384Kbps

TD-SCDMA Features

support CCSA Release 3 TD-SCDMA

Maximum downlink rate 4.2Mbps,Maximum uplink rate 2.2Mbps

CDMA Features

support 3GPP2 CDMA2000 1X Advanced and 1xEV-DO Rev.A

EVDO:Maximum downlink rate 3.1Mbps,Maximum uplink rate 1.8Mbps

1 X A d va n c e d:Maximum downlink rate 3 0 7 . 2 K b p s,Maximum uplink rate307.2Kbps

Operating/Storage Temperature -10℃~50℃/-40℃~70℃
Operating/Storage Humidity 5%~95%(non condensing)
Working mode 4G Access, routing mode, AP mode
Capacity 30 people
Management style Chinese web remote management
Status System status, interface status, routing table
Wireless Configuration WiFi basic parameters configuration / blacklist
Network Settings

Working mode

LAN/WAN Address setting

Traffic Assistant Traffic statistics / package settings / traffic control
System System properties / password modification / backup upgrade / system log / restart


Details Images

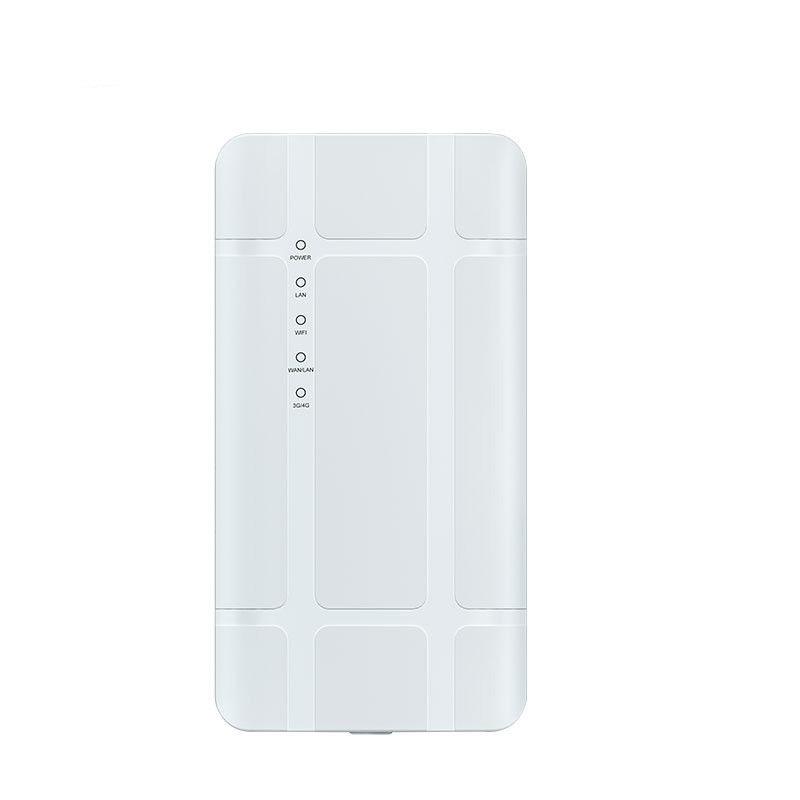

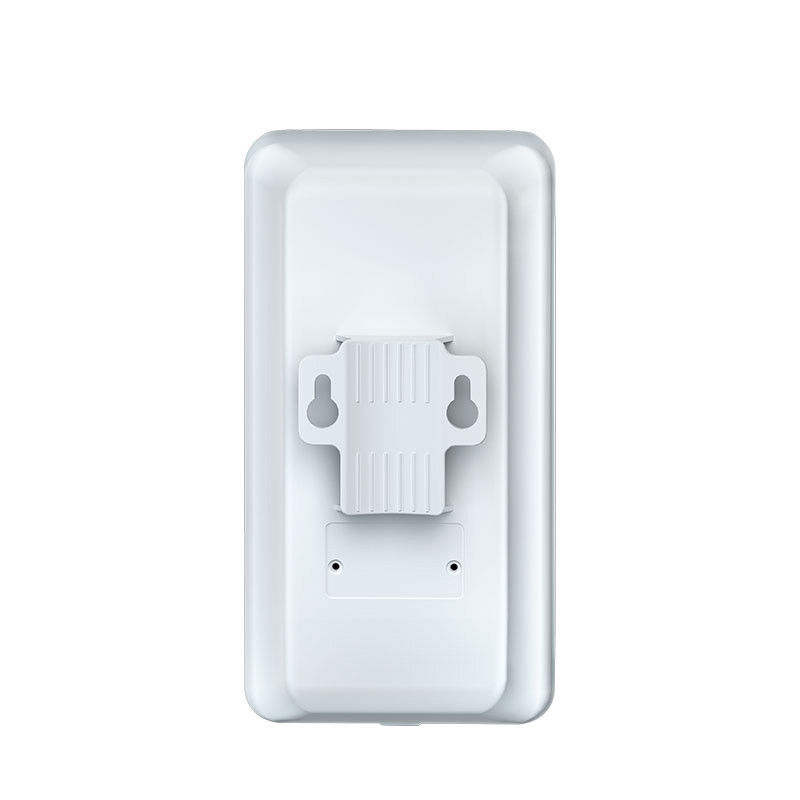

5dBi Antenna 4G Outdoor Router 300mbps 4g Router Plastic Shell 05dBi Antenna 4G Outdoor Router 300mbps 4g Router Plastic Shell 15dBi Antenna 4G Outdoor Router 300mbps 4g Router Plastic Shell 25dBi Antenna 4G Outdoor Router 300mbps 4g Router Plastic Shell 35dBi Antenna 4G Outdoor Router 300mbps 4g Router Plastic Shell 4



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. Do your products meet our standards?

A: Yes, almost all our products have CE,ROHS,FCC,etc.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q7. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
Q8. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
