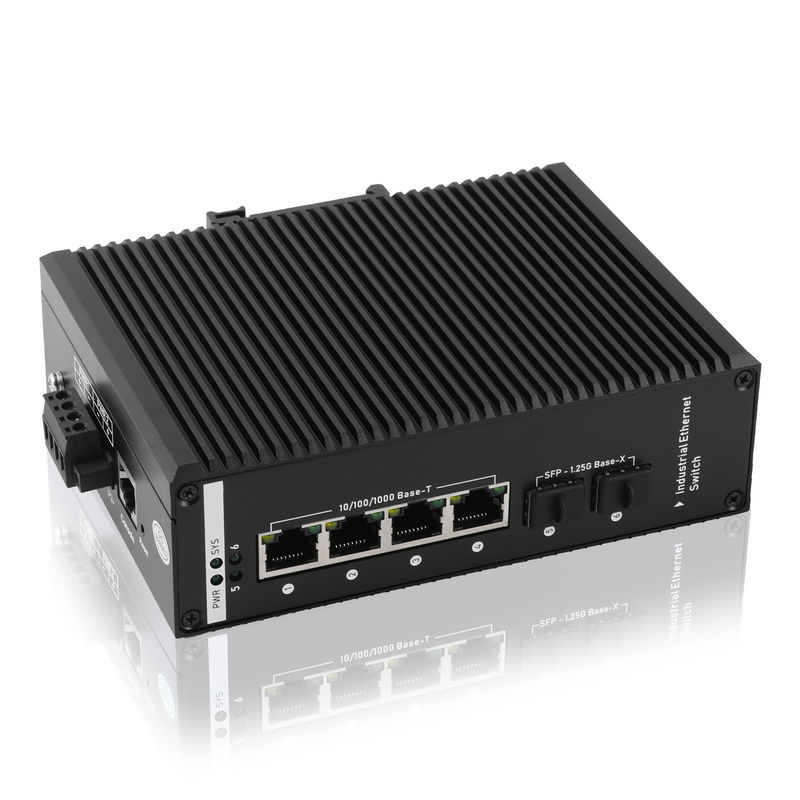

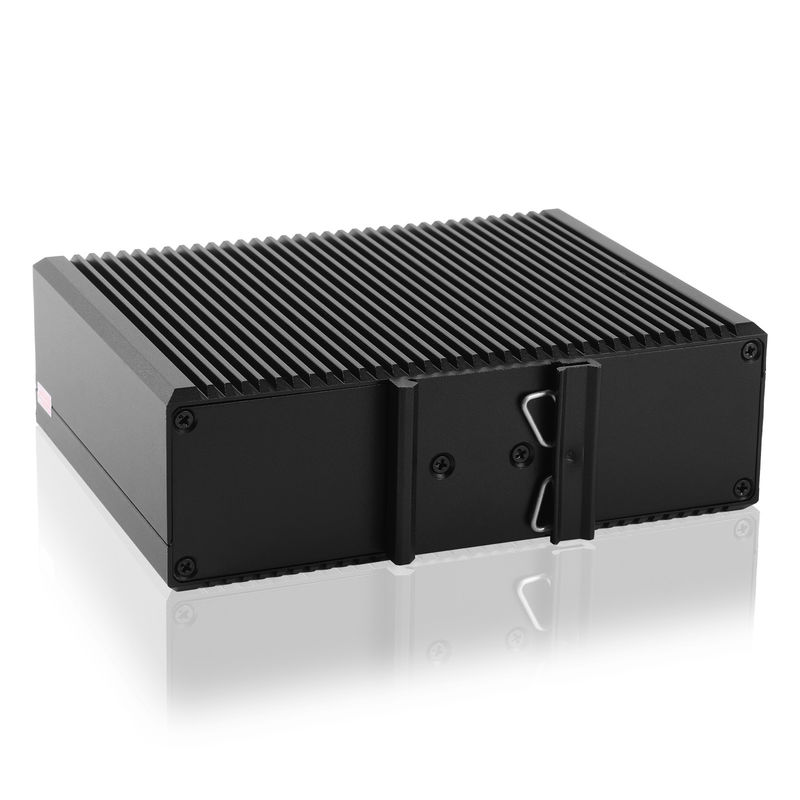

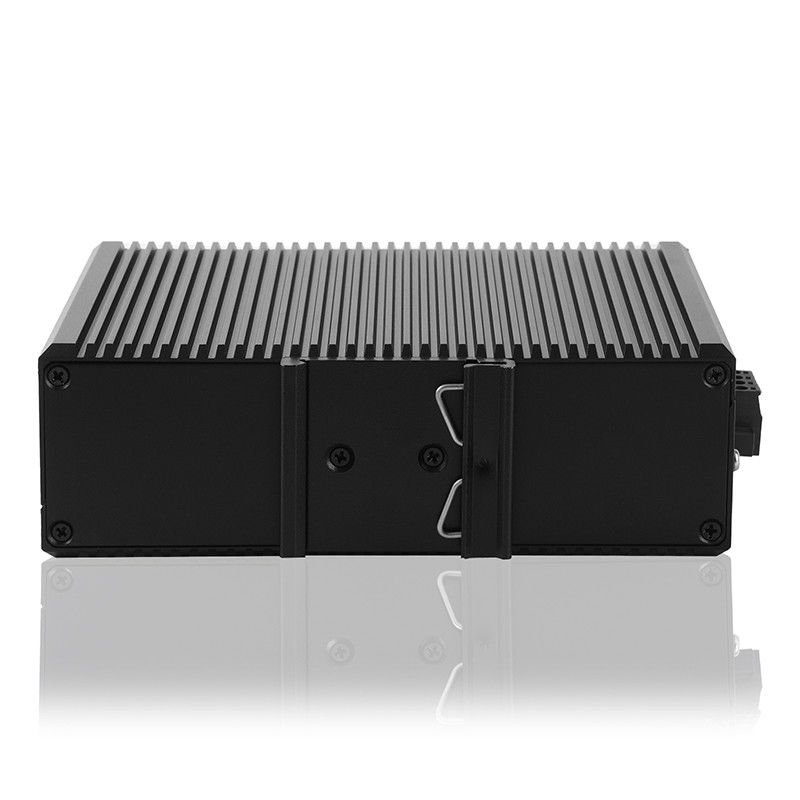

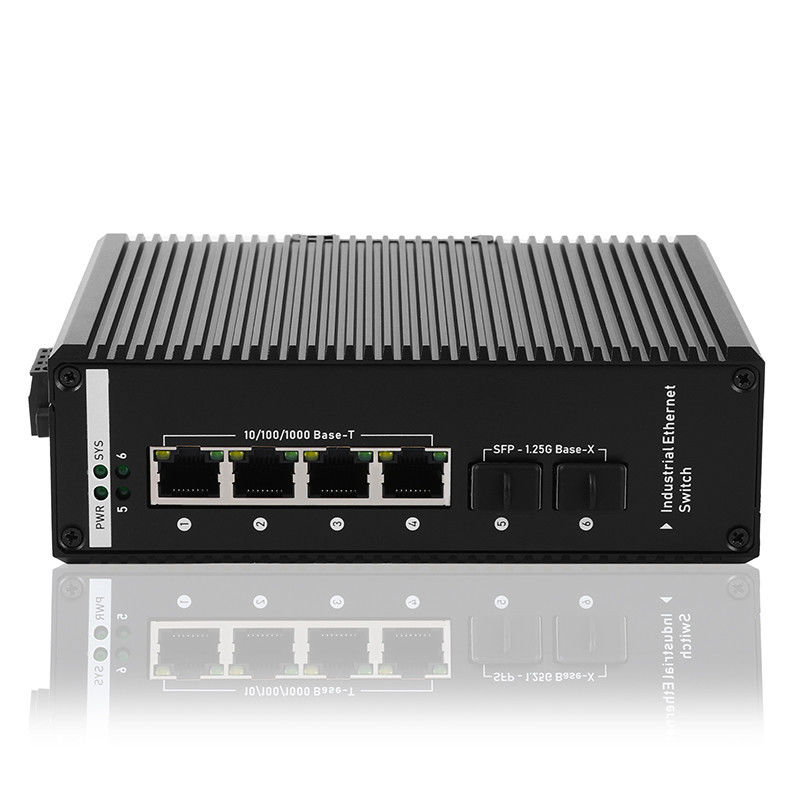

Metal Shell Gigabit Managed Switch With 4 POE Port 2 SFP Port

Metal Shell Gigabit Managed Switch With 4 POE Port 2 SFP Port

  • High Light

    Metal Shell Gigabit Managed Switch


    Gigabit Managed Switch 4 POE Port


    managed poe switch 2 SFP Port

  • PoE Ports
    4*10/100/1000Mbps POE Ports
  • Product Name
    Gigabit PoE Switch
  • Power Supply
    48-56V DC
  • Chipset
  • Switching Capacity
  • Color
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 piece
  • Price
  • Packaging Details
    23*18*9 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,,Paypal
  • Supply Ability
    1000PCS/45 days

Metal Shell Gigabit Managed Switch With 4 POE Port 2 SFP Port

Gigabit managed industrial PoE switch 4 POE port 2 SFP port metal shell POE switch


Product Description


  The M804GP-2SFP-I is a full Gigabit managed industrial PoE switch independently developed by HUASIFEI. it has 4*10/100/1000M PoE ports and 2*100/1000 SFP fiber slot ports , port 1-4 can support IEEE 802.3af/at standard PoE power supply, single port PoE power up to 30W.
As a PoE power supply device, it can automatically detect and identify the electrical equipment that meets the standard and supply power through the cable. It can supply the PoE terminal equipment, such as wireless AP, network camera, network telephone, industrial sensor and so on, to meet the demand for high density PoE power supply network environment.
  It is suitable for intelligent transportation, rail transportation, electric power industry, mining, metallurgy and green energy construction and so on.



  • Supports IEEE 802.3i,IEEE 802.3u,IEEE802.3ab,IEEE802.3z,IEEE802.3x,IEEE802.3at,IEEE802.3af,IEEE802.3az.
  • Supports PoE power up to 30W for each PoE port.
  • 4× gigabit PoE+ ports and 2× gigabit SFP.
  • Supports MAC address auto-learning and auto-aging.
  • Store and forward mode operates.
  • LED indicators for monitoring power, link/activity
  • Support QoS, port mirroring, link aggregation protocol.



Model M804GP-2SFP-I
Chipset RTL8380MI+TPS23861
Standards IEEE 802.3i,IEEE 802.3u,IEEE802.3ab,IEEE802.3x, IEEE802.3az, IEEE802.3af,IEEE802.3at
Number of Ports

4 x 10/100/1000Mbps ports

2 x 1000Mbps SFP ports

1x Console port

Network Media (Cable)

10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
1000Base-T: UTP category 5e, 6 cable (maximum 100m)


Transfer Method Store-and-Forward
MAC Address Table 8K
Switching Capacity 56Gbps
Packet Forwarding Rate 41.67Mpps
Packet Buffer 4.1Mbit
Jumbo Frame 12KBytes
PoE Ports(RJ45) 4x PoE ports compliant with 802.3at/af
Power Pin Assignment 1/2(+),3/6(-)
Indicators Per Device Power, System
Per Port Link/Activity,
Power Supply 48-56V DC
Power Consumption Maximum(PoE on): 65W
Dimensions (W×D×H) 150x110x48mm (Rail type Aluminum case)

Operating Temperature: -40℃~85℃

Storage Temperature: -40℃~85℃

Operating Humidity: 10%~90% non-condensing

Storage humidity: 5%~90% non-condensing


Details Images

Metal Shell Gigabit Managed Switch With 4 POE Port 2 SFP Port 0Metal Shell Gigabit Managed Switch With 4 POE Port 2 SFP Port 1Metal Shell Gigabit Managed Switch With 4 POE Port 2 SFP Port 2Metal Shell Gigabit Managed Switch With 4 POE Port 2 SFP Port 3Metal Shell Gigabit Managed Switch With 4 POE Port 2 SFP Port 4



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. Do your products meet our standards?

A: Yes, almost all our products have CE,ROHS,FCC,etc.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q7. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
Q8. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
