WS1208 1200Mbps Dual Band 4g 5g Lte Router Black Metal Shell 5g Wireless Router
Product Description
Hardware:
Wireless:
Support IEEE802.11AC/N/G/B/A wireless protocol, max wireless rate could be 1200Mbps , 4×5Dbi high gain antennas , perform better and cover larger.
Customizabilit
To meet the needs of "routing enthusiasts" and some "special industry" applications, it supports "one-click web brushing mode" for easy brushing. Customizable memory and flash memory sizes.
Specification
| Technical Specification | |||
| SOC | MT7621A+MT7612E+MT7603E 880MHz dual-core MIPS1004Kc CPU |
||
| RAM | 128Mx16bit DDRIII SDRAM,16MB SPI Flash Supports up to 256Mx16bit DDRIII, 32MB SPI Flash |
||
| Wireless Frequency Band | Wi-Fi 1: 11b/g/n : 2.412~2.484 GHz Wi-Fi 2: 11a/n/ac : 5.180~5.825 GHz GPS:1565.42~1585.42 MHz |
||
| Wireless Specification | Maximum access rate of 1167Mbps (2.4G 300Mbps + 5G 867Mbps) | ||
| PCBA size | L200mm x W175mm x H17mm | ||
| Maximum Power Consumption | Max. power consumption 24W | ||
| Physical Interface | WAN x 1+LAN x 4 : RJ45 interface ,10/100/1000 Fast Ethernet Power connector: 5.5mm DC socket, DC12V2A power input USB interface: 1 USB3.0 female socket LTE interface: 1 MiNi PCI-E female connector, connects to USB2.0 interface LTE module, 1 drawer SIM card holder Buttons: 1 button to return to factory settings |
||
| Power Requirements | DC12V2A | ||
| Wireless Settings | Working Mode AP/WDS/Repeater Wireless mode 11b/ 11g /11n /11a /11ac Channel selection (Display the number of channels in different areas by country setting) Channel bandwidth (Auto, 20Mhz, 40Mhz, 80Mhz,) |
||
| Receiving Sensitivity | 802.11b -92dBm @ 1Mbps -83dBm @ 11Mbps 802.11ag -91dBm @ 6Mbps -76dBm @ 54Mbps 802.11n HT20 -91dBm @ MCS0 -70dBm @ MCS7 802.11n HT40 -88dBm @ MCS0 -67dBm @ MCS7 802.11ac HT80 -85dBm @ MCS0 -58dBm @ MCS9 |
||
| Antenna | External detachable 5DBi high gain omni-directional antenna | ||
| Environmental and Physical Parameters | |||
| Operating Temperature | -20°C ~ 55°C | ||
| Storage temperature | -40°C ~ 70°C | ||
| Humidity | 0%~90% Typical, non-condensing | ||

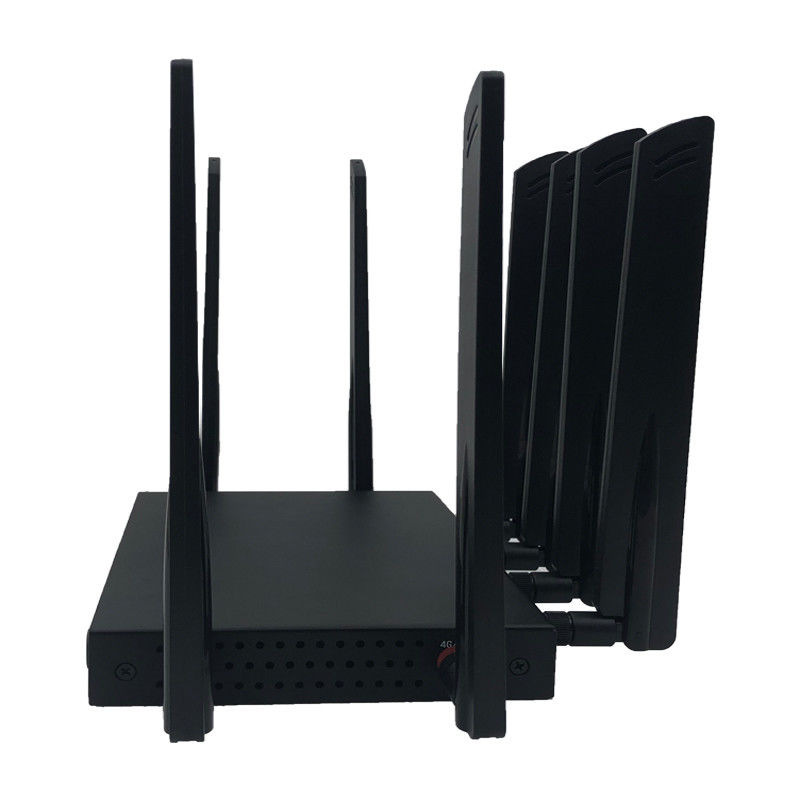

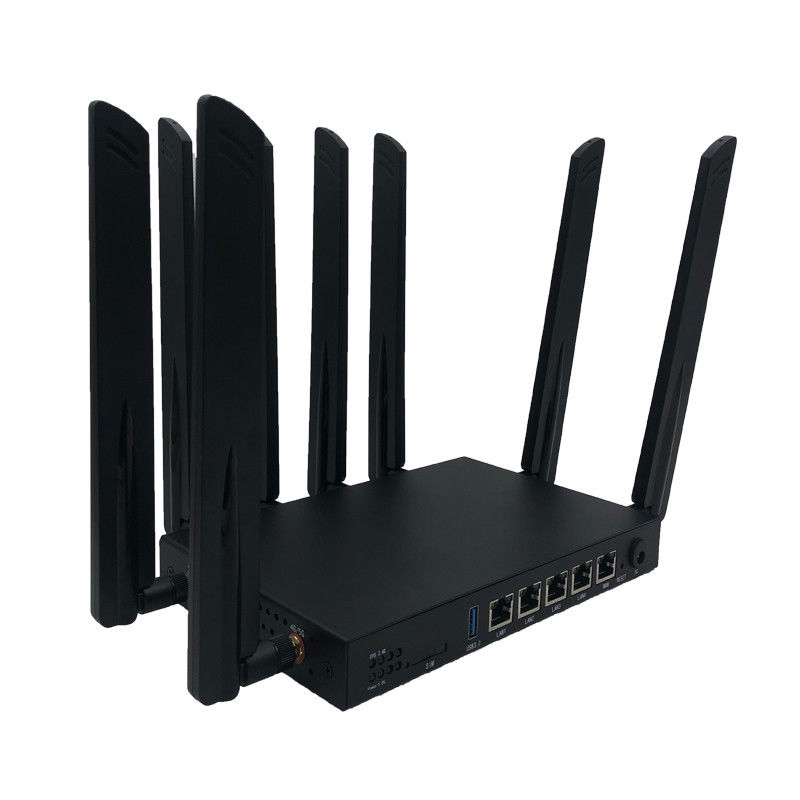

Products Pictures
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Our products are sold all over the world, you can rest assured.
