M.2 Interface 4g And 5g Wifi Router RS232 RS485 OpenWRT Firm

M.2 Interface 4g And 5g Wifi Router RS232 RS485 OpenWRT Firm

  • High Light

    M.2 4g And 5g Wifi Router

    ,

    4g And 5g Wifi Router RS232

    ,

    4g and 5g router RS485

  • Flash
    32MB
  • RAM
    128-256MB DDR3
  • Interface
    M.2
  • Serial Port
    RS232 RS485
  • RJ45 Network Port
    1WAN+1LAN Gigabit Adaptive MDI/MDIX
  • SIM Card Slot
    1 SIM Card Support
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    WS7621-M5G
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    24*15*5 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,,Paypal
  • Supply Ability
    1000PCS/45 days

M.2 Interface 4g And 5g Wifi Router RS232 RS485 OpenWRT Firm

Gigabit 4g 5g WIFI Wireless Hotspot M.2 Interface Serial RS232 RS485 OpenWRT Firm



Product Description

Overview
  WS7621-M5G adopts MediaTek SOC chip, the chip adopts dual-core quad-thread 880MHz, MT7621 SOC, to meet the needs of various application scenarios 1 USB3.0 M.2 interface, can be connected to M.2 5G module (factory default), support 9-48V DC power supply and support 1 Gigabit WAN 1 Gigabit LAN, support 3 serial ports, one debugging serial port, one RS232, one RS485, factory software support Linux (openwrt) version, the default dual page, the factory software support 1 Gigabit WAN 1 Gigabit LAN. One RS232, one RS485, WS7621-M5G software using Linux (openwrt) version, the default double page, factory software support



Key Features

  • Adopt high performance industrial grade wireless module
  • Online cloud platform management system
  • WDT watchdog design to ensure system stability
  • Built-in 1.5KV electromagnetic isolation protection for Ethernet interface
  • Complete anti-dropout mechanism to ensure the data terminal is always online
  • Metal housing with protection class IP30. metal housing and system safety isolation, especially suitable for industrial control site applications



Full industrial design, resistant to high and low temperatures, durable

  The 5G industrial router is designed and manufactured with high-performance industrial-grade 32-bit communication processors and industrial-grade wireless modules to ensure the product can operate stably for a long time under harsh environments without fear of challenges.
The rugged metal casing, high protection level, wide temperature and voltage, EMC level 4, can withstand extreme temperature, voltage instability, high electromagnetic radiation, rain and dust attack and other harsh conditions to ensure continuous communication between remote devices and monitoring center.





Specification



Wireless parameters
Wireless module Industrial Grade Wireless Modules
Standard and frequency band

5G Band:N1/N2/N3/N5/N7/N8/N12/N20/N25/N28/

N40/N41/N66/N71/N77/N78/N79

LTE-FDDBand:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/

B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

LTE-TDD Band: B34/B38/B39/B40/B41/B42/B43/B48
Theoretical bandwidth 5G up to 4Gbps DL, 300Mbps UL
FDD/TDD LTE: 2.4Gbps/200Mbps HSPA+: 42.2Mbps/5.76Mbps [DL/UL
Transmit power <24dBm
Power consumption Approx. 11W Data mode <1A/12V; Idle mode <500mA/12V
Receiving sensitivity <-109dBm
Interface Type
LAN 2 Gigabit Ethernet interfaces (RJ45 socket), adaptive MDI/MDIX, built-in electromagnetic isolation protection
Industrial interface 1 communication RS485, 1 RS232 interface, suitable for its own acquisition equipment with RS485/232 interface
Industrial interface also supports non-polarized power supply input
Indicator light With 2X "LAN", ""5G" indicator, "SYS" light.
Antenna interface 7 standard SMA antenna interfaces (5G MIMO; 2.4G Wi-Fi x 1; GPS/BD), characteristic impedance 50 ohms
SIM/UIM interface SIM/UIM card engineering card cover to protect the inserted card from being dropped. 1.8V/3V auto-detection
Power interface 9V~48V interface terminal, 3.81mm connector
Reset reset button This button can be used to restore the Router's parameter configuration to factory values
USB interface Provide built-in USB2.0 interface for expanding WiFi module
M2 interface
5G module
(Default Unicom 5G module)
LONGSUNG U9300C
HUAWEI 5G MH5000
Quectel 5G RM500Q RG801H
Hisense 5G MNR01
Simcom 5G SIM8200
MeiG 5G SRM815
Thales MV31-W
Unicom 5G module



Products Pictures

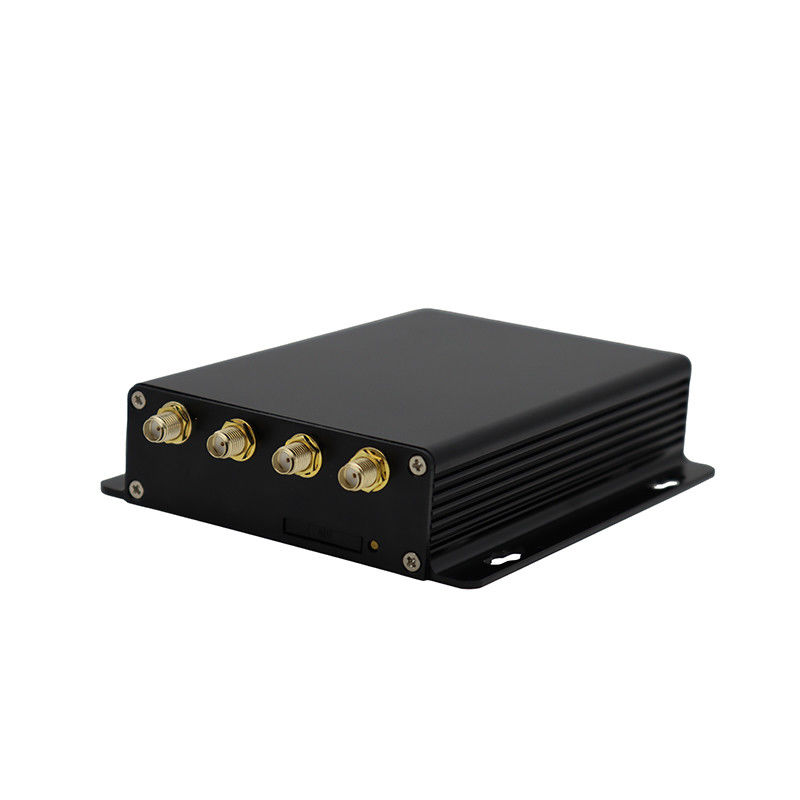

M.2 Interface 4g And 5g Wifi Router RS232 RS485 OpenWRT Firm 0M.2 Interface 4g And 5g Wifi Router RS232 RS485 OpenWRT Firm 1M.2 Interface 4g And 5g Wifi Router RS232 RS485 OpenWRT Firm 2M.2 Interface 4g And 5g Wifi Router RS232 RS485 OpenWRT Firm 3



FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. Do your products meet our standards?

A: Yes, almost all our products have CE,ROHS,FCC,etc.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q7. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
Q8. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
