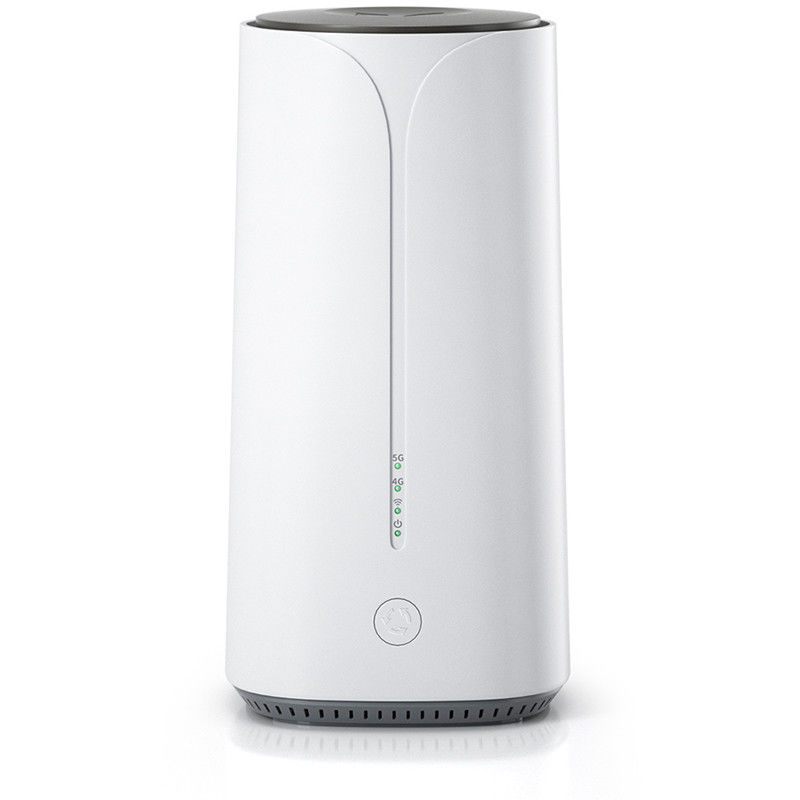

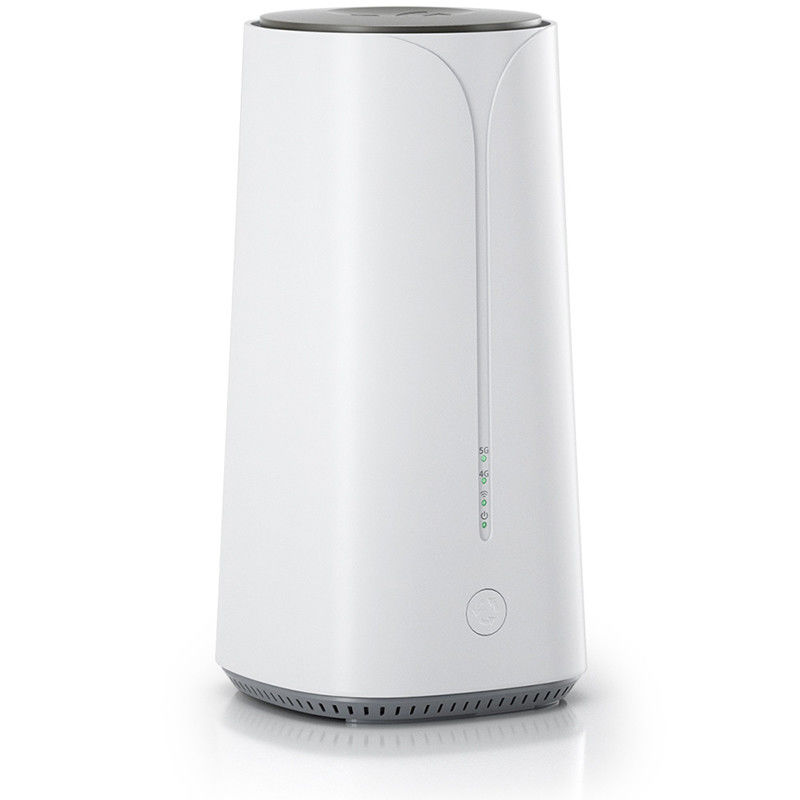

1800Mbps WIFI6 Router MT7621AT Chip Gigabit Ethernet Port 12V DC 5g Router
Product Description
5G & WiFi-6 Smart Router System (CPE), is based on brand-new embed platform, it can be satisfied with growing-up mobile connections requirements and provides the fast speed beyond your imagination.
The CPE is compatible with NSA/SA dual-mode, suits to all network types all over the world, it means you just plug and play it and enjoy the ultra-fast broadband connection at any places.
The CPE brings the new way to enable you experience VR/AR/4K/8K streaming freely and easily. With 802.11ax (Wi-Fi 6) technology built-in, the single CPE has wider wireless coverage and more bandwidth. Meanwhile the CPE brings higher security, better network efficiency and longer battery life.
5G Datasheet
- 5G Baseband: Qualcomm® Snapdragon™ X55 Modem-RF System
- 5G Network Modes: SA (standalone), NSA (non-standalone)
- 5G NSA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
- 5G SA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
- 5G Standards:3GPP Release 15
- 5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs)
- 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs)
4G Datasheet
- LTE Category:Down Cat 16/ UP Cat 18
- LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/ B26/B28/B29/B30/B32/ B66/B71
- LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48
- LTE Down 4 × 4 MIMO:B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66
- WCDMA:B1/B2/B3/B4/B5/B8/B19
- LTE : Down 1.0 Gbps;UP 200 Mbps
WIFI6 Datasheet
WiFi 6(802.11ax)
- Working Radio: #1: 600Mbps @ 2.4GHz; #2: 1200Mbps @ 5.1-5.8GHz
- Coding Technology:1024-QAM / OFDMA
- Peak Connections:>100+ Clients
- Wi-Fi Standard Conformance:WiFi6 and 802.11ac / 802.11n backward
- Antenna: built-in 4 pcs high performance antennas with 4 pcs external FEM components.
Data Switching
- Mobile 4G/5G Connection (Support APN)
- Giga Ethernet Connection
- MESH:MESH+ hybird
- 2.4G/5Ghz WiFi
- Advanced Firewall
- MAC Filter
- WiFi Sercurity
- VPN Passthrough and VPN Client (L2TP PPTP)
- IPV4/IPV6
- WEB / APP Mangement
- Firmware upgrade
Hardware Specification
- CPU: MT7621AT
- Memory:16MB Flash + 256MB DDR3
- Ethernet:1*1Gbps WAN,2*LAN 1Gbps
- 1* SIM Slot(Nano-SIM)
- Reset button
- MESH+ Button
- MESH+ LED Switch
- LED Indicato, MESH+ Working Status (breathing light), 4G Status , 5G Status, WiFi Status, Power Status
- Power Consumption:<20W
- DC Power Supply: 12V/2A
- Working temperature:0℃~40℃, Storage temperature: -20℃~+70℃
- Humidity:5%~95%
Specification
| CPU |
MT7621AT+SDX55 |
| Flash |
16MB |
| RAM |
2Gb |
| WiFi Frequency |
2.4G&5G |
| WiFi Standard |
2.4G:802.11b/g/n /ax 2T2R MIMO, 5.8GHz:802.11a/n/ac/ax 2T2R MIMO |
| WiFi |
2.4GHz :600Mbps ,5GHz :1200Mbps |
