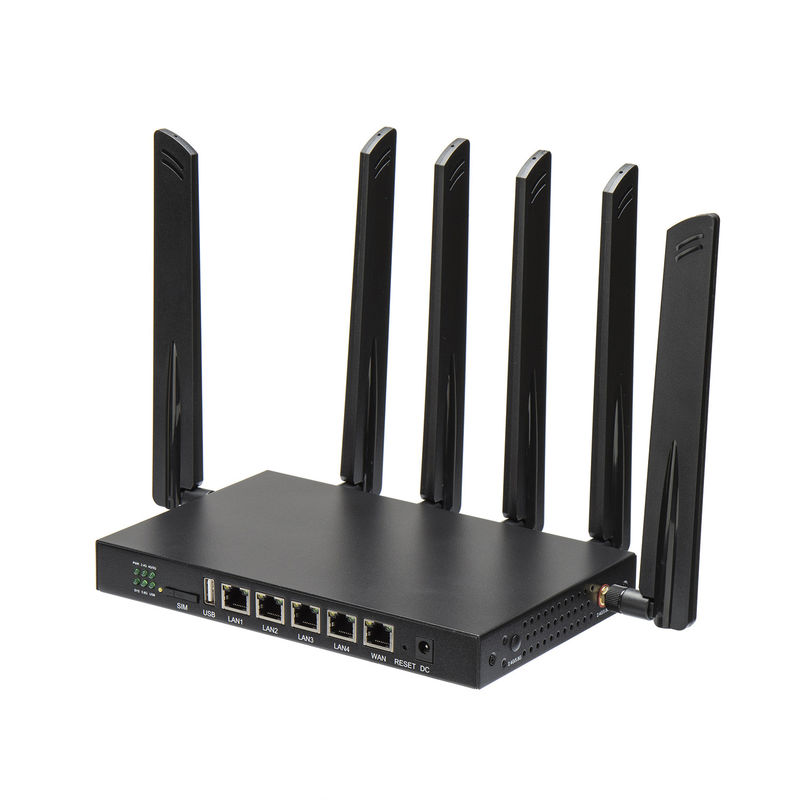

Gigabit Dual Band WS1208 Router 5g Wifi 12V DC 1200Mbps Wifi Router 5g Lte
Hardware
WS1208V2 uses the latest MMT7621A wireless solution with clock frequency up to 880MHZ, providing 5 Gigabit auto MDI/MDIX Ethernet ports, 1 x USB 2.0 port, 1 x PCI-E, 1 x M.2, 1 x Micro SD card
Wireless.
Support IEEE802.11AC/N/G/B/A wireless protocol, maximum wireless rate up to 1200Mbps, 6×5Dbi high gain antennas for better performance and coverage
Software
OpenWRT pre-installed.
Firmware support rooter.
Firmware support Quectel EC25 series EM/EP06 BG96 EM12 EM20 EM160 R500Q R502Q
Fibocom L850 L860 FM150 module, etc.
Modem band lock support
Specification
| WS1208V2 Hardware Specifications | |
| Hardware Specifications |
MT7621A Dual Core 880MHZ DDR3 memory 256MB SPI FLASH 16MB |
| Protocol Standards | IEEE802.11n/g/b/a/ac,IEEE802.3/802.3u |
| Wireless Rate | Dual-band concurrent up to 1200Mbps |
| Operating band | 2.4GHz 5.8GHz |
| 4G 5G Modem | |
| Output Power |
11n:17dBm±1dBm 11g: 17dBm±1dBm 11b: 19dBm±1dBm 11a: 19dBm±1dBm 11ac: 18dBm±1dBm |
| Receiving sensitivity |
11N HT20 MCS7: -72dBm 11N HT40 MCS7: -69dBm 11G 54Mbps: -74dBm 11B 11Mbps: -86dBm 11A 54Mbps: -73dBm 11AC VHT20 MCS8: -66dBm |
| Antenna |

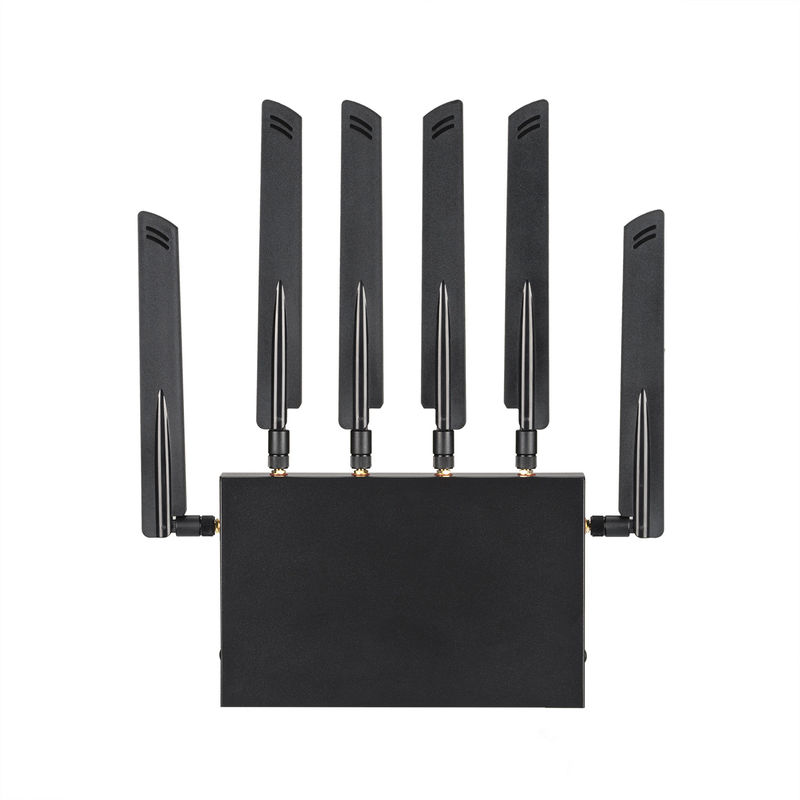

2 x 5dbi high gain omni-directional wifi antennas, 4 x 5dbi high gain omni-directional 4G5G antennas |
| Interface |
1*10/100M/1000M WAN port with automatic MDI/MDIX 4*10/100M/1000M LAN ports, auto MDI/MDIX 1*USB 2.0 port 1*PCI-E 1*M.2 1*SIM card 1*SD card |
| LED | power/2.4G/5.8G/WAN/LAN1/LNA2/LNA3/LNA4 |
| Button | 1 Reset button |
| Power adapter | DC 12/1000mA |
| Maximum power consumption | < 24W |
| Color scheme | Black |
| Accessories and Packaging |
Egg separator paper tray 32*21*6cm *1PCS Whole box: 43.1*28.5*34.8 10PCS Power adapter 12V/3A *1PCS Super Category 5 network cable *1PCS |
