1200Mbps Dual Band 5g Industrial Router Gigabit WAN/LAN Port Router Wifi 5g
Product Description
Hardware
WS1218 uses the latest MT7621A wireless solution with clock frequency up to 880MHZ, providing 5 Gigabit auto MDI/MDIX Ethernet ports, 1 x USB 3.0 port, 1 x PCI-E, 1 x M.2, 1 x Micro SD card.
Wireless
Support IEEE802.11AC/N/G/B/A wireless protocol, maximum wireless rate up to 1200Mbps, 8×5 Dbi high gain antennas for better performance and coverage
Software
OpenWRT pre-installed. Firmware support rooter. Firmware support Quectel EC25 series EM/EP06 BG96 EM12 EM20 EM160 R500Q R502Q RM520N Fibocom L850 L860 FM150 module, etc. Modem band lock support
Specification
WS1218 Hardware Specifications | |
Hardware Specifications |
MT7621A+MT7613+MT7603 Dual Core 880MHZ DDR3 memory 256MB SPI FLASH 16MB |
Protocol Standards | IEEE802.11n/g/b/a/ac,IEEE802.3/802.3u |
Wireless Rate | Dual-band concurrent up to 1200Mbps |
Operating band | 2.4GHz 5.8GHz |
4G 5G Modem | 4G or 5G modules can be selected, and the frequency band can be selected,Support Cat4/6/12/16/20 |
Output Power |
11n:17dBm±1dBm 11g: 17dBm±1dBm 11b: 19dBm±1dBm 11a: 19dBm±1dBm 11ac: 18dBm±1dBm |
Receiving sensitivity |
11N HT20 MCS7: -72dBm 11N HT40 MCS7: -69dBm 11G 54Mbps: -74dBm 11B 11Mbps: -86dBm 11A 54Mbps: -73dBm 11AC VHT20 MCS8: -66dBm |
Antenna |
4 x 5dbi high gain omni-directional wifi antennas, 4 x 5dbi high gain omni-directional 4G5G antennas |
Interface |
1*10/100M/1000M WAN port with automatic MDI/MDIX POE 4*10/100M/1000M LAN ports, auto MDI/MDIX 1*USB 3.0 port 1*PCI-E 1*M.2 1*SIM card 1*SD card |
LED | power/sys/2.4G/5.8G/4G5G/USB |
Button | 1 Reset button or 48V POE |
Power adapter | DC 12/3000mA |
Maximum power consumption | < 24W |

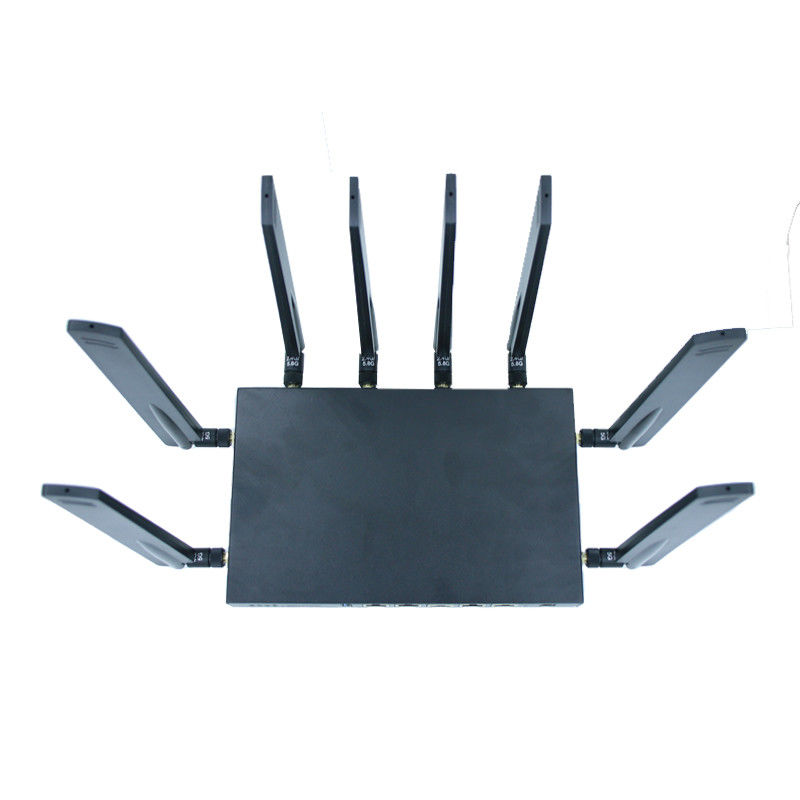

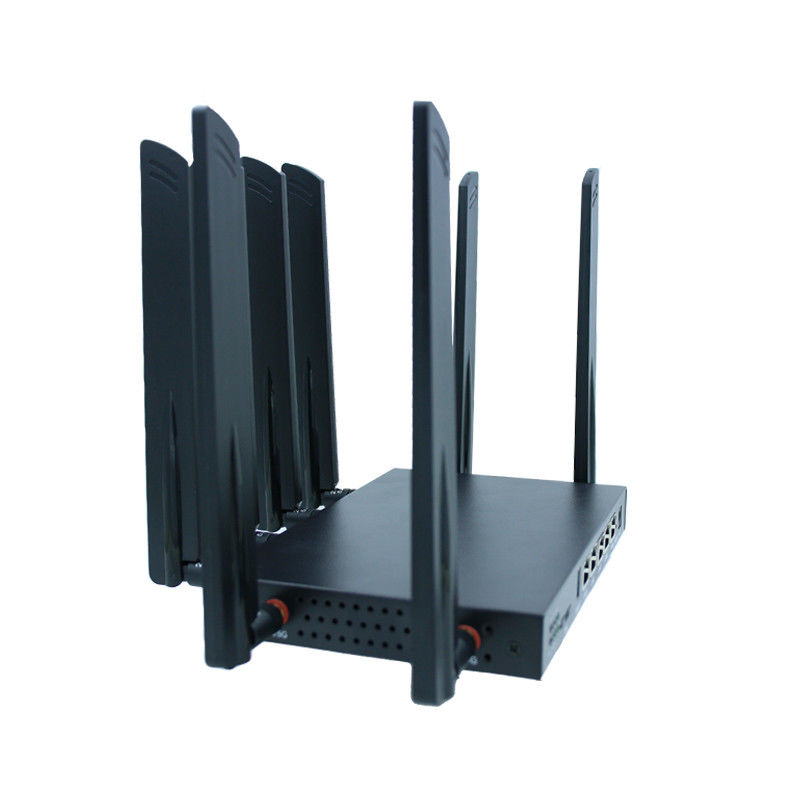

Details Images
