Industrial Openwrt 5g Wireless Router 1200Mbps Dual Band With GPS Function

Industrial Openwrt 5g Wireless Router 1200Mbps Dual Band With GPS Function

  • High Light

    GPS Function 5g Wireless Router

    ,

    Industrial Openwrt 5g Wireless Router

  • Wireless Speed
    2.4GHz 300Mbps + 5GHz 867Mbps
  • Antenna
    4* 5dBi Antennas
  • WIFI
    802.11 A/b/g/n/ac
  • Interface
    2 LAN /1 WAN
  • Flash
    16MB SPI
  • RAM
    DDR3 Memory 256MB
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    WS1209
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    32*21*6 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

Industrial Openwrt 5g Wireless Router 1200Mbps Dual Band With GPS Function

1200Mbps Dual Band 5g Industrial Openwrt Router GPS Function 5g Wireless Router



Product Description

  WS1209-5G is a 5G/4G+WiFi dual band 1200M industrial grade vehicle router, which supports three gigabit Ethernet communications, WIFI LAN (802.11 b/g/n/a/ac) communications and WAN 4G/5G wireless communication functions. The device is loaded with WAN communications, WIFI LAN transmission security certification, 5G/4G/3G system watchdog and other functions, realizing seamless connection between WLAN and wireless WAN, automatic redial when disconnected, and providing users with high-speed Safe and reliable mobile broadband service;
  The equipment adopts metal shell, special vehicle anti-interference design, good anti-interference performance, and safe anti-theft frame. The on-board special power supply design is adopted to support the on-board 12V and 36V power supply systems, which can effectively prevent the damage of the on-board power supply fluctuation to the equipment. It is applied to the WIFI wireless Internet access of various mobile vehicles, such as bus WIFI, long-distance bus WIFI, bullet train WIFI and taxi WIFI. At the same time, the equipment is also widely used in the WIFI coverage of scenic spots and other public places.



Product characteristics

  • Comply with 802.11b/g/n/a/ac.
  • Wireless transmission power: 802.11b 18dBm ± 2dBm, 802.11g 15dBm ± 2dBm, 802.11n 15dBm ± 2dBm 802.11a 20dBm±2dBm 802.11ac 20dBm±2dBm.
  • Three 10/1000 Mbps adaptive Ethernet interfaces are provided to support automatic rollover (Auto MDI/MDIX).
  • One USB2.0 data interface.
  • One MICRO SD (TF) card interface (FAT32 format 16G read-write, over 16G only support read; NTFS format 16G read-write, over 16G only support read; EXT4 format 128G read-write).
  • One PCI-E 4G module interface and one M2 5G module interface.
  • Support 5G/4G/3G watchdog software function, and automatically redial when the network is disconnected.
  • Through external USB interface.
  • Support GPS function (depending on 5G4G module)
  • Support one button RESET function
  • Support 12V and 36V system of automobile power supply, with minimum working voltage of 9V and maximum working voltage of 36V. It can withstand a surge voltage of 174V with a duration of 150ms at most, meeting 5a and 5b standards for on-board protection.
  • Support multiple encryption methods to ensure the safe transmission of data
  • Rich software management settings.
  • Support openwrt firmware, customize firmware development, and provide SDK technical support.

Specification



WS1209-5G Hardware Specifications
Hardware Specifications

MT7621A Dual Core 880MHZ

DDR3 memory 256MB

SPI FLASH 16MB

4G 5G Modem 4G or 5G modules can be selected, and the frequency band can be selected,Support Cat4/6/12/16/20
Antenna 4 x 5dbi high gain omni-directional 4G5G antennas
Interface

1*10/100M/1000M WAN port with automatic MDI/MDIX

2*10/100M/1000M LAN ports, auto MDI/MDIX or 2PCS LAN can be selected.

1*USB 2.0 port

1*PCI-E

1*M.2

1*SIM card

1*SD card

1*4PIN Power interface

LED Power/SYS/USB/2.4G/5.8G/4G5G/USB
Button 1 Reset button
Power adapter 9V-36V Vehicle wide voltage
Maximum power consumption < 24W
Accessories and Packaging

Power cord

Super Category 5 network cable *1PCS

Antenna*6PCS



Details Images

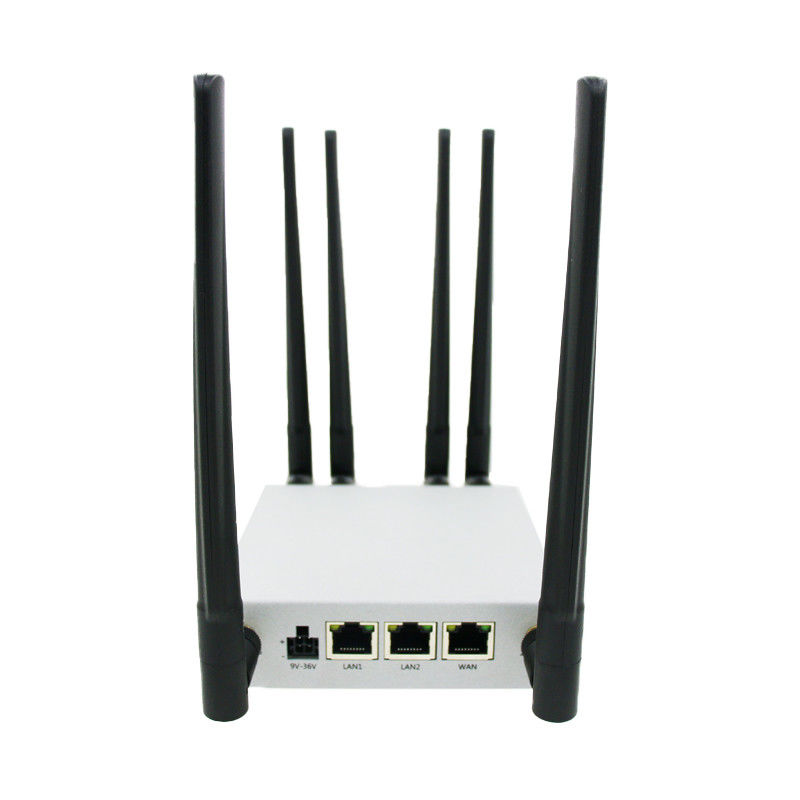

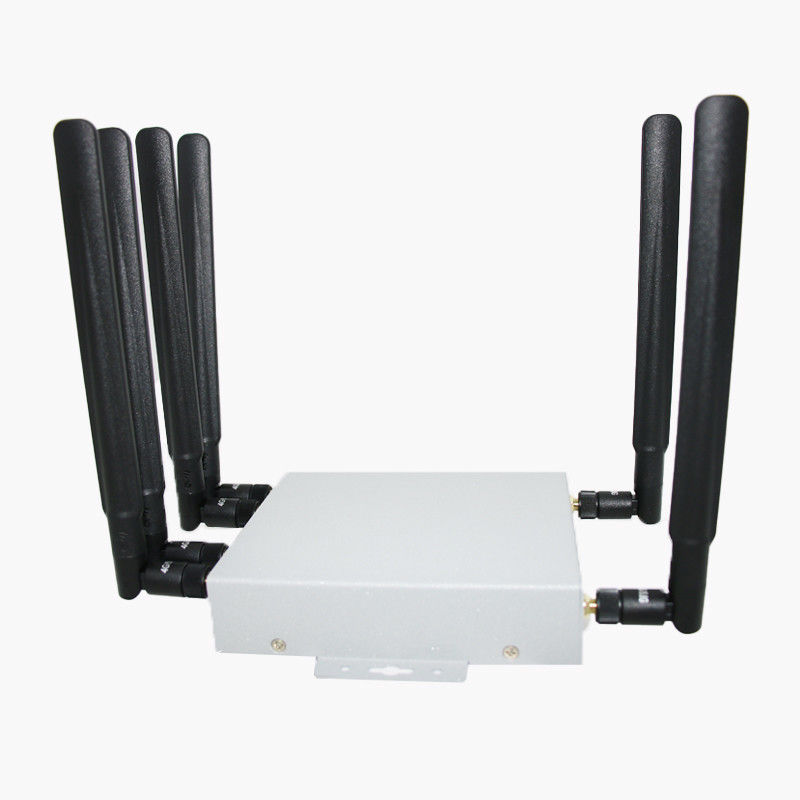

Industrial Openwrt 5g Wireless Router 1200Mbps Dual Band With GPS Function 0Industrial Openwrt 5g Wireless Router 1200Mbps Dual Band With GPS Function 1Industrial Openwrt 5g Wireless Router 1200Mbps Dual Band With GPS Function 2Industrial Openwrt 5g Wireless Router 1200Mbps Dual Band With GPS Function 3Industrial Openwrt 5g Wireless Router 1200Mbps Dual Band With GPS Function 4
