4G Lte Wireless Router DC 12V Power Supply 4g Wifi Router With SIM Card
Product Description
Adopting a new generation of wireless technology solutions, stable performance, more rich functions, can bring more experience to users. 2.4G wireless transmission rate is 300mbps. It provides one mini PCI interface and one SIM card interface, which has better function expansibility. The mini PCIe interface can load 3G and 4G modules according to customers' requirements, and can access the Internet through SIM card dial-up.
bands Situation For 3G or 4G modules, different carriers in different countries have different bands and frequencies. Please tell me the bands or frequencies. Then we can choose the right 3G or 4G modules
| Hardware specifications | |
| The main chip | QCA9531-BL3A |
| Memory | DDR2 1GB |
| Flash | SPI 128MB |
| Protocol standards | IEEE8021.1/802.11g/802.11n/802.3/802.3u |
| Wireless rate | 2.4G 300Mbps |
| The working band | 2.4G Hertz |
|
Wireless transmit power |
802.111 billion barrels ± 2dBm 802.11g15dBm±2dBm 802.11n14dBm±2dBm |
|
Accept sensitivity |
8021.1n: -83dBm@8% 802.11g: -72dBm@10% 802.11n: -68dBm@10% |
| Antenna | Two non-removable 5dbi high-gain completely antennas, the module antenna can be based on customer requirements |
|
Interface |
1 10/100M adaptive WAN port with led light for auto flip (AutoMDI/MDIX). 4 10/100M adaptive LAN port with LED for auto flip (AutoMDI/MDIX). 1 PCI-E interface; |
| Lead | In turn, the power LED, 4G signal 1,WIFI led,WAN port indicator,LAN gate led, |
| Button | 1 Reset button |
| The power adapter | 12V/1A |
| Maximum power consumption of the product | <3W |
| Other | |
|
The working environment |
Operatinge temperature:-40C 85C;
storage temperature:-10C to 80C; Working humidity:10% to 90% RH does not condense Storage humidity:5% to 90% RH does not condense |
| Accessories | Power adapter 1PCS,network length 1 m 1PCS |
| Size | 172 mm x 98 mm x 38 mm x Sigsi |
| Net | 0.45 kg |
| Packaging information | Black iron shell |

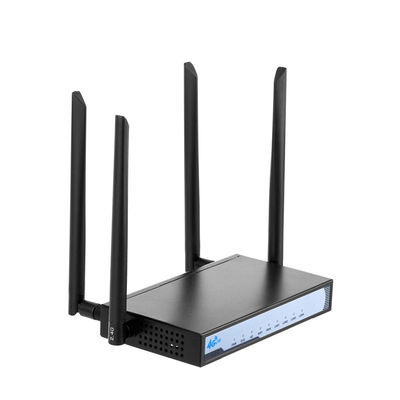

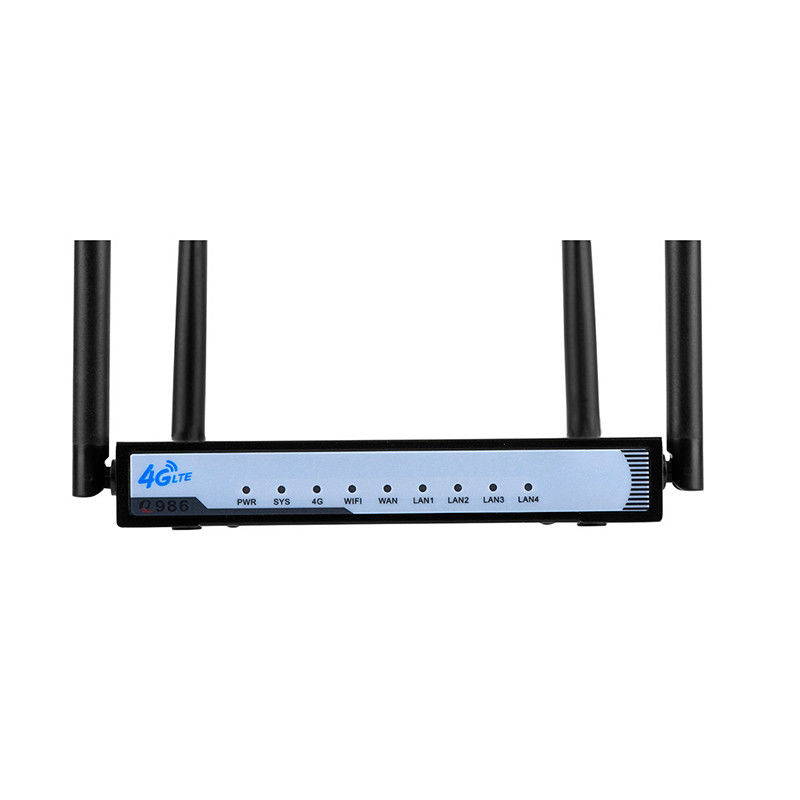

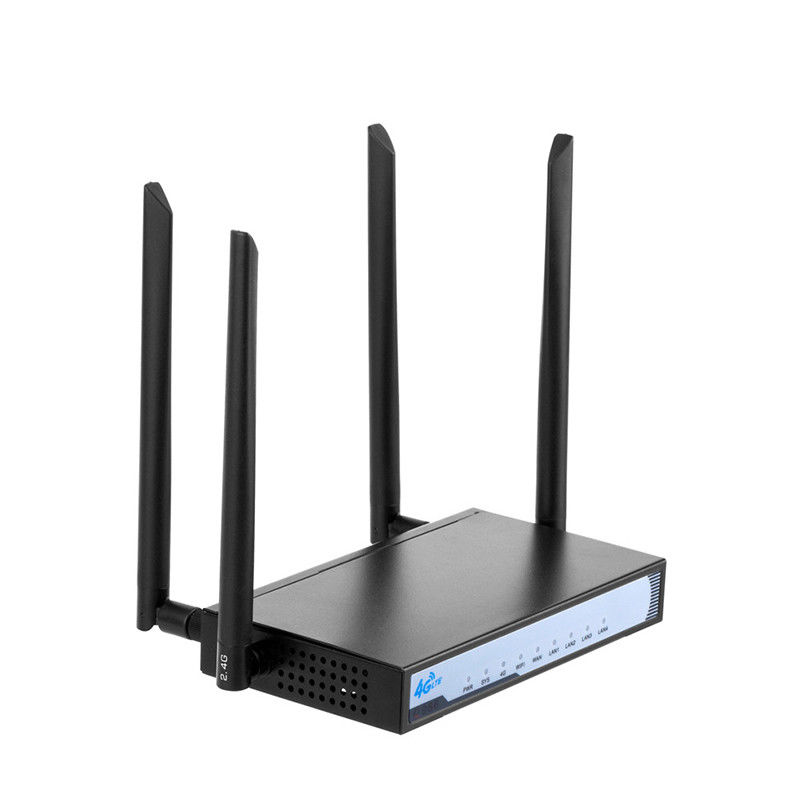

Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Our products are sold all over the world, you can rest assured.
