WS300N Routers Industrial 4g WAN/LAN Port Wifi 4g Router RS485 Serial Port
Product Description
Overview
WS300N is a single serial port 4G industrial router that can provide support for serial to WiFi, serial to wired, serial to 4G, with one RS485 serial port; 2.4GHz WiFi, wireless rate up to 300Mbps, with high-quality WiFi suction cup antenna, wireless performance more stable; dual 4G large suction cup antenna access, more powerful signal; rich device Indicator lights, serial transceiver indicators, convenient debugging, equipment operation check; power input support 12V-48V, wide voltage input; two 100 megabit network ports, WAN/LAN function adaptive; support rail snap installation method; mature hardware and software watchdog mechanism, real-time monitoring of network connection status.
The device has multiple network access methods, supporting 4G Internet access, APN dedicated card, IOT card, PPPoE dial-up, DHCP wired dynamic allocation, static IP wired connection, WiFi wireless relay access, suitable for more application scenarios.
RS485 serial port supports transparent transmission or Modbus RTU protocol to TCP protocol conversion, MQTT transmission, multi-host multi-slave mode, rich application features, one-to-one equipment installation and debugging technical support.
Convenient web management background, cell phone tablet can also be easily set. Rich application functions, small size, support rail mounting, bracket mounting, suitable for more engineering application scenarios.
Key Features
Specification
| Basic Information | |
| Product Name | 4G Industrial Router |
| Product Model | WS300N |

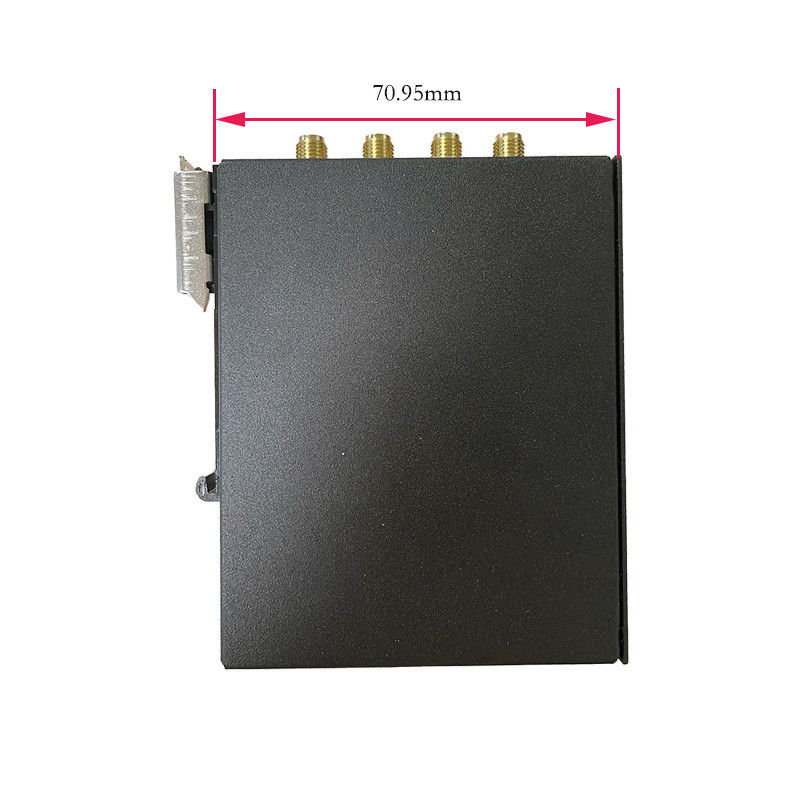

| Outer size of product | 88.25mm×28.10mm×70.95mm |
| Housing material | Metal Case |
| Working temperature and humidity | -40~75℃ 5%~90%RH no condensation |
| Storage temperature and humidity | -45~80℃ 5%~90%RH No condensation |
| Installation method | Bracket mounting, rail snap mounting |
| Equipment setting management | Web browser management background |
| Shipping List | 1×WS300N device host 2×2.4GHz WiFi suction cup antenna 2×4G suction cup antenna 1×Power adapter 1×5.08 3P plug |
| Hardware Specifications | |
| Device mains frequency | 580MHz |
| Interface | 1×power interface 1×RS485 interface 2×RJ45 network port 2×2.4GHz WiFi antenna interface 2×4G antenna interface |
| Pushbuttons | RESET button Long press to restore factory settings |
| Power input | DC 12V~48V input Power interface standard: 5.08 pitch 2P terminal |
| RS485 interface | Interface standard: 5.08 pitch 3P terminal Optocoupler isolation Baud rate: 1200 2400 4800 9600 19200 38400 57600 115200 |
| RJ45 network port | 10/100Mbps adaptive 1 WAN port or LAN port (switchable) 1 LAN port |
| Wireless specification | 2.4GHz WiFi Wireless Standard: IEEE802.11b/g/n Wireless rate: 300Mbps |
| 4G standard China version |
LTE-FDD:B1/B3/B5/B8 LTE-TDD:B34/B38/B39/B40/B41 WCDMA:B1/B5/B8 GSM/EDGE:B3/B8 Max download rate 150Mbps Max upload rate 50Mbps |
| 4G standard Europe |
LTE-FDD:B1/B3/B7/B8/B20/B28 LTE-TDD:B38/B40/B41 WCDMA:B1/B8 GSM/EDGE:B3/B8 Max download rate 150Mbps Max upload rate 50Mbps |
| 4G standard Latin America |
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66 LTE-TDD:B40 WCDMA:B1/B2/B4/B5/B8 GSM/EDGE:B2/B3/B5/B8 Maximum download rate 150Mbps Maximum upload rate 50Mbps |
| Indicator Light | 1×Power indicator Power 1×Status indicator Status 1×4G indicator 1×WiFi indicator 1×RS485 serial transmit indicator TX1 1×RS485 serial receive indicator RX1 |
| Hardware Protection | Power anti-reverse connection anti-surge ESD protection anti-static Serial port optocoupler isolation |
| Software Specifications | |
| Management IP | 192.168.169.1 (default factory IP, can be modified by yourself) |
| Username/Password | Username:admin Password:admin |
| WiFi Name/Password | WiFi name: WS300N-2.4GHz-XXXXXX WiFi password: 12345678 |
| Network Access Method | 4G Internet access (support ordinary SIM card, APN special card, IOT card), PPPoE access, wired DHCP dynamic acquisition, wired static IP access, wireless 2.4GHz relay |
| Intranet Settings | IP address modification, subnet mask setting, DHCP server setting |
| Firewall | Firewall on/off, port forwarding |
| WiFi Settings | WiFi name modification, WiFi channel selection, WiFi password modification, WiFi encryption mode selection |
| System Management | Management interface language selection, device restore factory settings, device firmware upgrade, device reboot |
| MQTT TCP application | Function enable/disable, TCP mode selection, TCP IP address, MQTT remote server address and other settings |
| RS485 serial port settings | Serial port pass-through TCP client/server serial port pass-through MQTT client Modbus RTU to TCP client/server |

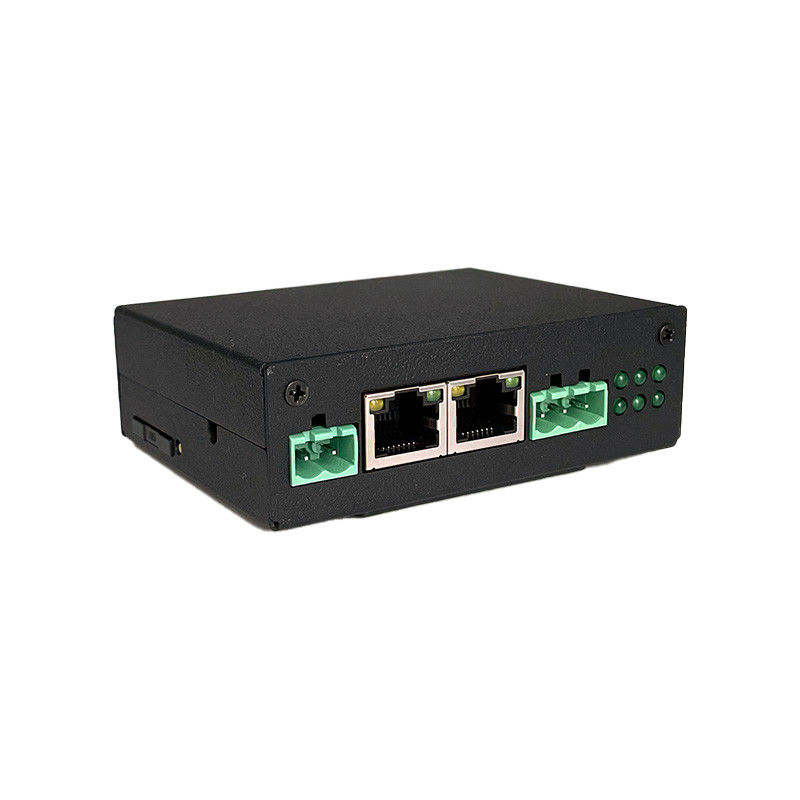

Products Pictures
