WS1315 300Mbps Industial 4g Wifi Router WAN/LAN Port 4g Router With SIM Slot
Product Description
The uses the latest wireless solution, performance is better and more functions. Stable wireless signal, stronger scalability, 2.4GHz up to 300Mbps. Also support 3G,4G also support watchdog feature. 1 Micro SD slot .
Specification
| Hardware | ||
| Main Chipset | QCA 9531 chipset | |
| RAM | DDR2 128MB | |
| SPI FLASH | 16MB | |
| Protocol | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE802.11ac , IEEE802.11a IEEE 802.3, IEEE 802.3u |
|
| RT Power |
802.11b 18dBm±2dBm; 802.11g 15dBm±2dBm; 802.11n 15dBm±2dBm; 802.11ac depends on the 11ac module; |
|
| Reception Sensitivity |
802.11b: -83dBm@10% PER 802.11g: -74dBm@10% PER 802.11n: -68dBm@10% PER 802.11ac: depends on the 11ac module; |
|
| Work Channel | 2.4GHz choose :1-13 | |
| Work Frequency | 2.4GHz, | |
| 4G Bands |
LTE FDD:B1/B3/B8/B18/B19/B26 LTE TDD:B41 WCDMA:B1/B6/B8/B19 |
|
| Antenna | 2 removable 5dBi antenna | |
| Interface |
1 PCI-E slot 1 SIM card slot 1 10/100M WAN port(Auto MDI/MDIX) |
|
| LED | Power,PCIE module ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4 | |
| Button | Reset/WPS | |
| Max Power consumption | < 12W | |
| Dimension(L*W*H) | 141*85*26MM | |
| Software | ||
| WAN Type | PPPoE,Dynamic IP, Static IP | |
| Work Mode |
AP; Router; |
|
| DHCP | Server, Client, DHCP Client List, Address Reservation | |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ | |
| Firewall Security |
Dos, SPI Firewall IP Address Filter/MAC Address Filter/ Domain Filter IP and MAC Address Binding |
|
| DDNS | Support | |
| VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) | |
| Band Control | Support | |
| Static Router | Support | |
| System Log | Support | |
| Other Function | Mac clone NTP Synchronize Web firmware upgrade |
|
| Others | ||
| Work Environments |
Working temperature: -10℃ to 80℃; Storage temperature: -40℃ 85℃; Working humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing |
|
| Adapter | 12V 1A | |
| Authentication | FCC & CE certifications | |

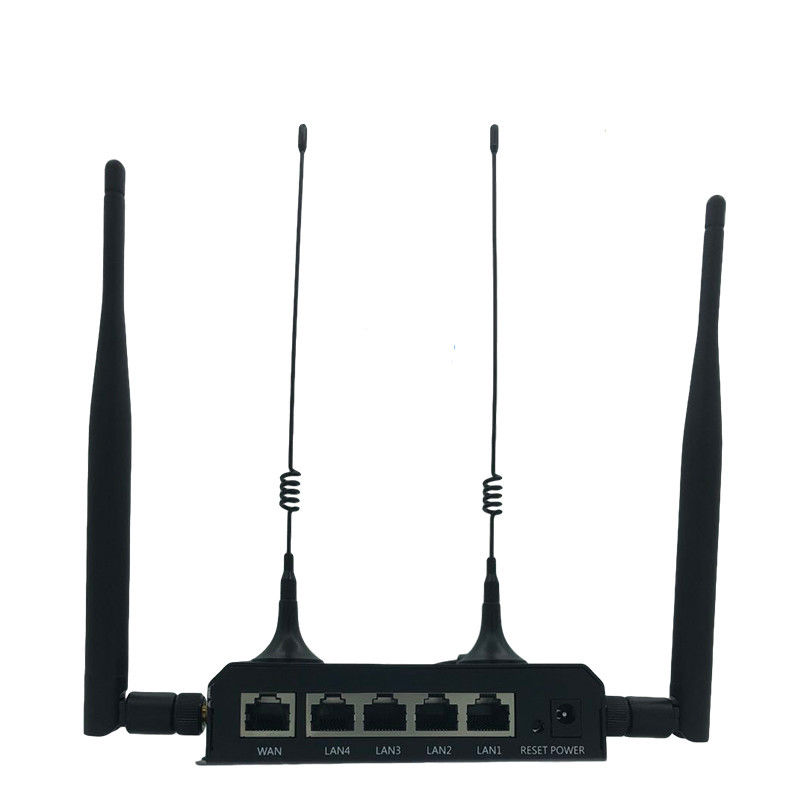

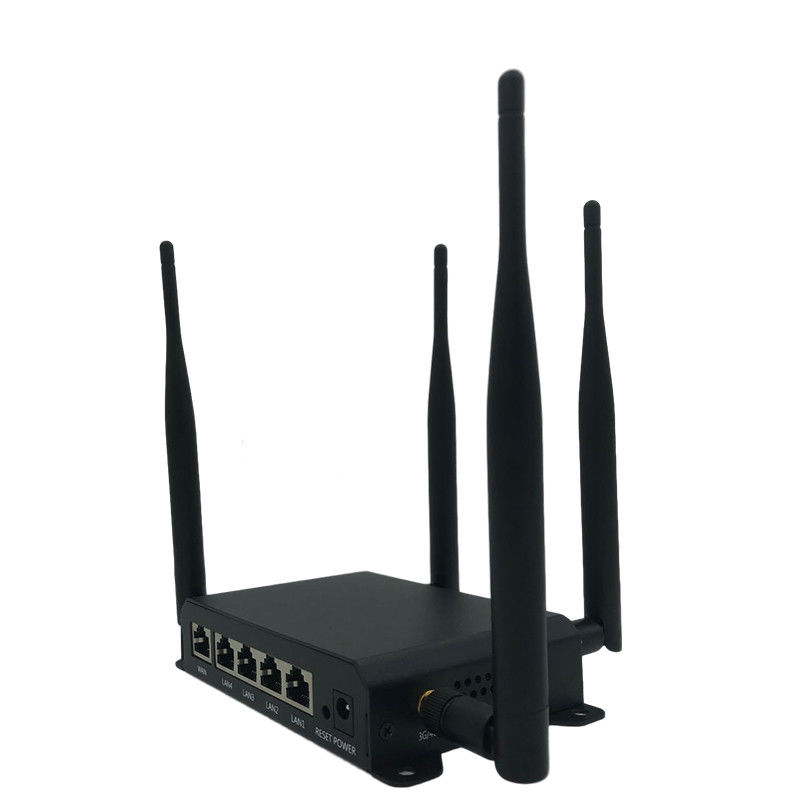

Products Pictures
