300Mbps 4g Cpe Router LAN Port Sim Card 4g Lte Router For PC/Phone
Product Description
300Mbps Wireles Router 150Mbps 4G lte high speed LTE(Cat 4): DL150Mbps;UL50Mbps
Stream and share smoothly movie, music, photos with your families and friends at the same time. no need to connect the broadband ,there is 4G ,there is WiFi , just plugs the 4G SIM card and play it is Easy to connect and easy to carry in hand Sharing customer to 32 WiFi users,All you need to do is inserting the SIM card, then you will enjoy the WiFi with your friends with this portable 4G LTE router. Bridge WiFi and share network with your families and friends securely in the hotel or other public places. also good for outside camera Project.
SIM Card Mode:
4G wireless mode(Default):Choose 3G/4G Wireless modem mode as default, pulg in to standard SIM Card, CPE will identify 3G/4G automatically.for some SIM Card should be update APN.
4G To LAN: Insert 3G/4G SIM card to the Router , connect the LAN cable the router to PC/Desktop Wired Mode
Standard wireless modem mode:
Static online mode/Dynamic Internet access/PPPoE online modem
Mainly applicable to most Asia Europe Africa Middle East and South America Oceania Countries
Power Supply 12V 2A DC Supply
Main Technology Parameters
Specification
| DEVICE | WS7628C06 | |||||
| Hardware Platform | Type | 4G WIFI CPE | ||||
| MTK Chipset | MT7628NN | |||||
| Memory | 8MB/64MB | |||||
| 4G Bands | FDD:B1/3/5/8 TDD:B38/39/40/41 WCDMA:B1/5/8 TDSCDMA:B34/39 CDMA&EVDO BC0 GSM:850/900/1800/1900 | |||||
| Wi-Fi | IEEE 802.11b/g/n | |||||
| Encryption | WPA-PSK/WPA2-PSK Mixed mode | |||||
| Wi-Fi Transfer rate | up to 300Mbps | |||||
| Software Platform | System | OS System | ||||
| interface | LED | SYS,NET,WIFI,ETH1,SIGLR1 | ||||
| RJ-45 | 1WAN/LAN 2 LAN Port | |||||
| antenna | Built in 5dB patch antenna and 2 external 4G 5dB omnidirectional antennas | |||||
| Power | 12V1A | |||||
| SIM | MICRO SIM*1 | |||||
| KEY | RESET | |||||
| Appearance | Dimension (L × W × H)mm | 200*145*45MM | ||||
| Weight | 300g | |||||

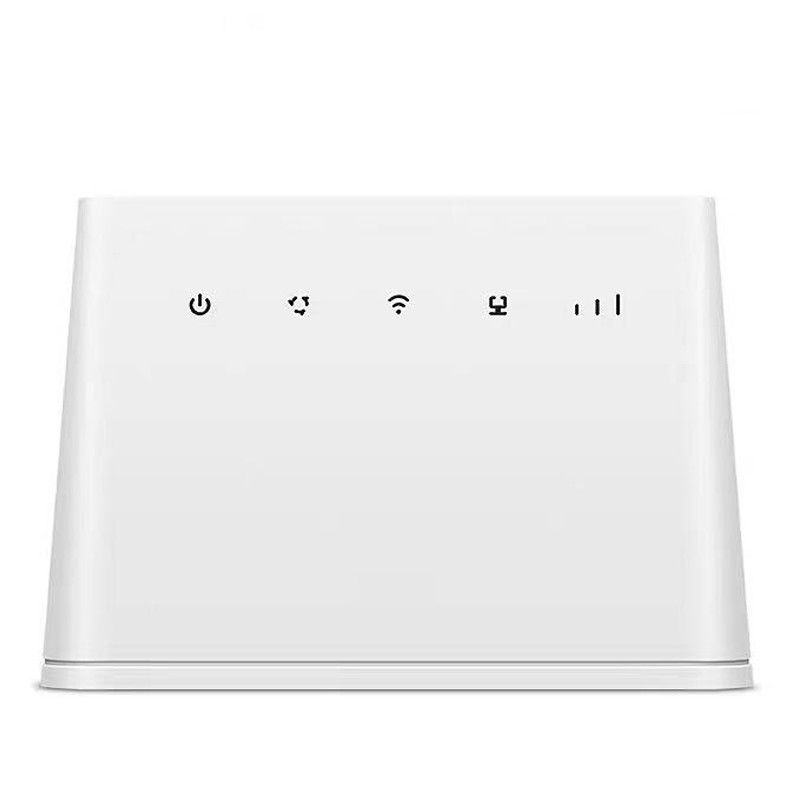

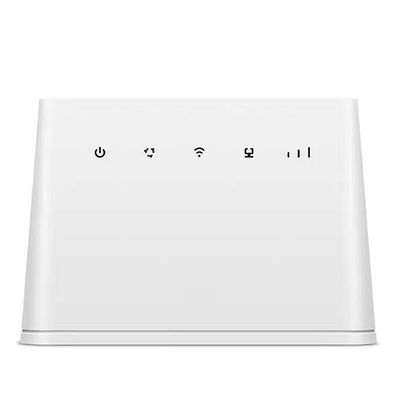

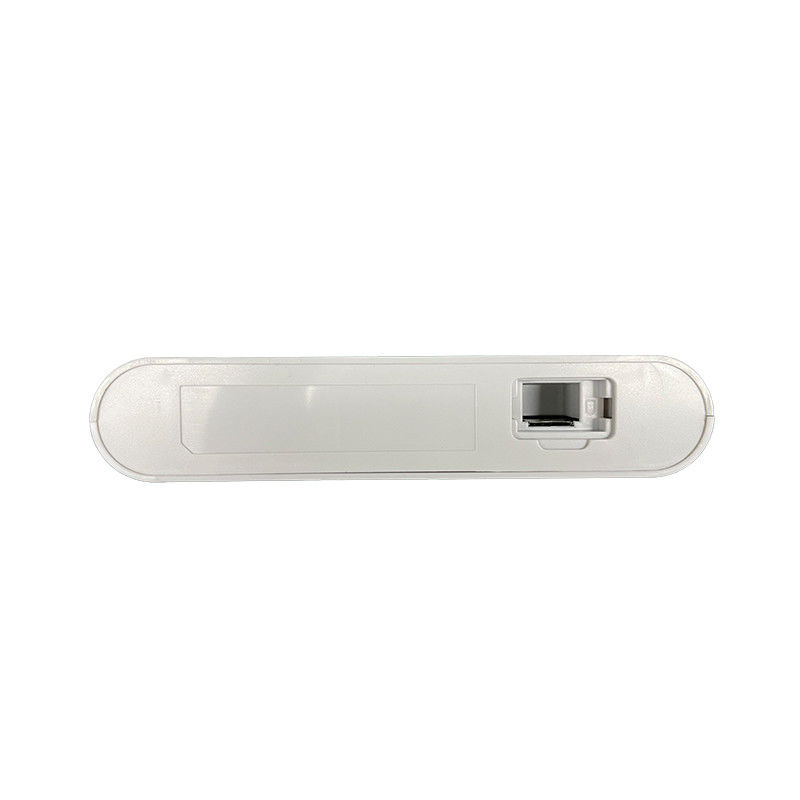

Product Image
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Our products are sold all over the world, you can rest assured.
