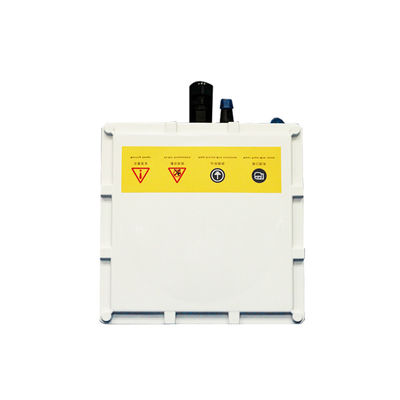

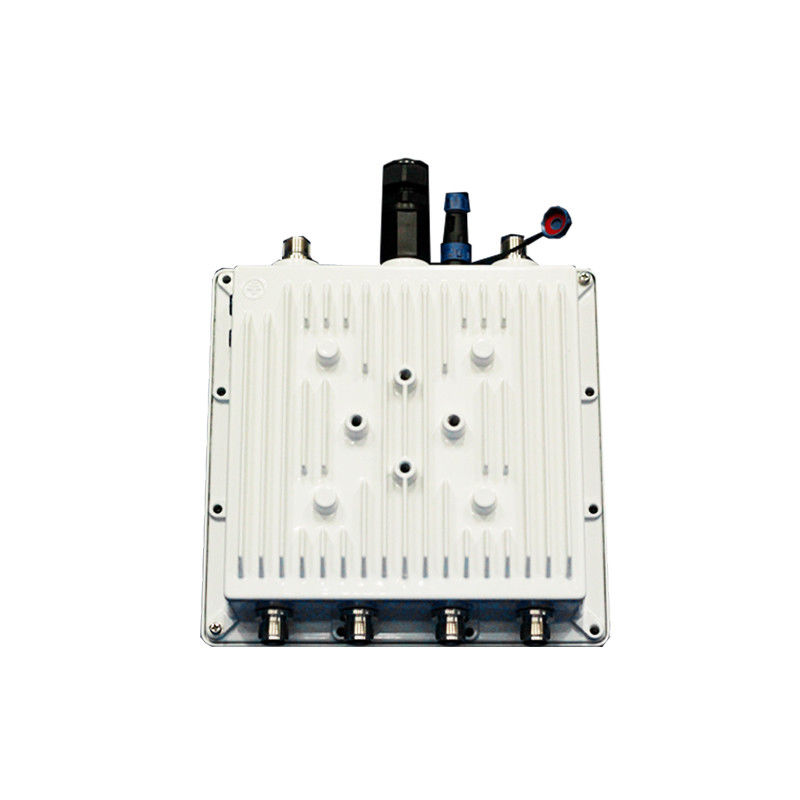

Gigabit Dual Band 5G Outdoor Router IP66 Waterproof Wifi Router With Sim Card

Gigabit Dual Band 5g Router Sim Card IP66 Waterproof Outdoor Router Wifi 5g

Product Description

  The M12 outdoor 5G gateway base station is based on our independent technology research and development. It belongs to the hardware product category of distributed self-organizing network system solutions. It has a 5G industrial host with high speed, large connection, wide coverage, low latency, and high reliability. This product supports 5G, Ethernet, WiFi, wireless spread spectrum communication and other network access; at the same time, it has strong real-time data edge computing capabilities, open system design, and supports secondary development; it adopts chips, devices, housing design, etc. Full industrial-grade housing waterproof design, with waterproof casing protection grade up to IP66, supports ceiling, wall, pole-mounted installation, can be adapted to a variety of industrial sites such as indoor and outdoor, widely used in smart factories, smart medical, unmanned vehicles, Smart cities and other fields.

Shell characteristics:

• All-metal aluminum alloy is integrally formed, explosion-proof, waterproof, and corrosion-proof. The waterproof level supports IP66 waterproof level
• 6 external N-type industrial-grade WiFi antenna interfaces, adapt to different antenna types according to the needs of the scene(5.8G, 2.4G standard configuration 7DBI omnidirectional gain antenna,Optional 14DBI directional antenna)
• 4 external SMA industrial grade 5G antenna ports, adapt to different antenna types according to the needs of the scene(5G/4G standard configuration 5DBI omnidirectional gain antenna)
• The power, internet, 4G/5G instructions are clear at a glance.
• External waterproof grade Gigabit Ethernet LAN port.

WiFi6 Datasheet

WiFi 6(802.11ax)

• Working Radio: #1: 600Mbps @ 2.4GHz; #2: 2475Mbps @ 5.1-5.8GHz
• Coding Technology:1024-QAM / OFDMA
• Peak Connections:>500+ Clients
• Wi-Fi Standard Conformance:WiFi6 and 802.11ac / 802.11n backward

Data Switching

• Mobile 4G/5G Connection (Support APN)
• Giga Ethernet Connection
• MESH:MESH+ hybird
• 2.4G/5Ghz WiFi
• Advanced Firewall
• MAC Filter
• WiFi Sercurity
• VPN Passthrough and VPN Client (L2TP PPTP)
• IPV4/IPV6
• WEB / APP Mangement
• Firmware upgrade

Hardware Specification

• CPU: IPQ8071A Quad-core CPU @ 1.0 GHz
• Memory:16MB + 256MB Flash + 2* 256MB DDR3
• Ethernet:1*2.5Gbps WAN,2*LAN 1Gbps
• 1* SIM Slot(Nano-SIM)
• Reset button
• LED Indicator : Internet, 4G Status, 5G Status, Power Status
• Power Consumption:<24W
• DC Power Supply: 12V/3A
• Working temperature:0℃~40℃, Storage temperature: -20℃~+70℃
• Humidity:5%~95%
• Dimensions:217X217X70MM

Specification

Details Images

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. Do your products meet our standards?

A: Yes, almost all our products have CE,ROHS,FCC,etc.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
