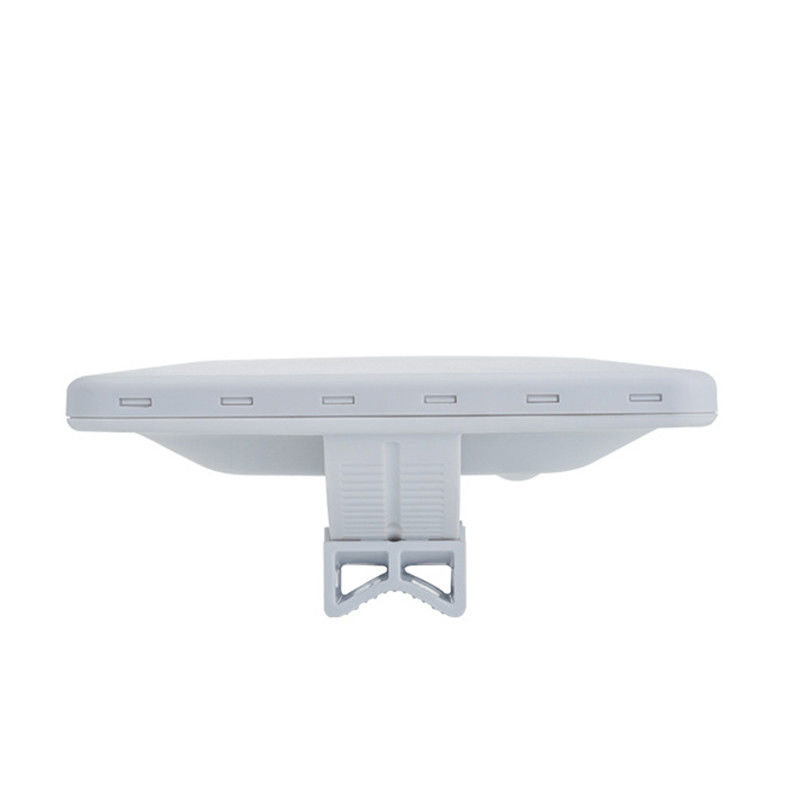

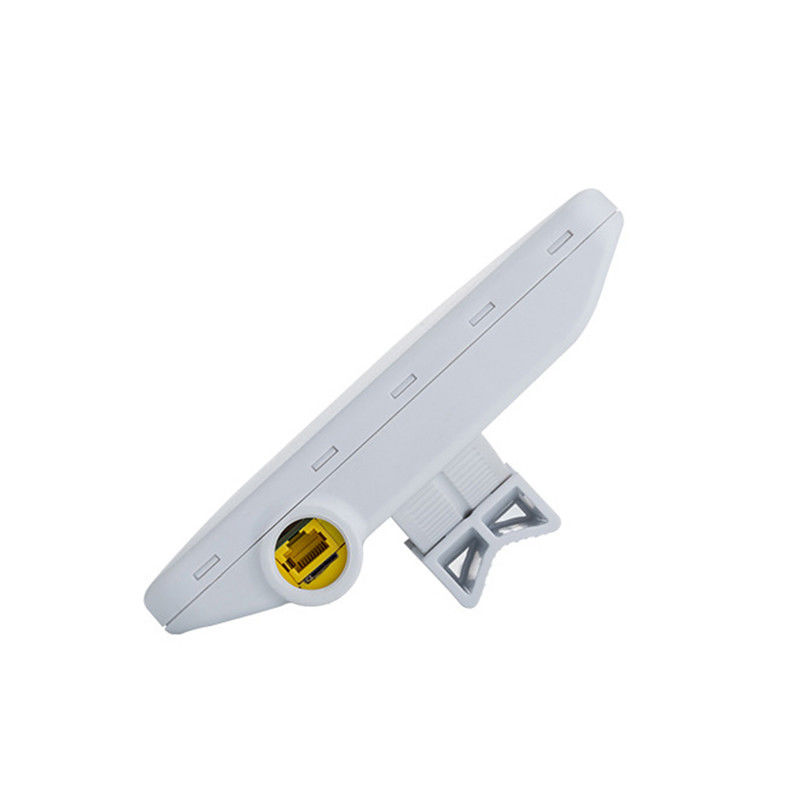

Outdoor Industrial 5g Wifi Router 1200Mbps 4G LTE Waterproof Wireless Hotspot
Specification
| Hardware | ||
| CPU | MTK MT7621AT | |
| Radio Chipset | MTK MT7612 + MTK MT7603 | |
| Memory | 16M ROM+128M RAM | |
| Antenna | Undetermined | |
| Interface | 1 * 10/100/1000M Auto MDI/MDIX RJ45 LAN port 1 * SIM Card Socket |
|
| Button | 1 * Reset | |
| LED | 1 *LAN,1*2.4G,1*5.8G, 1*4G,1*Power,1*Internet | |
| Power | POE:48V,802.11af | |
| RF parameter | ||
| Wireless Data Rate | 1167Mbps:2.4G(2T2R) 300Mbps+5G(2T2R) 867Mbps | |
| Frequency |
2.412 ~ 2.472 GHz 5.15 ~ 5.35 GHz,5.725 ~ 5.825 GHz |
|
| Wireless Standard | IEEE 802.11 a/b/g/n/ac | |
| 17dBm_802.11g_54Mbps(MAX)17dBm_802.11a_54Mbps(MAX) | ||
| RX sensitivity |
11n : -70dBm@10% PER 11a : -72dBm@10% PER |
|
| Software | ||
| Basic | Operation Mode | Router,AP,WISP,Repeater |
| ISP | 3G/4/5G,WAN | |
| DHCP | DHCP sever,Relay,Client List | |
| Vrtual Server | Port Forwarding,DMZ,UPnP | |
| Firewalls | IP/ MAC/URL Filter,Remote Control | |
| DDNS | Support | |
| QoS | IP/MAC | |
| Static Route | Support | |
| LOG | Support | |
| Others | QIG | Support |
| Network Switch | Support | |
| Network Detection | Support | |
| 5G Module | ||
| Frequency | FDD-NR :n1,n28 | |
| FDD-NR :n41,n78,n79 | ||
| FDD-LTE :Band 1,2,3,4,5,7,8, | ||
| FDD-LTE:Band 34,38,39,40,41 | ||
| WCDMA:Band 1,2,5,8 | ||
| Data Rate | NR Sub6 SA: 1.7Gbps/250 Mbps(DL/UL) | |
| NR Sub6 EN-DC: 1.8Gbps/200 Mbps(DL/UL) | ||
| WCDMA: 42Mbps/11 Mbps(DL/UL | ||
| LTE: 600Mbps/150 Mbps(DL/UL) | ||
Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Our products are sold all over the world, you can rest assured.
