1KM Long Range 5g Network Bridge Wireless 24V POE And 12V DC Power 450Mbps
Product Description

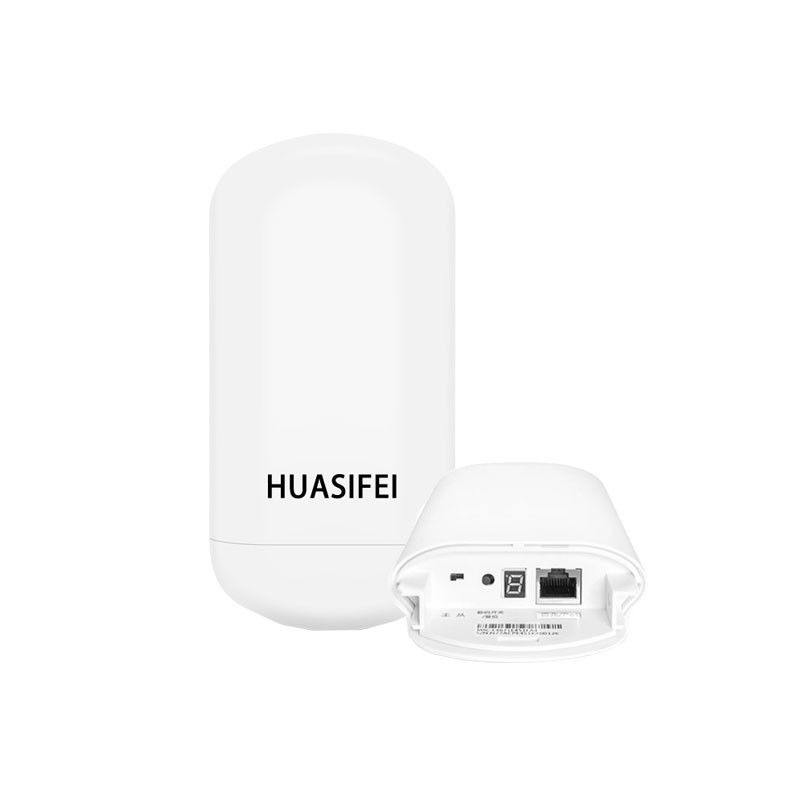

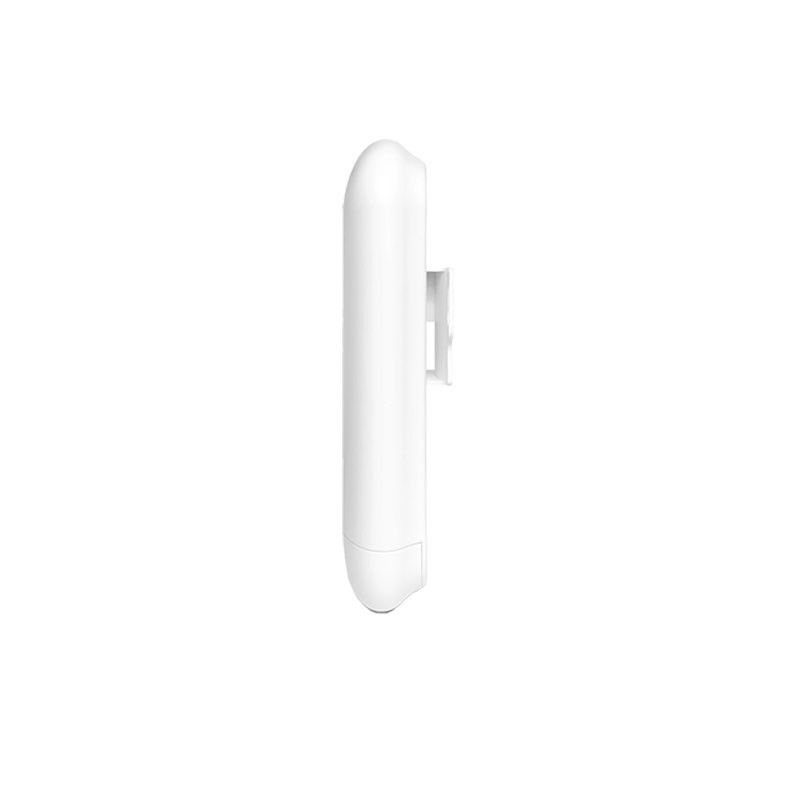

S451K is a high-performance enterprise-level outdoor network bridge product that works in the 5G frequency band and supports 802.11ac technology. Unique digital tube pairing technology, no need for computer configuration, easy to complete point-to-point, point-to-multipoint (within 8 points) device pairing. 100M network interface, 5G 802.11ac wireless processing speed up to 450Mbps. The power supply mode is flexible, supporting 24V PoE network cable power supply, and the network cable power supply distance can reach 50-70 meters (depending on the material of the network cable). It adopts an outdoor IP65 windproof, rainproof, dustproof, and sunscreen protection grade shell design, which can easily adapt to various harsh outdoor environments. Built-in 8dBi high-gain, wide-angle directional plate antenna, easy and quick to install. It has the characteristics of high performance, high gain, high receiving sensitivity, and high bandwidth, which greatly enhances the performance and stability of wireless transmission, and is widely used in medium and short distance video transmission and data transmission.
Hardware Product Features
Super cost-effective hardware configuration
Enterprise-level main control chip, industrial-level circuit design, supports IEEE802.11a/n/ac protocol, can provide 450Mbps wireless access speed and 10/100Mbps Ethernet switching processing speed. Excellent high and low temperature resistance design fully guarantees real-time, long-term, stable and efficient transmission of user network data in extreme environments, improving user experience
Powerful wireless transmission capability
The circuit design with high power and high receiving sensitivity, combined with high-gain directional plate antenna, greatly enhances the distance of wireless transmission and improves the performance and stability of wireless transmission
Software Features
Overview of the device overview at a glance
Log in to the device with a WEB browser to view the connection system status, bridge status, and interface status information in real time. The simple and clear interface allows users to know the working status of the device in real time
Fool-like quick setup & powerful wireless optimization
Users do not need to know too much wireless knowledge or professional knowledge, and can realize the pairing of point-to-point and point-to-multipoint (within 8 points) devices in a few simple steps. Simple settings can complete wireless optimization, easily improve link transmission quality and use effect
Specification
| Product parameters | |
| Hardware Configuration | |
| Model | S451K |
| Main chip | MTK7628KN+7610E 450Mbps High-performance enterprise chips |
| Main frequency | 580MHz MIPS® 24KEc™ CPU |
| Wireless technology | 5G:450M 802.11a/n/ac 1T1R technology |
| Memory | 8MB DDR RAM |
| Flash | 1MB |
| Network Interface |
WAN:1*10/100Mbps Adaptive RJ45 network interface LAN:1*10/100Mbps Adaptive RJ45 network interface |
| power switch button |
1*digital switch/reset button, short press the digital tube display value plus one, long press for 5 seconds to restore factory settings Master-slave DIP switch: master is access point mode, slave is client mode |
| Indicator light | Signal SIG indicator light, ETH network interface status indicator light, power indicator light, system indicator light, digital tube indicator light |
| Power supply |
24V 1A non-standard PoE power supply; DC 12V 1A, power consumption <10W |
| Working environment |
Temperature: -30℃~+55℃ (working), -40℃~+70℃ (storage) Humidity (non-condensing): 10% to 90% (working), 5% to 95% (storage) |
| Product Size | 180mm*90mm*40mm |
| product weight | N/A |
| Antenna | Built-in high-gain 8dBi directional plate antenna (horizontal wave half-angle 65°, vertical wave half-angle 30°) |
