300Mbps Point To Point 2.4g Wireless Network Bridge 1km Long Range Wifi Bridge
Product Description
CPE46B-2.4G is a 300Mbps PoE output outdoor wireless WiFi bridge support 1KM 2.4GHz long-range WiFi extender with LED indicator meet with multiple wireless transmission scheme demands. Outdoor wireless CPE bridge waterproof, dustproof, lighting protection. Operating temperature: -20~+55°C/storage temp: -40℃-85℃ Multi-Mode wireless wifi bridge with an ethernet port and LED indicator. Support wireless AP, Point to Point Connection s with 1-2KM distance
Wireless bridge LED indicator can show signal strength, easy to set via computer. Setting CPE master mode as AP mode, slave mode as Client mode. Click " Scan" in the settings of the slave mode, scan to the CPE SSID of the master mode to be connected, and then make the connection settings. It transmits via wireless signal, reducing the trouble of wiring cable.
Widely Applications,Any place required security monitoring by cameras Point to Point/Multi-Point connection Client Bridge for Elevator Monitor, surveillance networks. Outdoor CPE Connect an IP Surveillance Camera to a secondary port and utilize its long-range connectivity to send surveillance video back through the wireless network for extended surveillance coverage.
Specification
Main Chipset | CPU:AR9331 RF:AR9331 | |||
Standards Comply |
IEEE802.3u MDI/MDIX IEEE802.11b/g/n |
|||
DDR2 | 32MB(64MB optional) | |||
FLASH | 8MB (16MB optional) | |||
Power Supply | 24V passive POE support on 2 LAN ports | |||
CPU Frequency | 400MHz | |||
Antenna | 12dBi directional | |||
Ethernet Ports | 2 10/100Mbps Ports ( with Auto MDI / MDIX) | |||
Reset Button | Restore to factory default | |||

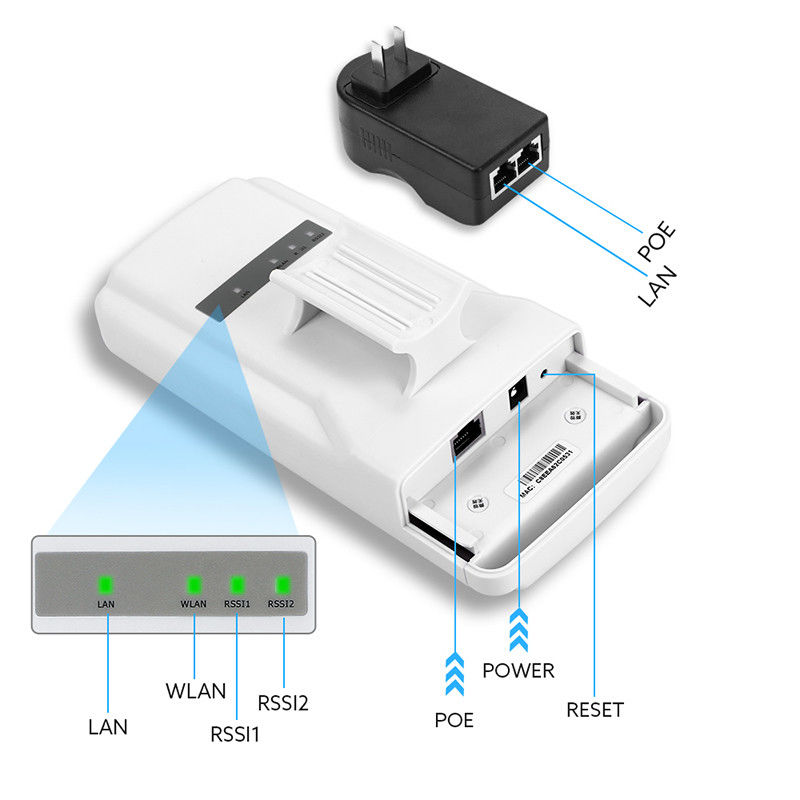

LED | Power, WAN,LAN, WLAN,RSSI1,RSSI2 | |||
Data Transfer Rate |
11b: 11M, 5.5M, 2M, 1Mbps 11g: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps 11N:6.5M, 13M, 13.5M,19.5M, 26M,27M, 39M, 40.5M,52M, 54M,58.5M, 65M,81M,108M,121.5M,135M,150Mbps |
|||
Transmission Type | DSSS | |||
Modulation Type | OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK | |||
RF Frequency range | 2412 GHz ~ 2484 GHz (Channel1 ~13) | |||
Power consumption | <5W | |||
RF Power | 100mW | |||
Sensitivity |
IEEE 802.11b 1Mbps=-95dBm 11Mbps=-89dBm |
IEEE 802.11g 6Mbps=-92dBm 54Mbps=-73dBm |
IEEE 802.11n HT 20 MCS 0=-86dBm MCS 7=-68dBm HT 40 MCS 0=-83dBm MCS 7=-65dBm |
|
Dimensions | 110mmx69mm | |||
Weight | =300g | |||
Environmental Requirement | ||||
Operation Temperature | -20~+55°C | |||
Operation Humidity (non-condensation) |
10%~90% RH | |||
Storage Temperature | -40~+85°C | |||
Storage Humidity (non-condensation) |
10%~90% RH | |||
Environmental Standard | RoHS Compliance |

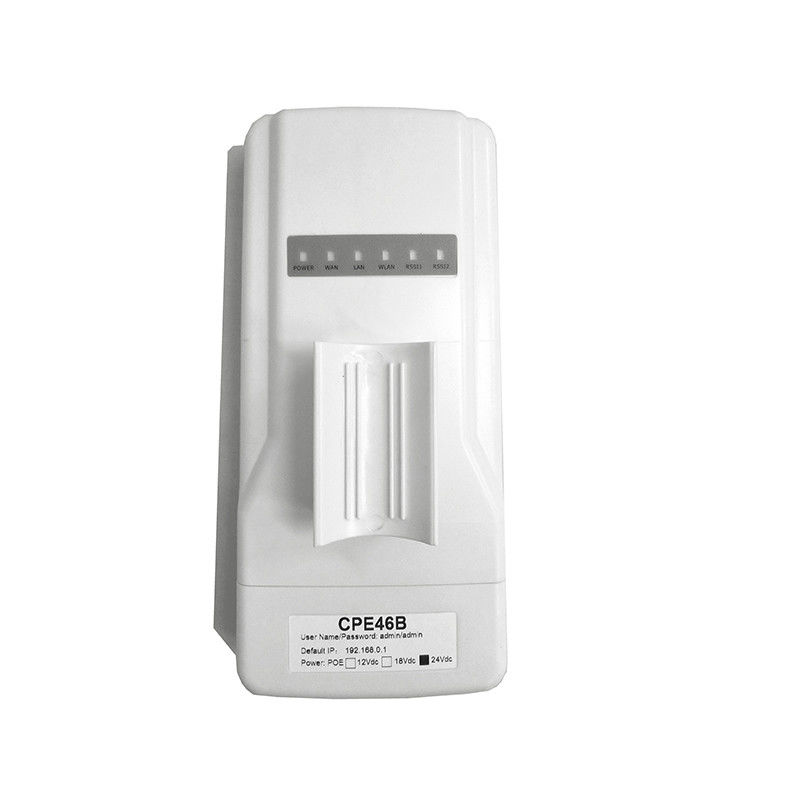

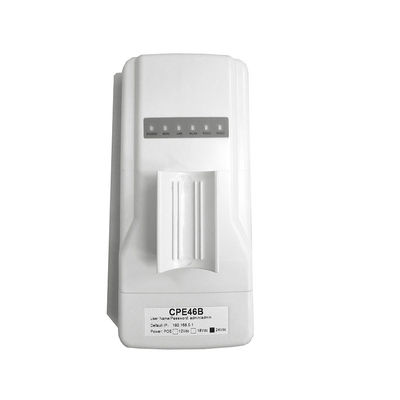

Detailed image
