3KM Long Range 5.8g 300Mbps 24V POE Point To Point Wireless Network Bridge
Product Description
CPE206 is an high power industrial 5G outdoor CPE with the next generation 802.11a/n Wi-Fi standard, combined 300Mbps high speed in 5G, equipped 2 10/100M LAN ports, 2 times Ethernet data rate faster than normal CPE, it make more than 50 end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks. It is using air as a medium for network data transmission to remote point-to-point or point to multi-point connectivity. It support206 has smart web management, it can be pairing automatically. Supports 3km unobstructed transmission.
Features
Specification
| Chipset | AR9344 | |||
| DRAM | DDR2 64MB | |||
| FLASH | 8MB | |||
| Interface | 10/100Mbps LAN*2 | |||
| Data Rate | 11a:54M,48M,36M,24M,18M,12M,9M,6Mbps | |||
| 11n:7.2M,14.4M,21.7M,28.9M,43.3M,57.8M,65M,72.2M,14.4M,28.9M,43.3M,57.8M,86.7M,115.6M,130M,144.4Mbps 433Mbps | ||||
| Transmission Mode | DSSS | |||
| Modulation Mode | OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK | |||
| Wireless Standard | IEEE802.11a, IEEE802.11n ,IEEE802.3u | |||
| Protocal | CSMA/CA,TCP/IP,IPX/SPX,NetBEUI,DHCP,NDIS3,NDIS4,NDIS5 | |||
| Frequency | 4900~6100MHz | |||
| Power Consumption | ≤3W | |||
| Power | POE 24V 0.5A -1A(Default) | |||
| RF @25℃±2dB |
802.11a | 6-24Mbps | 19±2dBm | |
| 36-48Mbps | 19±2dBm | |||
| 54Mbps | 19±2dBm | |||
| 802.11n | HT20 | MCS 0-3 | 17±2dBm | |
| MCS 4 | 17±2dBm | |||
| MCS 5 | 17±2dBm | |||
| MCS 6 | 17±2dBm | |||
| MCS 7 | 17±2dBm | |||
| HT40 | MCS 0-3 | 16±2dBm | ||
| MCS 4 | 16±2dBm | |||
| MCS 5 | 16±2dBm | |||
| MCS 6 | 16±2dBm | |||
| MCS 7 | 16±2dBm | |||
| Sensitivity | 802.11a | 6Mbps ≤ -89; 54Mbps ≤ -68 | ||
| 802.11n | HT20 | MCS 0 ≤ -86; MCS 7 ≤ -68 | ||
| HT40 | MCS 0 ≤ -83; MCS 7 ≤ -65 | |||
| Antenna | Frequency | 5180~5825MHz | ||
| Polarization direction | Vertical | |||
| DB | 12 dBi | |||
| Management | WEB management | Support | ||
| Telnet | Support | |||
| Serial | Support | |||
| Security | MAC control | Support | ||
| Encryption | WEP Encryption 64/128bits,WPA,WPA2,802.1x | |||
| Work / Storage Environment | Working | -30~65℃ | ||
| Storage | -50~80℃ | |||
| Moisture (non concentrated) |
≤95%(non-condensing) | |||
| Size | 90*172*43mm | |||
| Weight | 0.32kg | |||
| Packing List | 1* Outdoor CPE 1* 24V POE Power 1* Hose Clamp 1* Instructions 1* Certificate |
|||

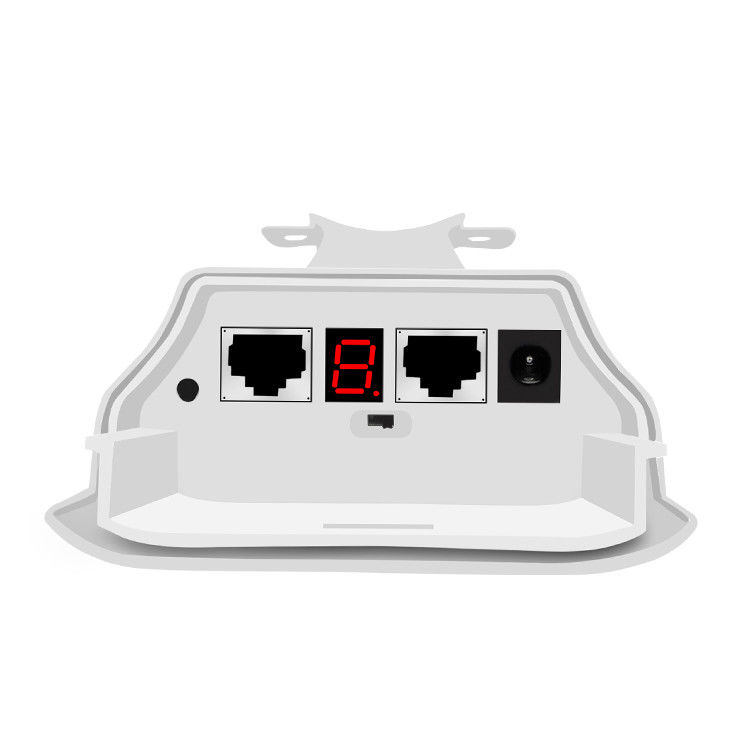

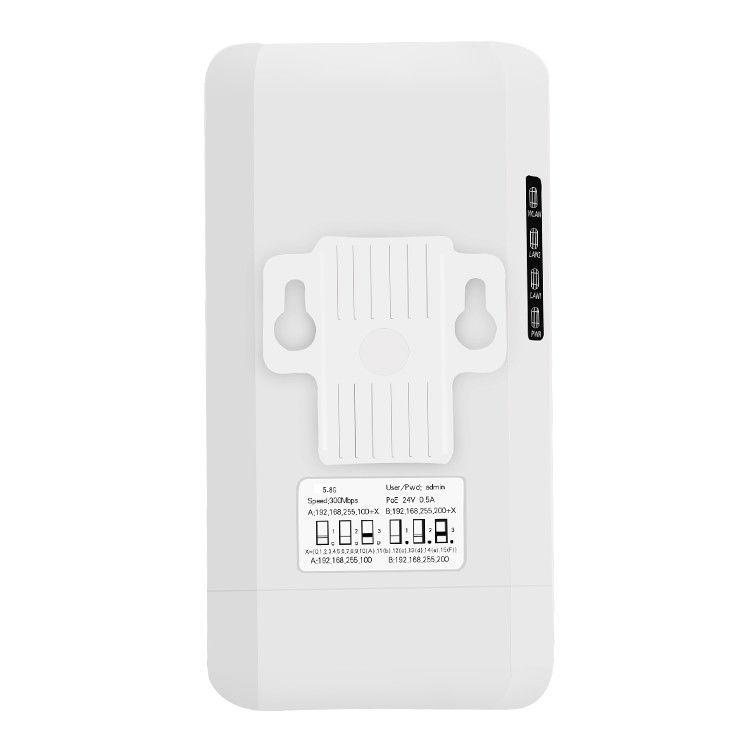

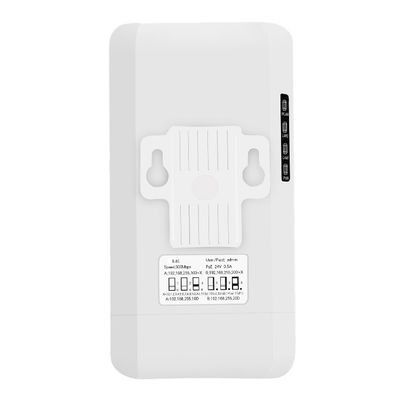

Products Pictures
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Our products are sold all over the world, you can rest assured.
