56Gbps Industrial Managed POE Switch 4 SFP Fiber Full Gigabit Poe Switch

56Gbps Industrial Managed POE Switch 4 SFP Fiber Full Gigabit Poe Switch

  • High Light

    56Gbps Industrial Managed POE Switch

    ,

    Industrial Managed POE Switch 4 SFP

    ,

    4 SFP Full Gigabit Poe Switch

  • Chipset
    RTL8382MI+RTL8214FCI+TPS23861*2
  • Product Name
    PoE Switch
  • PoE Ports
    8*10/100/1000M PoE Ports
  • Switching Capacity
    56Gbps
  • Power Supply
    DC 48V-56V
  • Dimensions (W X D X H)
    156x120x48mm
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    M808GP-4SFP-I
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    18*16*10 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

56Gbps Industrial Managed POE Switch 4 SFP Fiber Full Gigabit Poe Switch

Gigabit Industrial PoE Switch 8 POE Port And 4 SFP Fiber Slot Port Switch



Product Description

  The M808GP-4SFP-I is a full Gigabit managed industrial PoE switch independently developed by HUASIFEI. it has 8*10/100/1000M PoE ports and 4*100/1000 SFP fiber slot ports , port 1-8 can support IEEE 802.3af/at standard PoE power supply, single port PoE power up to 30W.
  As a PoE power supply device, it can automatically detect and identify the electrical equipment that meets the standard and supply power through the cable. It can supply the PoE terminal equipment, such as wireless AP, network camera, network telephone, industrial sensor and so on, to meet the demand for high density PoE power supply network environment.
  It is suitable for intelligent transportation, rail transportation, electric power industry, mining, metallurgy and green energy construction and so on.



Features

  • Supports IEEE 802.3i,IEEE 802.3u,IEEE802.3ab,IEEE802.3z,IEEE802.3x,IEEE802.3at,IEEE802.3af,IEEE802.3az.
  • Supports PoE power up to 30W for each PoE port.
  • 8× gigabit PoE+ ports and 4× gigabit SFP.
  • Supports MAC address auto-learning and auto-aging.
  • Store and forward mode operates.
  • LED indicators for monitoring power, link/activity
  • Support QoS, port mirroring, link aggregation protocol.

Specification



Model M808GP-4SFP-I
Chipset RTL8382MI+RTL8214FCI+TPS23861*2
Standards IEEE 802.3i,IEEE 802.3u,IEEE802.3ab,IEEE802.3x, IEEE802.3az, IEEE802.3af,IEEE802.3at
Number of Ports

8 x 10/100/1000Mbps ports

4 x 1000Mbps SFP ports

1x Console port

Network Media (Cable)

10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
1000Base-T: UTP category 5e, 6 cable (maximum 100m)

1000Base-X:MMF,SMF

Transfer Method Store-and-Forward
MAC Address Table 8K
Switching Capacity 56Gbps
Packet Forwarding Rate 41.67Mpps
Packet Buffer 4.1Mbit
Jumbo Frame 12KBytes
PoE Ports(RJ45) 8x PoE ports compliant with 802.3at/af
Power Pin Assignment 1/2(+),3/6(-)
Indicators Per Device Power, System
Per Port Link/Activity,
Power Supply 48-56V DC
Power Consumption Maximum(PoE on): 120W
Dimensions (W×D×H) 156x120x48mm (Rail type Aluminum case)
Environment

Operating Temperature: -40℃~85℃

Storage Temperature: -40℃~85℃

Operating Humidity: 5%~90% non-condensing

Storage humidity: 5%~90% non-condensing



Details Images

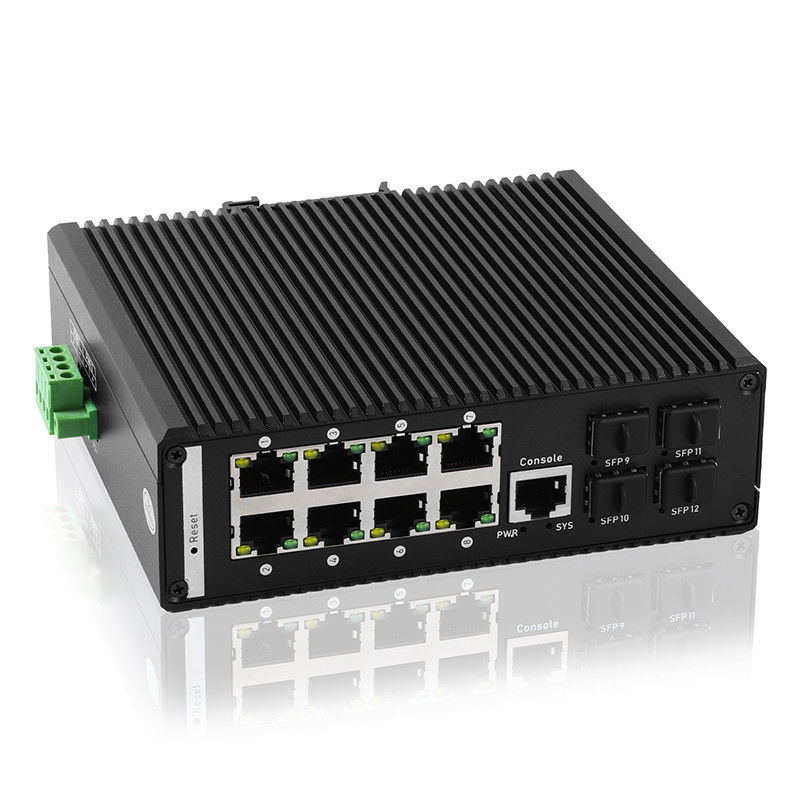

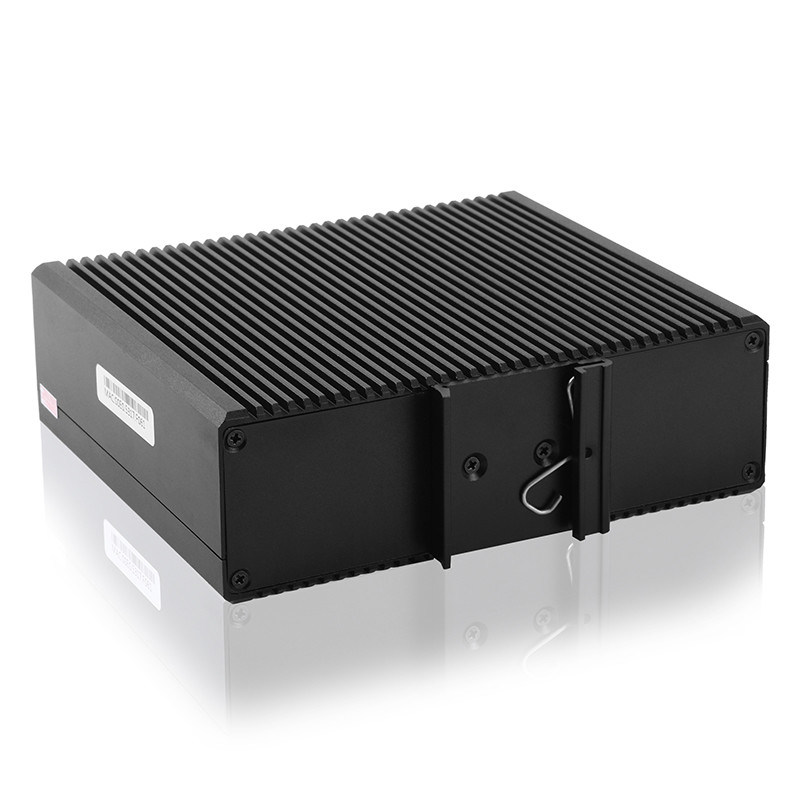

56Gbps Industrial Managed POE Switch 4 SFP Fiber Full Gigabit Poe Switch 056Gbps Industrial Managed POE Switch 4 SFP Fiber Full Gigabit Poe Switch 156Gbps Industrial Managed POE Switch 4 SFP Fiber Full Gigabit Poe Switch 256Gbps Industrial Managed POE Switch 4 SFP Fiber Full Gigabit Poe Switch 356Gbps Industrial Managed POE Switch 4 SFP Fiber Full Gigabit Poe Switch 4
