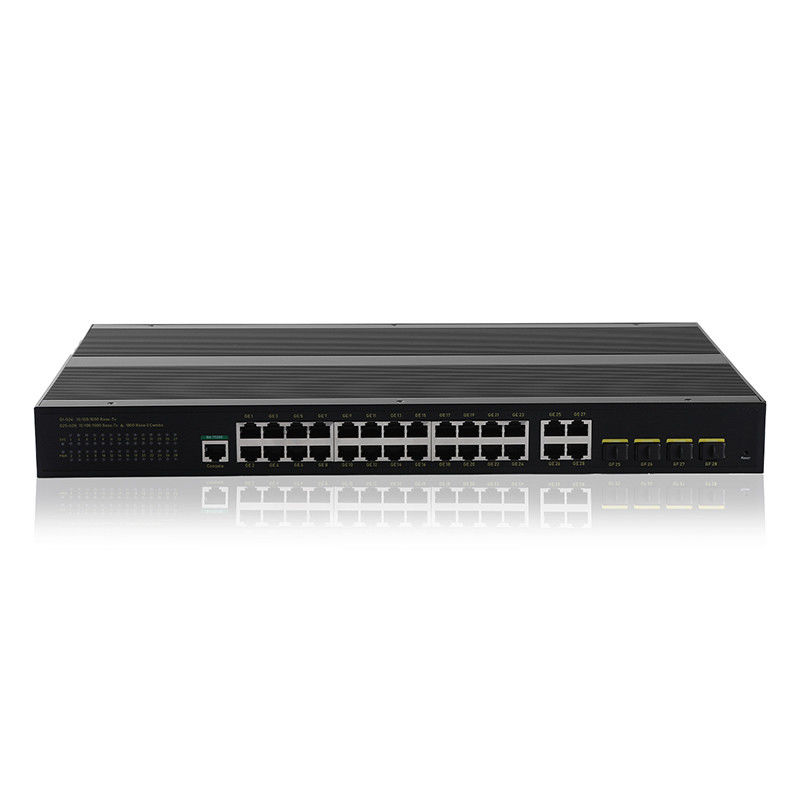

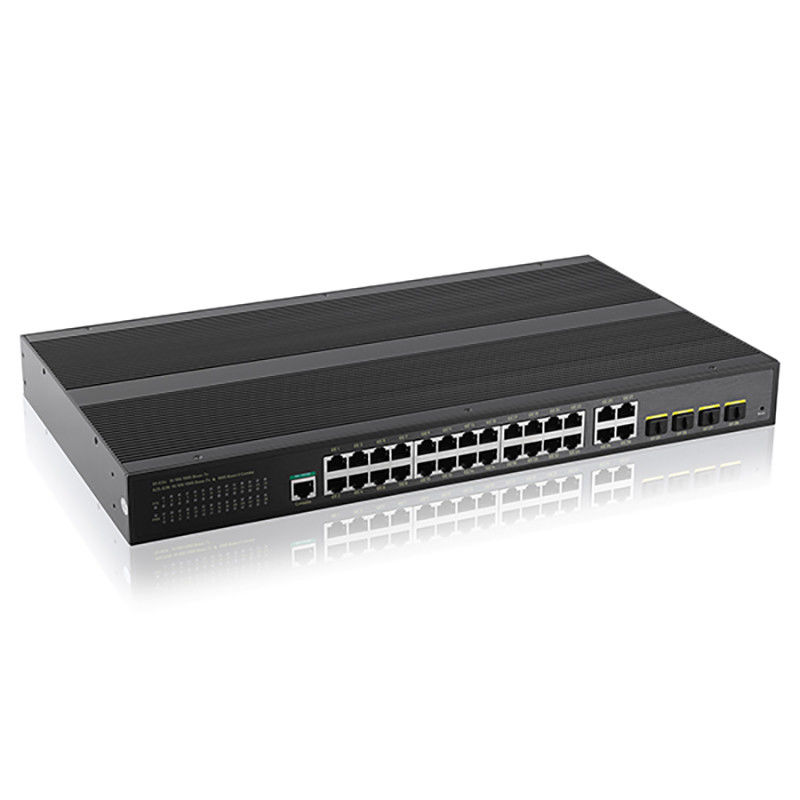

24 Port Industrial POE Switch 4 SFP Slot Ports Gigabit Unmanaged POE Switch
Product Description
The M824GP-4SFP-I is a full Gigabit industrial PoE switch independently developed by HUASIFEI. it has 24*10/100/1000M PoE ports and 4*100/1000 SFP fiber slot ports , port 1-24 can support IEEE 802.3af/at standard PoE power supply, single port PoE power up to 30W.
As a PoE power supply device, it can automatically detect and identify the electrical equipment that meets the standard and supply power through the cable. It can supply the PoE terminal equipment, such as wireless AP, network camera, network telephone, industrial sensor and so on, to meet the demand for high density PoE power supply network environment.
It is suitable for intelligent transportation, rail transportation, electric power industry, mining, metallurgy and green energy construction and so on.
Features
Specification
| Model | M824GP-4SFP-I |
| Chipset | RTL8382MI+RTL8218BI+RTL8214FCI |
| Standards | IEEE 802.3i,IEEE 802.3u,IEEE802.3ab,IEEE802.3x, IEEE802.3az |
| Number of Ports |
24x 10/100/1000Mbps POE ports 4 x 1000Mbps SFP ports 1x Console port |
| Network Media (Cable) |
10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 1000Base-X:MMF,SMF |
| Transfer Method | Store-and-Forward |
| MAC Address Table | 8K |
| Switching Capacity | 56Gbps |
| Packet Forwarding Rate | 41.67Mpps |
| Packet Buffer | 4.1Mbit |
| Jumbo Frame | 12KBytes |
| Indicators | Per Device | Power, System |
| Per Port | Link/Activity, | |
| Dimensions (W×D×H) | 440x240x45mm (1u19 inch aluminum housing) | |
| Environment |
Operating Temperature: -40℃~85℃ Storage Temperature: -40℃~85℃ Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing |
|
Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Our products are sold all over the world, you can rest assured.
