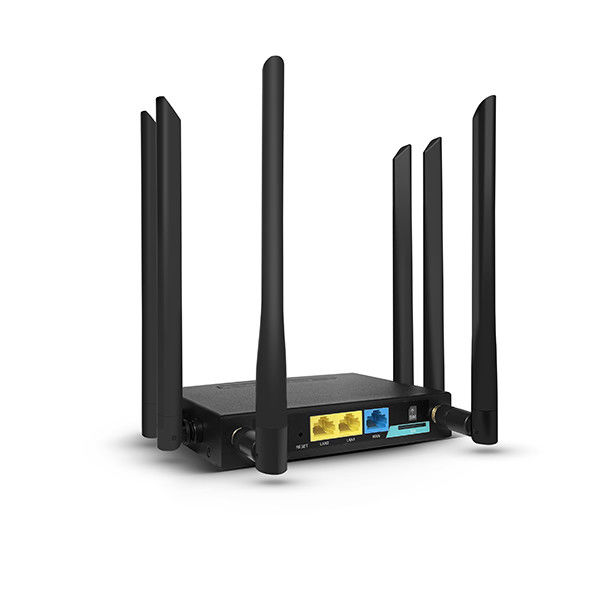

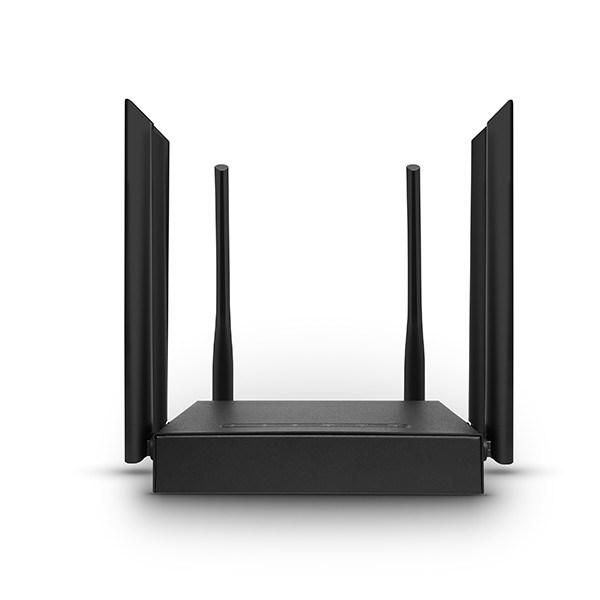

4g Lte Wifi Router Chipset MTK7628 12V DC Power 300Mbps 4G Wireless Router
Product Description
WS170-N is a flagship wireless communication product developed based on 4G network requirements, with a wireless rate of up to 300Mbps, which can meet the needs of small networks such as offices and homes for stability, security, and simple access to the Internet. It can also be applied to the Internet of Things communication industry. Provide users with wireless long-distance data monitoring, collection and transmission functions. Full Netcom 4G network access, fully compatible with 4G/3G/2G network, equipped with 2 10/100M adaptive Ethernet LAN interfaces, connected to the internal LAN; 1 10/100M adaptive Ethernet WAN interface, providing wired Broadband access.
Features
Enterprise-level design, 300M wireless speed
Using a professional wireless processor, the wireless rate is as high as 300Mpbs, and the barrier-free transmission distance is about 100 meters. Independent professional power amplifier and low-noise amplifier, stable and smooth with 30 machines, no freeze, no drop-off.
Easy to set up, flexible and multi-purpose
It supports 4G and wired broadband access, and has a built-in quick setup wizard to guide customers to complete configuration easily. The default 4G access mode, just plug in the card and use; WAN access network, automatically switch to routing mode. Support 4G and cable two broadband access methods, support mobile Unicom Telecom 4G/3G/2G network card, and have 4G Internet access advantages in places where wired bandwidth cannot reach, 4G and wired automatic switching, never disconnected.
A variety of security strategies to ensure network data security at all times
Support WPS, WPA, WPA2 wireless security access, support SSID hiding, guest network, black and white list, LAN port isolation, VPN, ALG, MAC filtering, IP filtering, NAT setting, DDOS to effectively protect network security, and ensure user network data security at all times.
A variety of status statistics, always know the working status of the equipment
Built-in traffic statistics, support traffic package settings, easy to understand the monthly traffic usage; multi-state work indicator, real-time work log view, always know the working status of the device.
Never-ending product feature updates and performance optimization
The R&D team adhering to the spirit of craftsmanship has been constantly updating functions to meet the needs of various network environments simply and efficiently; meticulous performance optimization ensures the provision of the highest quality network products and improves user experience.
Specifications
| Hardware specification | |
| Product number | WS170-N |
| main chip | MTK7628NN 300M High-performance enterprise chips |
| main frequency | 580MHz |
| wireless technology | 802.11b/g/n 300M MIMO technology |
| Flash memory | 16MB |
| Memory | 128MB |
|
device interface |
WAN 10/100Mbps Adaptive Network Interface *1 LAN 10/100Mbps Adaptive Network Interface *2 Standard SIM card,standard card |
| Antenna | 2.4G:2T2R ；4G LTE:2T2R ,4G Detachable antenna |
| Power consumption | ＜12W |
|
press key
|
POWER/RESET/WPS&WiFi multiplex button |
| Reset button: 1 reset button, long press for 5 seconds to restore factory settings | |
| POWER button: Short press to turn on, then short press to turn off | |
| indicator light | POWER,WiFi,2.4G,WPS,lights, telephone |
| Product Size | N/A |
| Wi-Fi features | |
| RF parameters | 802.11b/g/n:2.4~2.4835GHz |
| modulation mode |
11b:DSS:CCK@5.5/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps 11g:OFDM:64QAM@48/54Mbps,16QAM@24Mbps,QPSK@12/18Mbps,BPSK@6/9Mbps 11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM |
| Transmission rate |
11b: 1/2/5.5/11Mbps 11g: 6/9/12/18/24/36/48/54Mbps 11n: up to 300Mb |
| Receiver sensitivity |
11b: <-84dbm@11Mbps； 11g: <-69dbm@ 54Mbps； 11n: HT20<-67dbm HT40: <-64dbm |
| transmit power |
11b: 18dBm@ 1~11Mbps 11g: 16dBm @ 6~54Mbps 11n: 15dBm@ MCS0~7 |
|
IEEE 802.3(Ethernet) IEEE 802.3u(Fast Ethernet) IEEE 802.11b/g/n(2.4G WLAN) |
|
| communication standard | WPA/WPA2 Security mechanism (WPA-PSK using TKIP or AES) |
| 4G features | |
| Network standard/GNSS | EC200A |
| LTE-FDD (support hierarchical reception) | B1/B3/B5/B8 |
| LTE-TDD (support hierarchical reception) | B38/B39/B40/B41 |
| WCDMA | B1/B8 |
| TD-SCDMA | B34/B39 |
| CDMA | B1/8 |
| GSM | B3/8 |
| GNSS function | GPS,GLONASS,BeiDou/Compass,Galileo,QZSS |
