1800Mbps Dual Band Cpe Wifi Router Chip MT7621AT 12V DC

1800Mbps Dual Band Cpe Wifi Router Chip MT7621AT 12V DC

  • High Light

    1800Mbps Cpe Wifi Router

    ,

    Cpe Wifi Router Chip MT7621AT

    ,

    outdoor 5g router 12V DC

  • Wireless Speed
    1800Mbps
  • WIFI
    802.11 A/b/g/n/ac/ax
  • CPU
    MT7621AT+SDX55
  • Operating Temperature
    -20℃~+50℃
  • Flash
    16MB
  • RAM
    2Gb
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    ZR10 Pro 3
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    32*21*6 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

1800Mbps Dual Band Cpe Wifi Router Chip MT7621AT 12V DC

1800Mbps Dual Band 5g Cpe Router Chip MT7621AT 12V DC Wifi Router 5g



Product Description

  5G & WiFi-6 Smart Router System (CPE), is based on brand-new embed platform, it can be satisfied with growing-up mobile connections requirements and provides the fast speed beyond your imagination.

  The CPE is compatible with NSA/SA dual-mode, suits to all network types all over the world, it means you just plug and play it and enjoy the ultra-fast broadband connection at any places.

  The CPE brings the new way to enable you experience VR/AR/4K/8K streaming freely and easily. With 802.11ax (Wi-Fi 6) technology built-in, the single CPE has wider wireless coverage and more bandwidth. Meanwhile the CPE brings higher security, better network efficiency and longer battery life.





Key Features

5G Cellular

Built-in Qualcomm™ SDX55 modem, it has best 5G mobile network performance and works with integrated world-wide 5G to 2G multi-mode.



Wi-Fi 6 (802.11ax)

The revolutionary Wi-Fi technology with OFDMA and DL MU-MUMI, faster wireless line,more client connection, lower latency, best network efficiency.



Higher Wireless Capacity

Dual-band 4 spatial streams, the CPE outputs 1800Mbps wireless bandwidth (600 + 1200), makes you peace of mine while enjoy UHD videos, online games at the home rush hours. It’s the future-proof investment absolutely.



Hybrid MESH+ Networking

The CPE inherits the mesh technology and supports “wired / wireless” hybrid networking. It’s so convenient to cover all corners and dead-zones by adding one more MESH+ node (another series of router). it improves the deployments of wireless network and optimized the seamless feature.



5G/4G network

  • 5G chip: UNISOC IVY 510 Modem-RF System
  • 5G networking mode: FDD, TDD, SA (standalone), NSA (non-standalone)
  • 5G Technology: SA, NSA, 5G NR FDD, 5G NR TDD
  • 4G Technology: LTE FDD, LTE TDD including CBRS support, LAA, LTE Broadcast
  • Communication Standard: 3GPP Release 15
  • 5G NR: N1/N3/N8/N28/N41/N77/N78/N79
  • LTE-FDD: B1/B2/B3/B5/B7/B8/B20/B28A/ B28
  • LTE-TDD: B34/B38/B39/B40/B41
  • 5G-SA sub-6G transmission rate: 2Gbps/1Gbps (the actual rate is subject to the operator)
  • 5G-NSA sub-6G transmission rate: 2.2Gbps/575Gbps (the actual rate is subject to the operator)
  • 4G transmission rate: 600Mbps/150Mbps (the actual rate is subject to the operator)
  • Antenna type: built-in 5G/4G main set, diversity antenna



WIFI6 Datasheet

WiFi 6(802.11ax)

  • Working Radio: #1: 600Mbps @ 2.4GHz; #2: 1200Mbps @ 5.1-5.8GHz
  • Coding Technology:1024-QAM / OFDMA
  • Peak Connections:>100+ Clients
  • Wi-Fi Standard Conformance:WiFi6 and 802.11ac / 802.11n backward
  • Antenna: built-in 4 pcs high performance antennas with 4 pcs external FEM components.

Data Switching

  • Mobile 4G/5G Connection (Support APN)
  • Giga Ethernet Connection
  • MESH:MESH+ hybird
  • 2.4G/5Ghz WiFi
  • Advanced Firewall
  • MAC Filter
  • WiFi Sercurity
  • VPN Passthrough and VPN Client (L2TP PPTP)
  • IPV4/IPV6
  • WEB / APP Mangement
  • Firmware upgrade

Hardware Specification

  • CPU: MT7621AT
  • Memory:16MB Flash + 256MB DDR3
  • Ethernet:1*1Gbps WAN,2*LAN 1Gbps
  • 1* SIM Slot(Nano-SIM)
  • Reset button
  • MESH+ Button
  • MESH+ LED Switch
  • LED Indicato, MESH+ Working Status (breathing light), 4G Status , 5G Status, WiFi Status, Power Status
  • Power Consumption:<20W
  • DC Power Supply: 12V/2A
  • Working temperature:0℃~40℃, Storage temperature: -20℃~+70℃
  • Humidity:5%~95%
  • Dimensions:108X108X216MM

Specification



CPU MT7621AT+SDX55
Flash 16MB
RAM 2Gb
WiFi Frequency 2.4G&5G
WiFi Standard 2.4G:802.11b/g/n /ax 2T2R MIMO, 5.8GHz:802.11a/n/ac/ax 2T2R MIMO
WiFi 2.4GHz :600Mbps ,5GHz :1200Mbps



Details Images

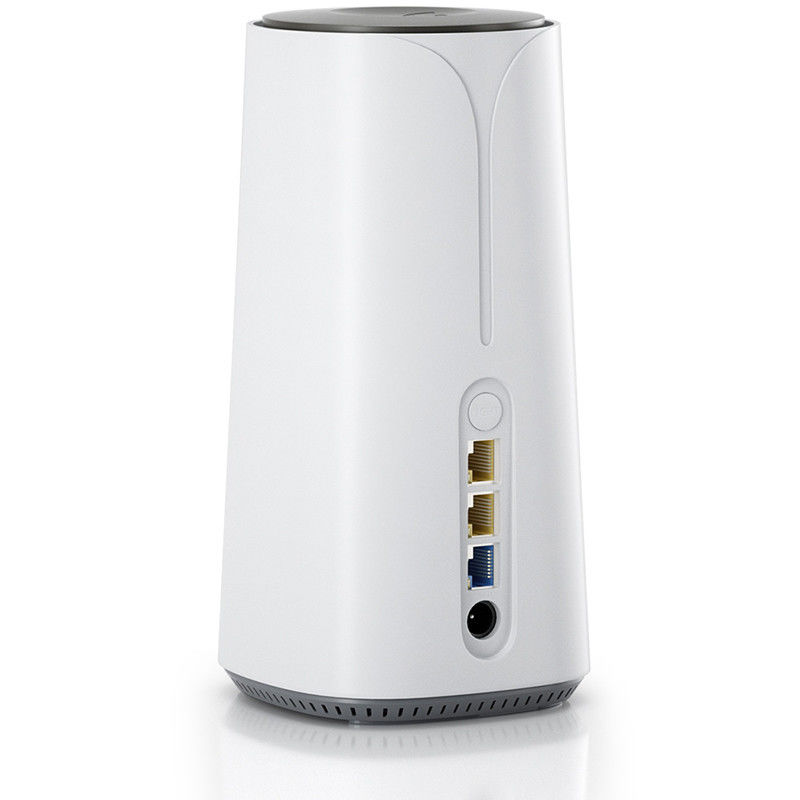

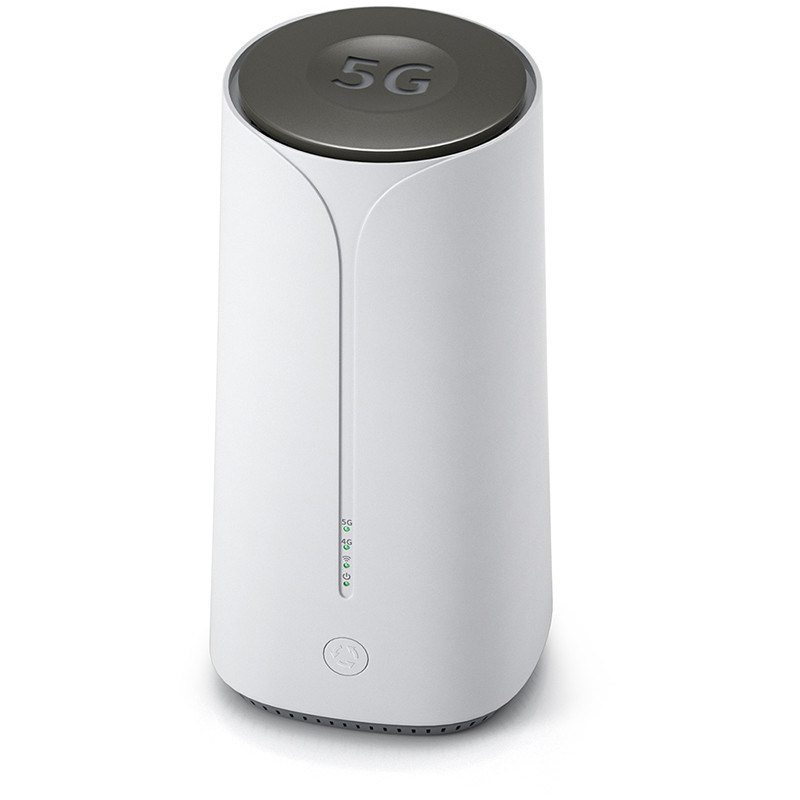

1800Mbps Dual Band Cpe Wifi Router Chip MT7621AT 12V DC 01800Mbps Dual Band Cpe Wifi Router Chip MT7621AT 12V DC 11800Mbps Dual Band Cpe Wifi Router Chip MT7621AT 12V DC 21800Mbps Dual Band Cpe Wifi Router Chip MT7621AT 12V DC 3



FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. Do your products meet our standards?

A: Yes, almost all our products have CE,ROHS,FCC,etc.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q7. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
Q8. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
