300Mbps 4g Lte Router WAN/LAN Port Black 4G Industrial Router With SIM Slot
Product Description
WS7628-4G motherboard uses the latest MT7628AN platform of the United Development Section. This new SoC provides high data transmission for gateway data, voice and image applications in smart home, and consumes much less power than other similar products on the market. HL7628 allows equipment manufacturers to produce router-related products at the lowest BOM cost.
Integrating 2T2R 802.11n Wi-Fi radio frequency and 580MHz MIPS 24KEc CPU, the power consumption is 18% lower than other chipsets on the market, and it has excellent wireless communication performance and throughput, so that consumers can easily control their home network, online household appliances and cloud services at home or far away. It can be used for indoor and outdoor wireless AP, information interception, WIFI signal relay, small car-borne WIFI, image and video return, express cabinet, charging pile, vending machine, industrial automation remote control, other Internet equipment integration and company-level standby network applications. The main features of this motherboard are: wide power supply range, low power consumption, modular design, multi-function board. Customers can choose different configurations according to their actual situation, saving customer development costs and development cycle. In addition, we provide secondary development software and hardware technology support, as well as a variety of customization and other full range of services, convenient for customers to quickly do integration, professional application promotion.
Specification
| Hardware specification | |
| Product model | WS7628-4G |
| Main chip | MT7628AN/580Mhz |
| DDR | DDR2 64MB |
| FLASH | SPI 8MB |
| Protocol standard | IEEE802.11b/802.11g/802.11n/802.3/802.3u |
| Wireless rate | 2.4g 300Mbps |
| Working frequency band | 2412 MHz-2484MHz(channel 1 -channel 14) |
| 4G Working frequency band |
LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 (Frequency band can be selected) |
| antenna | A detachable 4,000-bar receiving antenna or sucker antenna |
| Interface |
One SIM interface; Two GPIO inputs and outputs. A 10/100M adaptive WAN port supporting automatic flip (Auto MDI/MDIX) A 10/100M adaptive LAN port supporting automatic flip (Auto MDI/MDIX) |
| LED | From left to right are WAN headlamp, LAN headlamp, Wifi headlamp, 4G headlamp and system running status lamp. |
| Button | Reset |
| power adapter | DC 9V-24V/1A |
| Power Supply Supported | NO |
| Maximum Power | < 9W |
| Software specification | |
| Factory default settings |
IP :192.168.1.1 User/password:root/admin |
| WAN access mode | PPPoE, Dynamic IP, Static IP |
| Working mode |
AP; ROUTER; |
| DHCP Server |
DHCP server; Client list; Static address allocation; |
| support system | Original factory SDK,openwrt, |
| Virtual Server |
Port forwarding DMZ host |
| security setting |
Client filtering Mac address filtering URL filtering |
| DDNS | Support |
| Other | |
| work environment |
Working temperature: - 20 C ~ 75 C storage temperature: - 50 C ~ 95 C humidity: 0 ~ 90%, no condensation voltage input: 9 ~ 24V DC Standby power consumption: < 1.5W |
| parts |
Power adapter 1 PCS (national standard 24V/1A line length 1.5M) Dark Blue Wire 1 m 1 PCS |

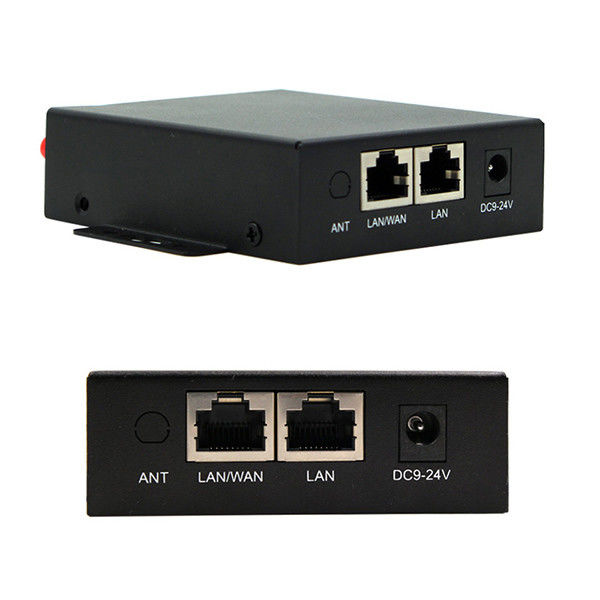

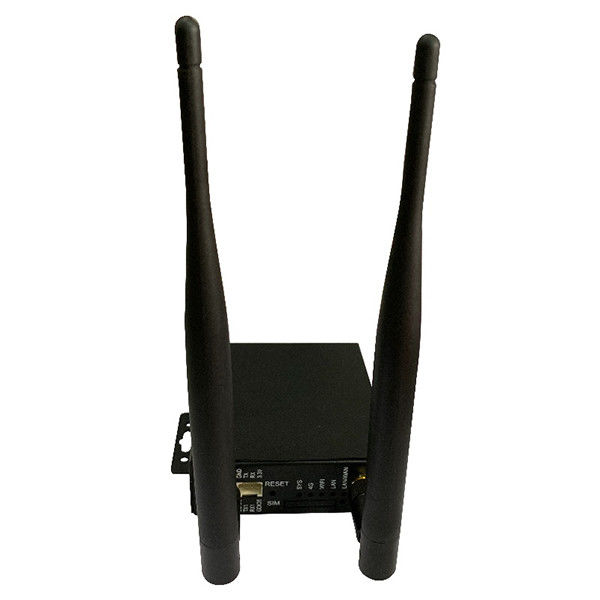

Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Our products are sold all over the world, you can rest assured.
