150Mbps 4g Cpe Router Plastic Shell 12V DC Power 4g Router With SIM Slot
Product Description
This device is a high-performance 4G broadband wireless router, supporting the maximum DL / UL rate of 150 / 50Mbps. Relying on 2 * 2 MIMO technology, it provides high-quality data communication and optimized WiFi data transmission. Diversified WiFi standards and encryption modes ensure the safety and stability of the product.
With a variety of working modes (4G to WiFi / 4G to cable), rich network protocols and reliable connections, it can be widely used in business and home. It has the function of regular restart and firewall protection. The built-in hardware watchdog can effectively prevent the system from crashing during operation. Built in dual firmware can automatically recover the system due to software upgrade failure or abnormal startup caused by software.
Specification
Interface |
Network | 4*lan |
SIM | 2FF sim | |
Button | reset | |
DC adapter | Input voltage:12V-1A | |
Solution |
Routing and WiFi chipset supplier | MTK |
BASE |
Routing and WiFi chipset model | MT7628N |
Routing and WiFi processor info | IEEE 80 2.11 /b/g/n | |
DDR/SPI | 64MBytes/16MBytes | |
RF |
Main antenna | Internal antenna |
Receive diversity antenna | Internal antenna | |
WiFi band | 2400MHz-2483.5MHz | |
MIMO for WiFi | 3dbi X 2 | |
Max. transmitter power for WiFi |
802.11b 24dBm±2dBm; 802.11g 16dBm±2dBm; 802.11n 15dBm±2dBm; |
|
Software |
Language | Chinese&English |
APN Setting | Supported | |
Device Settings | Supported | |
WIFI Settings | Supported | |
Routing Settings | Supported | |
Firewall Settings | Supported | |
Technical standard |
LED | Supported |
WiFi standard | 802.11b/g/n(2*2 11n features) | |
WiFi security | WPA/WPA2 | |
OS | Windows XP,Windows Vista,Windows 7,Windows 10,MAC,Linux | |
Browser | IE (8.0 and later),Firefox (3.0 and later),Safari (4.0 and later),Opera (10.0 and later),Chrome (10.0 and later) | |
Envionment |
Operating temperature | 0 to 50° C |
Storage temperature | -40 to 70° C | |
Humidity | 5% to 95% |

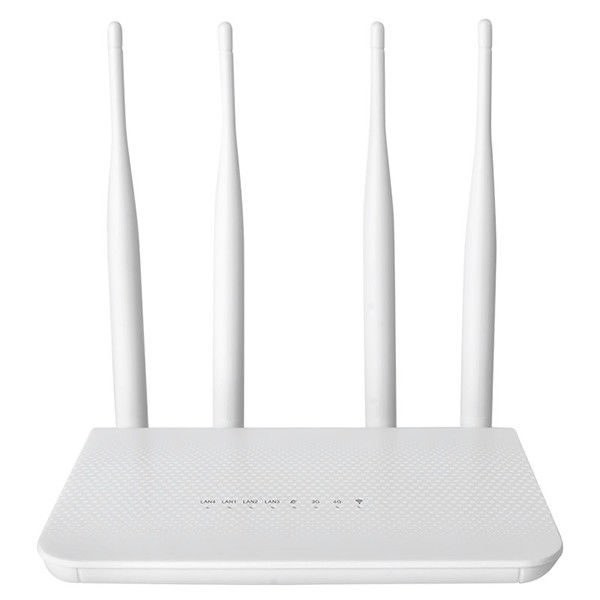

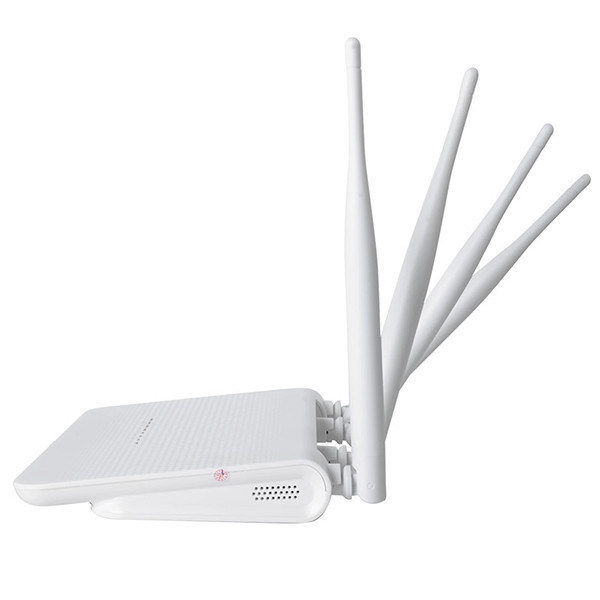

Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
