1LAN Wireless Network Bridge Long Range Wifi Repeater 48V POE

1LAN Wireless Network Bridge Long Range Wifi Repeater 48V POE

  • High Light

    1LAN Wireless Network Bridge


    Wireless Network Bridge 48V POE


    Long Range Wifi Repeater 48V

  • Interface
  • Antenna
    2*5dbi External Antennas
  • Support
    Openvpn Ipsec PPTP L2TP
  • Chipset
  • Flash
    16MB SPI
  • RAM
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 piece
  • Price
  • Packaging Details
    39*23*11 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

1LAN Wireless Network Bridge Long Range Wifi Repeater 48V POE

Outdoor Long Range Wifi Repeater 48V POE Waterproof Wireless Network Bridge


Product Description


300Mbps high speed rate :
  AP20 adopts Qualcomm QCA9531 chip, 2.4GHz operating band, equipped with powerful 8M flash memory + 64M memory configuration, can support up to 32 terminals access, providing up to 300Mbps wireless access speed, faster download and upload speed, online surfing at will.


100 megabit adaptive wired network interface Support POE power supply :
  It provides one 10/100Mbps adaptive wired network interface, which can debug the AP itself while providing network, and supports 48V POE power supply when providing data transmission when it is elected to use 48V POE power supply.


Various functions, support AC centralized management, support Chinese SSID :
  AP20 supports AC centralized management, through remote management, change configuration and other functions, so that large-scale network installation, engineering layout becomes more simple and convenient; support Chinese SSID signal name, set the WIFI name as the name of the merchant, so that customers can accurately search and connect to use; AP20 can automatically clean up the cache garbage, timing reboot, easier and more convenient to use.


Adapt antenna with different functions according to demand :

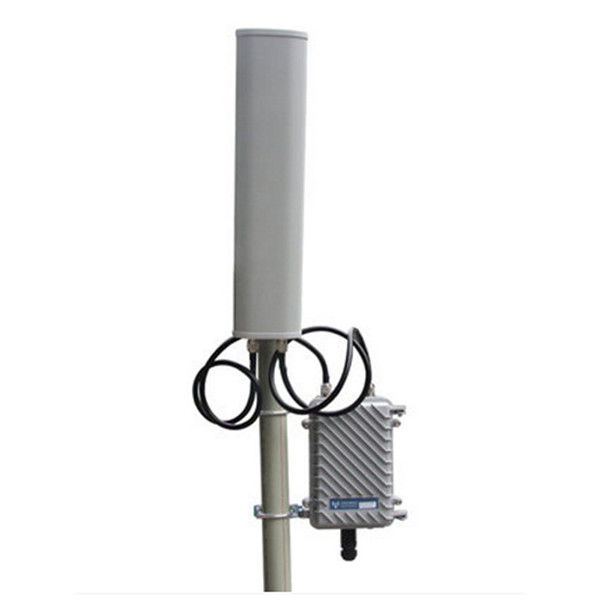

  According to different needs, the effect varies when the host is equipped with different outdoor antennas. The recommended radius of omnidirectional transmission distance is 200 meters for 8DBi omnidirectional fiberglass antenna, 300 meters for 12DBi omnidirectional fiberglass antenna, and 700 meters for 14DBi sector antenna.



Hardware Configuration
Main Chip QCA9531
Wireless Technology 802.11N, 2T2R 300M MIMO technology
Memory 64MB DDR2 RAM
Flash 8MB
Device Interface 1 x 10/100 Mbps adaptive wired network interface (supports 48V POE power)
Antenna External option
Product Size Length 278mm,Width 195mm,Height 78mm
Power Adapter Standard 48 V POE power supply
RF Parameters
RF Characteristics 802.11b/g/n: 2.4~2.4835GHz
Korea, Japan, ETSI, FCC communication channel optional
Modulation Mode OFDM = BPSK, QPSK, 16-QAM, 64-QAM
Transmission rate 300 Mbps
Receiving Sensitivity 802.11n (2.4GHz) 802.11g 802.11b
-90 dBm @ MCS0 - 90dBm @ 6Mbps - 95dBm @ 1Mbps
-72dBm @ MCS7 - 72dBm @ 54Mbps - 90dBm @ 11Mbps
-90dBm @ MCS8
-68dBm @ MCS15
Transmit power 802.11n(2.4GHz)(± 1.5dBm) 802.11g(± 1.5dBm) 802.11b(±1.5dBm)
28dBm @ MCS0~2/MCS8~10 28dBm @ 6~24Mbps 28dBm @1~11Mbps
28dBm @ MCS3/MCS11 27dBm @ 36Mbps
27dBm @ MCS4/MCS12 27dBm @ 48Mbps
27dBm @ MCS5/MCS13 26dBm @ 54Mbps
26dBm @ MCS6/MCS14
26dBm @ MCS7/MCS15
Software characteristics
Operating mode Gateway Mode/AP Mode / Universal Trunking Mode
Communication standard IEEE 802.3(Ethernet)
IEEE 802.3u(Fast Ethernet)
IEEE 802.11b/g/n(2.4G WLAN)
Wireless Settings Intelligent channel analysis
Distance control 802.1x ACK time output
Multiple SSIDs, up to 4 configurable
Wireless Security WEP security mechanism Support 64/128/152-bit WEP security password
WPA/WPA2 security mechanism (WPA-PSK using TKIP or AES)
WPA/WPA2 security mechanism (WPA-EAP using TKIP)
Hidden SSID security mechanism
System Settings WEB configuration (HTTP/remote login)
Software Upgrade WEB page or TFTP to upgrade software
User Management Configurable user and password
System Monitoring Device and network status statistics
Logging Provide local log, host log, file transfer log
Recovery Settings Restore output default settings
Backup Functions System configuration can be backed up to restore user configurations when needed
Physical Characteristics
Temperature Characteristics Operating temperature: 0°C to 55°C
Storage temperature: -20°C to 70°C
Humidity 5% to 95% (typical)


Details Images

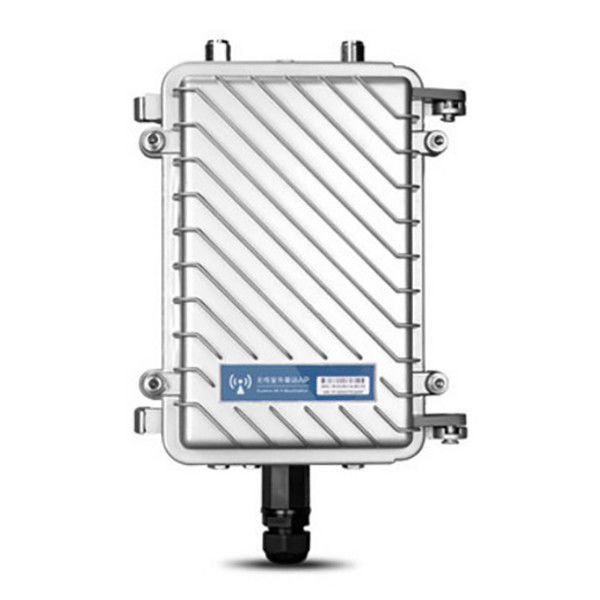

1LAN Wireless Network Bridge Long Range Wifi Repeater 48V POE 01LAN Wireless Network Bridge Long Range Wifi Repeater 48V POE 11LAN Wireless Network Bridge Long Range Wifi Repeater 48V POE 2
