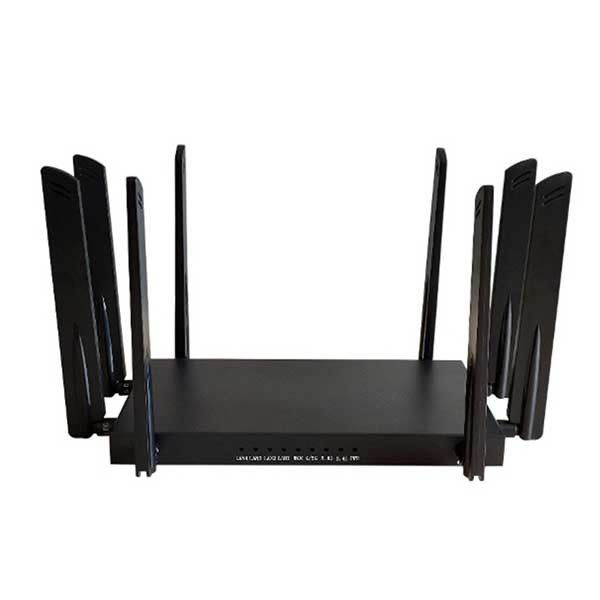

Gigabit 5g Industrial Router 1800Mbps 12V DC Power 5g Router With SIM Slot
Product Description
Adopt Qualcomm IPQ6010 chip, the chip uses 4-core ARM Cortex A53 at 1.8 GHz, 2.4G adopts 2-way MU-MIMO OFDMA modulation technology, up to 573Mbps, 5.8G uses 2-way MU-MIMO OFDMA modulation technology, up to 1201Mbps, 802.11 The ac unique modulation method can support more load terminals, and can mount 512 terminals at the same time.
WS6001 has rich interfaces and supports multiple interface reservations to meet the needs of various application scenarios
Specification
| Chipset | IPQ6010+QCN5052+QCN5022+QCA8081(QCA8075) | |
| CPU | IPQ6010/601:Quad ARM Cortex A53 at 1.8 GHz, 64-bit ISA v8 instruction set | |
| RAM | 1GByte DDR3 | |
| NOR flash | 32M Byte | |
| NAND | 256M Byte | |
| PCB | 176*146mm | |
| radio frequency | 2.4G(802.11AX)2T2R ＋ 5G(802.11aX) 2T2R | |
| antenna gain | 5dBi,external | |
| rate | 2.4g 600M+5g 1200M | |
| port | 5*10/100/1000Mbps RJ45 Port,or 4 1000M+2.5G WAN | |
| power supply | Support DC 12V 2A power receiving (12V 3A recommended for dual 5G), 802.11at POE power receiving | |
| indicator light |
10 green indicators (power, 2.4G, 5.8G, 5 network ports, 2 4/5G), External 12PIN pin |
|
|
USB3.0 expand
|
1*SATA external interface | |
| 1*USB external interface | ||
| 1*M.2 Main card slot /4G. Master Card MINI PCI-E | ||
| 1*M.2 Secondary card slot | ||
| USB 2.0 | Secondary card 4G MINI-PCIE | |
| PCIE/4G Master Card | Receive the main card 4G MINI-PCIE | |
| Module Support List |
Longshang U9300C single and dual cards Huawei 5G MH5000 single card Quectel 5G RM500 single card |
|
| TF card | Support, default factory without | |
| SATA | Support 1*SATA, default without, | |
| External pin interface | UART0,UART1, I2C,SPI(Refer to the following circuit) | |
| Working frequency |
802.11ac/n/ac/ax: 5.150GHz-5.850GHz ; 802.11b/g/n/ax : 2.4GHz-2.483GHz (China) |
|
| RF parameters |
2.4G
|
11AX RF Power 19±1.5dbm EVM≤-35dbm |
| 11AC RF Power 21±1.5dbm EVM≤-31dbm | ||
| 11N RF Power 22±1.5dbm EVM≤-28dbm | ||
| 11G/B RF Power 23±1.5dbm EVM≤-25dbm | ||
|
5.8G
|
11AX RF Power 19±1.5dbm EVM≤-35dbm | |
| 11AC RF Power 21±1.5dbm EVM≤-31dbm | ||
| 11N RF Power 22±1.5dbm EVM≤-28dbm | ||
| 11A RF Power 23±1.5dbm EVM≤-25dbm | ||
| Working/storage temperature | -10℃～50℃/-40℃～70℃ | |
| Working/Storage Humidity | 5%～95%(non-condensing) | |

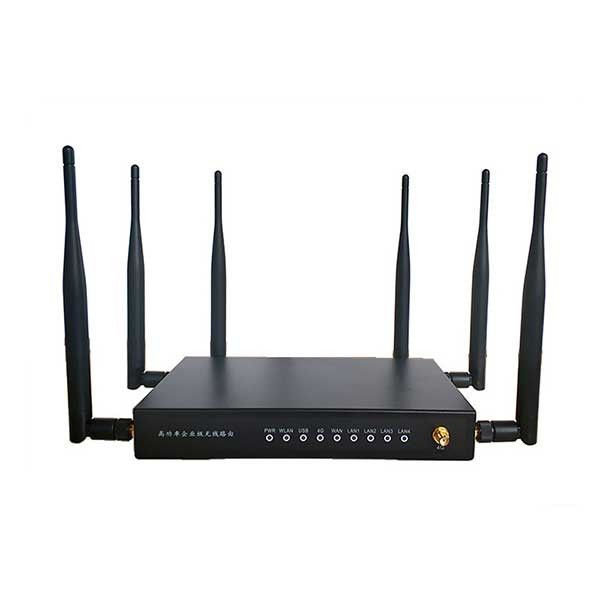

Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Our products are sold all over the world, you can rest assured.
