Unmanaged Intelligent Smart Poe Switch 24 Port IEEE802.3  IEEE802.3u  IEEE802.3x

Unmanaged Intelligent Smart Poe Switch 24 Port IEEE802.3 IEEE802.3u IEEE802.3x

  • High Light

    Smart Poe Switch IEEE802.3

    ,

    Smart Poe Switch IEEE802.3u

  • Network Protocol
    IEEE802.3 IEEE802.3u IEEE802.3x
  • Backplane Bandwidth
    12.8 Gbps
  • PoE Power Supply Standard
    1-24 Ports Support IEEE802.3af/at Standard PoE Power Supply
  • Total Power
    300W
  • Protection Class
    IP30
  • Port Lightning Protection
    4kV 10/700us
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    CX-S2404GF
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    33*22*6 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

Unmanaged Intelligent Smart Poe Switch 24 Port IEEE802.3 IEEE802.3u IEEE802.3x

  Unmanaged Intelligent PoE Switch 24 100M Electrical Port Fiber Optic Switch



Product Description

  CX-S2404GF fiber optic switch is an unmanaged intelligent PoE switch, with 24 100M electrical ports + 2 Gigabit uplink electrical ports + 2 Gigabit uplink optical ports, of which 1-24 ports support IEEE 802.3af/at Standard PoE power supply, single-port PoE power up to 30W, and the PoE port can automatically detect and identify powered devices that comply with the IEEE 802.3af/at standard and supply power to them through network cables. Non-POE devices intelligently detect and only transmit data without power supply.
  It can supply power to PoE terminal equipment such as IP phones, network cameras, wireless APs, video intercoms, and smart homes through network cables. It is suitable for hotels, schools, factory dormitories, and small and medium-sized enterprises to form cost-effective networks.
  PoE technology (Power over Ethernet) is Power over Ethernet technology, which refers to the transmission of data signals for some IP-based terminals (such as IP phones, wireless access APs, network cameras, etc.) Power supply technology, these devices that receive DC power are called powered devices.



Features

  • 24 100M PoE ports + 2 Gigabit uplink network ports + 2 Gigabit uplink optical ports
  • Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3x standards
  • Ethernet port supports 10/100M adaptive
  • Flow control mode: Full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard
  • Store-and-forward switching mechanism
  • Comply with IEEE 802.3af/at PoE power supply standard
  • Three-speed intelligent dial switch (switch function can be customized) :



  VLAN: port isolation mode, 1-24 ports realize monitoring network downlink ports are isolated from each other, and communicate with uplink ports, effectively suppressing broadcast storms, Protect intranet security.

  PoE forced power supply: ports 21~24 become forced power supply mode, and the power of a single port can reach 30W, and when the power of a single port exceeds 30W, the power supply of the port will be automatically cut off, and the power supply will be restored automatically after the port overload is removed.

  AI watchdog: PoE watchdog mode, 1-24 power supply ports support PoE watchdog function, when the port communication fails, the corresponding port PoE will automatically restart, reducing on-site maintenance costs.

  • The PoE port supports a priority mechanism. When the remaining power is insufficient, the power supply of the high-priority port is given priority to avoid overloading of the device.
  • Ports 1~24 support AI recognition of long distances. When the network cable length is less than 100 meters, the default rate is 100M. When the network cable length is greater than 100 meters, the corresponding port rate is automatically reduced to 10M. The PoE power supply and data transmission distance can be extended to 250 meters.

Specification



Technical Parameters
port characteristics
fixed port

24 10/100Base-TX POE ports (Data/Power)

2 10/100Base-TX uplink RJ45 ports (Data)

2 1000Base-X SFP optical port slots (Data)

Network port characteristics 1-24 ports 10/100BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive
Network protocol

IEEE802.3

IEEE802.3u

IEEE802.3x

Backplane Bandwidth 12.8 Gbps
packet forwarding rate 9.523Mpps
packet forwarding cache 2M
MAC address table 2K
forwarding mode store and forward
Twisted pair transmission

10BASE-T : Cat3,4,5 UTP(≤250 meter)

100BASE-TX : Cat5 or later UTP(≤100 meter)

LED indicator Running indicator: Sys (green); Network indicator: Link (green)
Special feature

Function switch (customizable)



SW1: VLAN
SW2: Force Output
SW3: Watchdog
PoE and Power Characteristics
PoE power supply standard 1-24 ports support IEEE802.3af/at standard PoE power supply
PoE power supply pin 1/2(+),3/6(-)
PoE maximum single port/average power AT-30W / AF-15.4W
total power 300W
Overall power consumption Standby power consumption: <7W; full load power consumption: <300W



Details Images

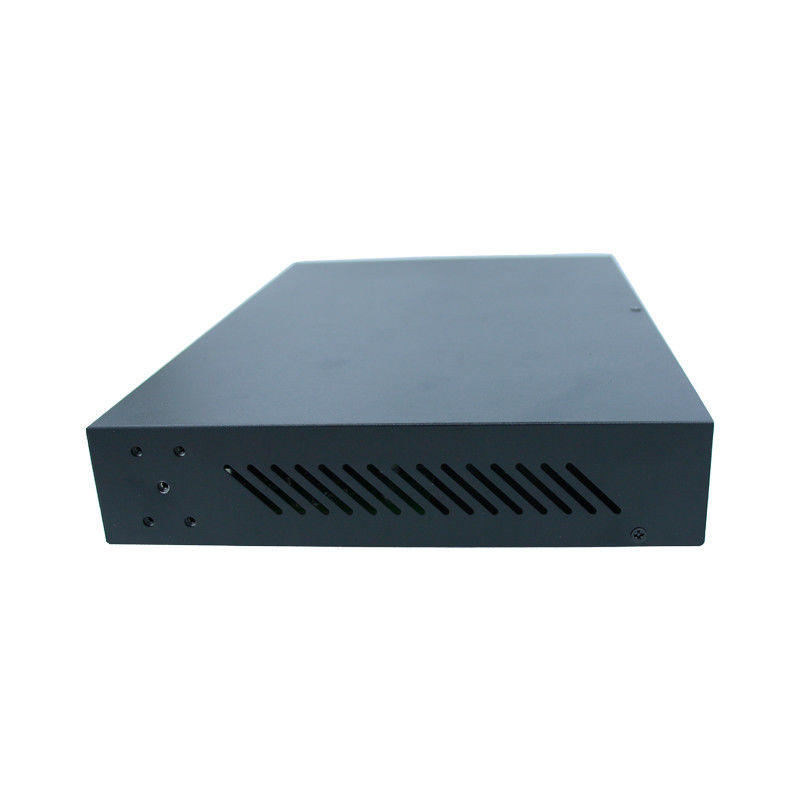

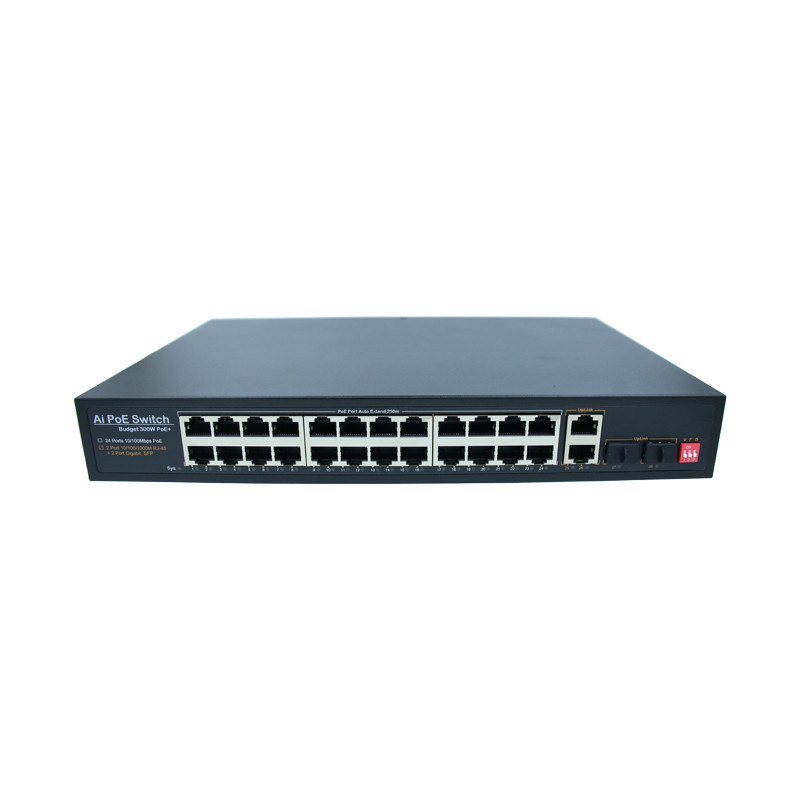

Unmanaged Intelligent Smart Poe Switch 24 Port IEEE802.3  IEEE802.3u  IEEE802.3x 0Unmanaged Intelligent Smart Poe Switch 24 Port IEEE802.3  IEEE802.3u  IEEE802.3x 1Unmanaged Intelligent Smart Poe Switch 24 Port IEEE802.3  IEEE802.3u  IEEE802.3x 2Unmanaged Intelligent Smart Poe Switch 24 Port IEEE802.3  IEEE802.3u  IEEE802.3x 3
