300Mbps Lte 4g Wifi Router 4LAN/WAN Port Mobile Router 4g Wifi With SIM Slot
Product Description
WR200 is a high-performance Wi Fi all network 4G wireless industrial router tailored for the Industrial internet of things scenario. It integrates 4G LTE, 802.11b/g/n 300M Wi Fi, eSIM/external SIM card software switching, 10/100M adaptive Ethernet interface (4LAN and 1WAN/LAN), 485/232 serial port, 48V PoE WAN, DC 9-48V wide voltage input, IoT platform access, Ali Iot MQTT access, 485 transparent transmission, VPN and Tr069 platform centralized management, etc. Provide advanced internet connectivity and high-speed data access for devices, while helping enterprise customers achieve efficient large-scale network deployment and management.
Fully industrial design, stable and reliable
Designed with fully industrial components and metal casing, with a protection level of up to IP30; Supports wide voltage DC 9-48V wide voltage input and has power reverse protection function; Support multiple protections such as static electricity, surge, and fast electrical pulse trains; Built in software and hardware watchdog for fault self detection and self repair, ensuring long-term stable operation of the system; Adapted to various harsh industrial environments, it can operate stably and reliably for a long time without the need for manual intervention.
Rich interfaces and strong scalability
Supports RS232&RS485 serial port device access and data transmission, making it easy to connect various serial port devices to internet servers and achieve real-time data monitoring.
Free VPN support for remote network resource sharing
Support PPTP and L2TP VPN client connection methods, establish a dedicated network on the public network, achieve interconnection between devices on the public network, meet various needs of users for remote access to internal network resources, and achieve remote network resource sharing.
Continuous product feature updates and performance optimization
The R&D team, adhering to the spirit of craftsmanship, has been constantly updating its functions to meet various network environment needs in a simple and efficient manner; Carefully crafted performance optimization ensures the provision of the highest quality network products and enhances user experience.
Specification
| Product parameters | |
| hardware configuration | |
| Main chip |
MTK7628NN High performance enterprise grade chips |
| Main frequency | 880MHz |
| Wireless technology | 802.11b/g/n 300M MIMOtechnology; |
| Flash memory | 16MB |
| Memory | 128MB |
|

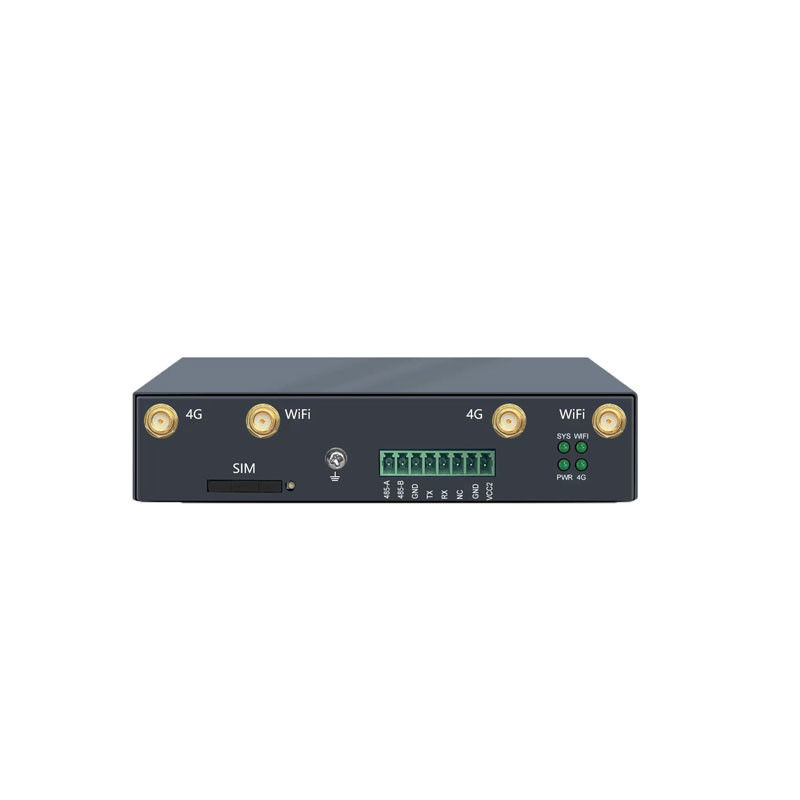

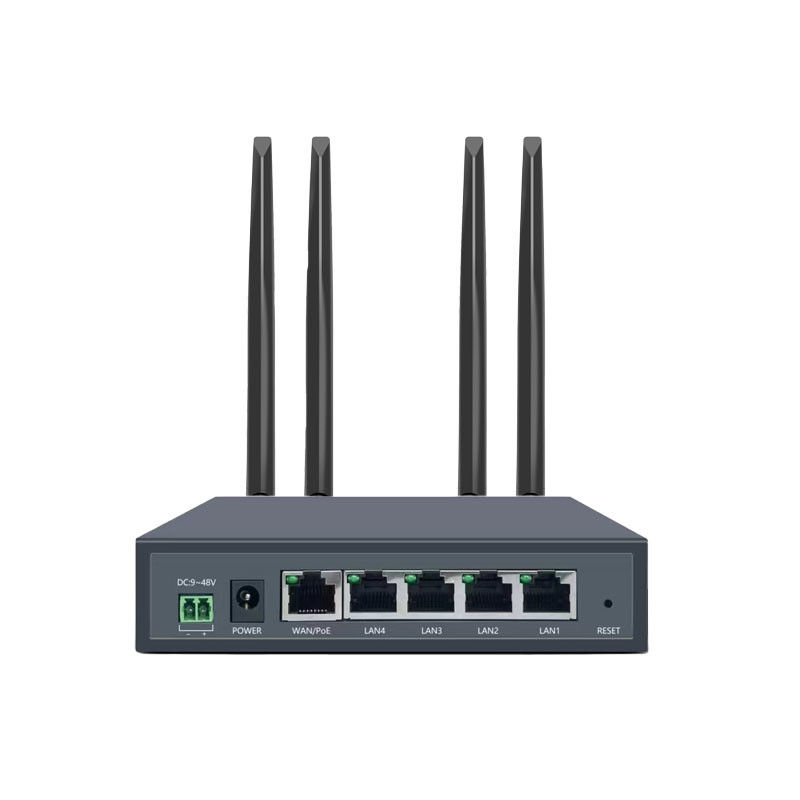

Device interface
|
WAN 10/100/100Mbps Adaptive network interface *1 LAN 10/100/100Mbps adaptive network interface * 4 RS232/485 serial port Stand SIM card, large card Ground wire interface |
| Antenna |
External 2.4G 5dBi stick antenna * 2 External 4G 5dBi stick antenna * 2 |
| Power supply | DC 9-48V/Phoenix terminal,48V PoE |
| Keys | 1 RESET reset button, press and hold for 5 seconds to Factory reset |
| Indicator light |
PWR,SYS,WiFi,4G,Ethernet port indicator light
|
| Size/Weight | N/A |
| Working/Storage Temperature | -40℃~45℃/-20℃~70℃ |
| Working/Storage Humidity | 5%~95%(non-condensing) |
Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Our products are sold all over the world, you can rest assured.
