Dual Band Gigabit Wifi6 5g Wireless Router PCBA Chip MT7981B+MT7976 5g Router
Product Description
Adopt MT7981B main chip, main frequency up to 1.3GHZ; With independent MT7976CN WIFI6 chip, total speed up to 3000Mbps; High-speed 512 DDR3, with 32MB SPI NOR Flash; 1WAN+4LAN 1000M adaptive network port ;
Support "one-key flashing mode", long press the reset button to enter the recovery mode;
Support "one key " MESH network;
Built-in dual M.2 interfaces, can be used to install 5G cellular modules;
External standard Nano SIM card slot ,also built-in eSIM card slot;
Specification
| WS1698 Hardware Specifications | |
| Hardware Specifications |
MT7981B+MT7976CN+MT7531AE Dual Core 1.2GHZ DDR3 memory 512MB SPI FLASH 32MB((Optional nand flash)) |
| WIFI Chip | MT7976CN IEEE 802.11n/g/b/a/ac/ax,Max. 3000Mbps |
| Protocol Standards | IEEE802.11n/g/b/a/ac/ax,IEEE802.3/802.3u |
| Wireless Rate | Dual-band concurrent up to 3000Mbps |
| Operating band | 2.4GHz 5.8GHz |
| 4G 5G Modem | 4G or 5G modules can be selected, and the frequency band can be selected,Support Cat4/6/12/16/20 |
| Output Power |
11n:17dBm±1dBm 11g: 17dBm±1dBm 11b: 19dBm±1dBm 11a: 19dBm±1dBm 11ac: 18dBm±1dBm 11AX: 19dBm±1dBm |
| Receiving sensitivity |
11N HT20 MCS7: -72dBm 11N HT40 MCS7: -69dBm 11G 54Mbps: -74dBm 11B 11Mbps: -86dBm 11A 54Mbps: -73dBm 11AC VHT20 MCS8: -66dBm 11AX VHT20 MCS8: -66dBm |
| Antenna |
4 x 7dbi high gain omni-directional wifi antennas, 4 x 5dbi high gain omni-directional 4G5G antennas |
| Interface |
1*10/100M/1000M WAN port with automatic MDI/MDIX with LED 4*10/100M/1000M LAN ports, auto MDI/MDIX with LED 1*USB 3.0 port 1*PCI-E 1*M.2 1*SIM card 1*SD card(SMD SD memory card) |
| LED | Power/WIFI/4G/5G |
| Button | 1 Reset button,1 MESH button |
| Power adapter | DC 12/3000mA |
| Maximum power consumption | < 24W |
| Color scheme | Black |
| Accessories and Packaging |
Egg separator paper tray 32*21*6cm *1PCS Whole box: 43.1*28.5*34.8 10PCS Power adapter 12V/2A *1PCS Super Category 5 network cable *1PCS |

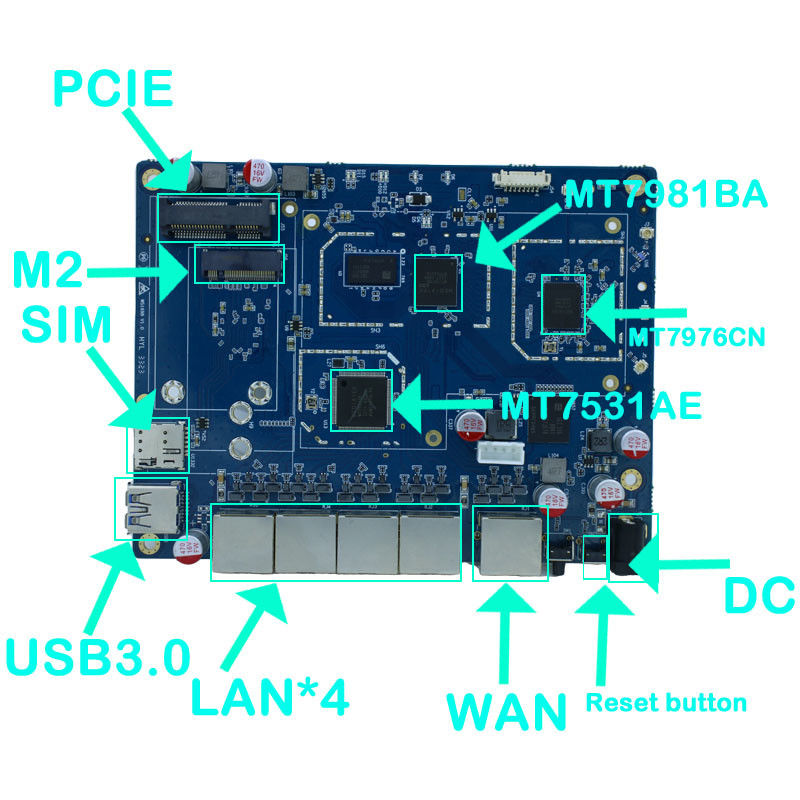

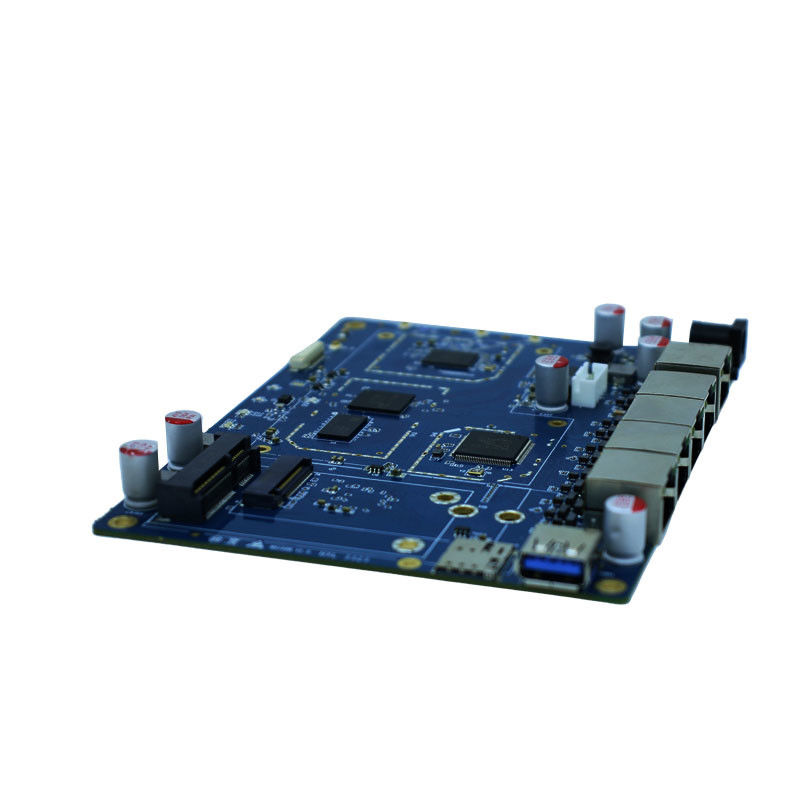

Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Our products are sold all over the world, you can rest assured.
