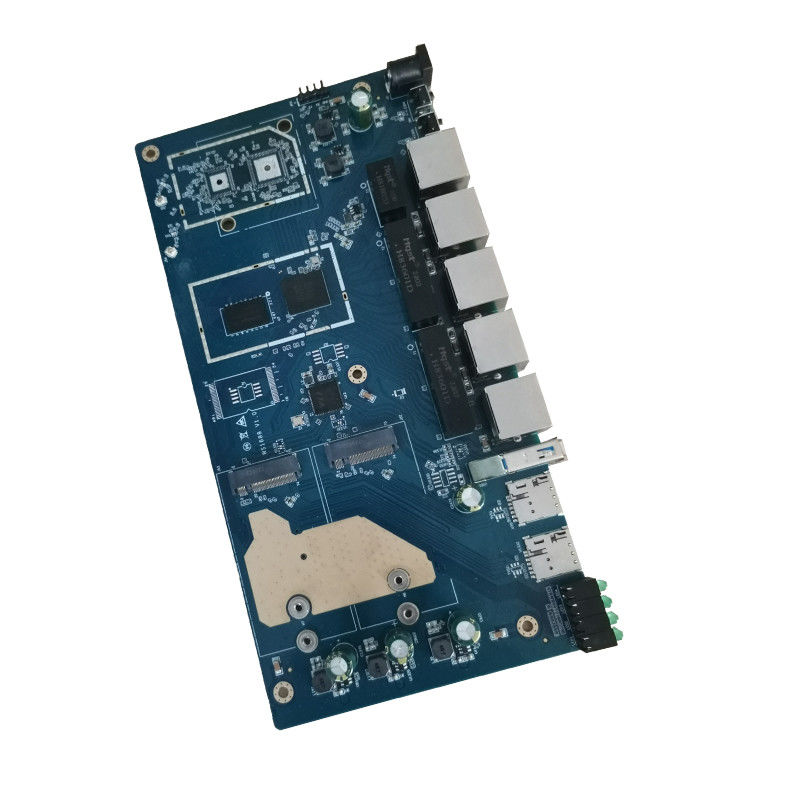

WS1688 5G LTE Router PCB Board 1800Mbps With Dual Sim Card Slot

WS1688 5G LTE Router PCB Board 1800Mbps With Dual Sim Card Slot

  • High Light

    5G LTE Router PCB Board

    ,

    Router PCB Board With Dual Sim

  • WIFI
    802.11 A/b/g/n/ac/ax
  • Power Supply
    DC 12V 2A
  • RAM
    256MB
  • Flash
    16 MB
  • Storage Temperature
    -40℃ To 70℃
  • Function
    FireWall, QoS, VPN
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    WS1688-PCBA
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    15*15*5 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

WS1688 5G LTE Router PCB Board 1800Mbps With Dual Sim Card Slot

WS1688 5g Lte Router PCBA 1800Mbps Wifi6 5g Wifi Router With Dual Sim Card Slot



Product Description

  A high-performance industrial-grade 5G WiFi6 router product supporting 802.11ax technology, using MT7621+MT7915+MT7975 high-performance SoC kit, with 16MB flash memory and 256MB memory, industrial-grade circuit design, supporting IEEE802.11a/b/g/n/ ac/ax protocol, work in 2.4G & 5.8G wireless frequency band, and meet the needs of 128 people at the same time wireless high-speed Internet access. Full Gigabit network interface, supports up to 573Mbps wireless access speed in 2.4G 802.11ax mode, supports up to 1201Mbps wireless access speed in 5.8G 802.11ax mode, supports single SIM and dual SIM card modes, supports installation of 4G5G modules , has the characteristics of high performance, high gain, high receiving sensitivity, high bandwidth, high access number, etc., not only can cover a larger range, but also can provide higher wireless transmission performance and stability.



Hardware facilities

  • The latest WIFI6 dual-core network chipset MT7621A+MT7975+MT7915
  • Provides 5 Gigabit Auto MDI/MDIX Ethernet ports
  • Provide 1*USB3.0 port and 2*M.2 port
  • Provides 1 Micro SD card slot (built-in)
  • Provide 2*SIM Nano SIM card slot
  • Provide 1* reset button
  • Provide 1*DC power interface

Software

  Pre-installed OpenWRT or Rooter firmware supports "one-key flash mode", that is, long press the reset button to enter flash mode, which supports secondary development.
  Can support the current mainstream M.2 interface modem, such as Quectel EM12 EM20 EM160 R500Q R502Q; Dell DW5821e Fibocom; FM150 and other brands



Specification



                                     WS1688/Hardware Specifications
Hardware Specifications

MT7621A+ MT7975+MT7915 Dual-core WIFI6

DDR3 RAM 256MB

SPI FLASH 16MB
Protocol standard

2.4G WiFi 2*2 802.11b/g/n/ax(Theoretical maximum speed up to 573Mbps)

5.8G WiFi 2*2 802.11a/n/ac/ax(Theoretical maximum speed up to 1201Mbps)

1024QAM Ultra-high-speed access rate,OFDMA Ultra-high-density user access

MU-MIMO/MU-OFDMA Up/Down

BSS Color Spatial multiplexing
Wireless rate Dual-band concurrency up to 1800Mbps
Working frequency 2.4GHz 5.8GHz
4G5G frequency band Frequency bands can be customized, support domestic and foreign customization
Antenna 2*5dbi high-gain omnidirectional wifi antennas, 6*5dbi high-gain omnidirectional 4G5G antennas (optional)
interface

1*10/100M/1000M WAN port,automatic MDI/MDIX

4*10/100M/1000M LAN port,automatic MDI/MDIX

1*USB 3.0 port

2*M.2

2*Nano SIM card slot

1*SD card
LED power/2.4G/5.8G/5G-1/5G-2/SYS/USB/Mesh
Button 1* Reset button
Power Adapter DC 12/2000mA
Maximum power consumption < 24W

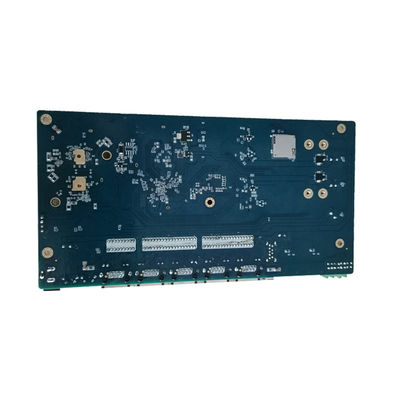

Details Images

WS1688 5G LTE Router PCB Board 1800Mbps With Dual Sim Card Slot 0WS1688 5G LTE Router PCB Board 1800Mbps With Dual Sim Card Slot 1WS1688 5G LTE Router PCB Board 1800Mbps With Dual Sim Card Slot 2WS1688 5G LTE Router PCB Board 1800Mbps With Dual Sim Card Slot 3WS1688 5G LTE Router PCB Board 1800Mbps With Dual Sim Card Slot 4
