1200Mbps Dual Band Wifi Router PCB MT7621A Chipset For 5G Wifi Router

1200Mbps Dual Band Wifi Router PCB MT7621A Chipset For 5G Wifi Router

  • High Light

    Dual Band Wifi Router PCB

    ,

    MT7621A Chipset Wifi Router PCB

    ,

    Router PCB Board For 5G Router

  • Chipset
    MT7621A
  • WIFI
    802.11 A/b/g/n/ac
  • SIM Card Slot
    1 SIM Card Slot
  • Wireless Speed
    2.4GHz 300Mbps + 5GHz 867Mbps
  • Interface
    2 LAN /1 WAN
  • Button
    1 Reset Button
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    WS1209-PCBA
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    24*15*5 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

1200Mbps Dual Band Wifi Router PCB MT7621A Chipset For 5G Wifi Router

1200Mbps Dual Band Router 5g PCBA 5g Wifi Router For Various Mobile Vehicles



Product Description

  WS1209-5G is a 5G/4G+WiFi dual band 1200M industrial grade vehicle router, which supports three gigabit Ethernet communications, WIFI LAN (802.11 b/g/n/a/ac) communications and WAN 4G/5G wireless communication functions. The device is loaded with WAN communications, WIFI LAN transmission security certification, 5G/4G/3G system watchdog and other functions, realizing seamless connection between WLAN and wireless WAN, automatic redial when disconnected, and providing users with high-speed Safe and reliable mobile broadband service;

  The equipment adopts metal shell, special vehicle anti-interference design, good anti-interference performance, and safe anti-theft frame. The on-board special power supply design is adopted to support the on-board 12V and 36V power supply systems, which can effectively prevent the damage of the on-board power supply fluctuation to the equipment. It is applied to the WIFI wireless Internet access of various mobile vehicles, such as bus WIFI, long-distance bus WIFI, bullet train WIFI and taxi WIFI. At the same time, the equipment is also widely used in the WIFI coverage of scenic spots and other public places.



Specification



WS1209-5G Hardware Specifications
Hardware Specifications

MT7621A Dual Core 880MHZ

DDR3 memory 256MB

SPI FLASH 16MB

4G 5G Modem 4G or 5G modules can be selected, and the frequency band can be selected,Support Cat4/6/12/16/20
Interface

1*10/100M/1000M WAN port with automatic MDI/MDIX

2*10/100M/1000M LAN ports, auto MDI/MDIX or 2PCS LAN can be selected.

1*USB 2.0 port

1*PCI-E

1*M.2

1*SIM card

1*SD card

1*4PIN Power interface

LED Power/SYS/USB/2.4G/5.8G/4G5G/USB
Button 1 Reset button
Power adapter 9V-36V Vehicle wide voltage
Maximum power consumption < 24W
Color scheme Black



Details Images

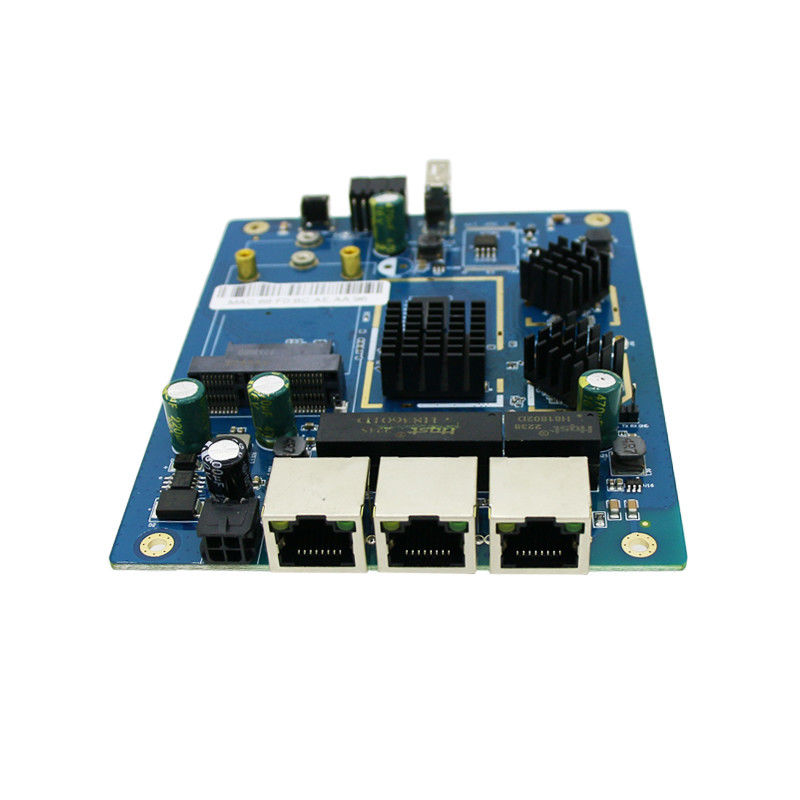

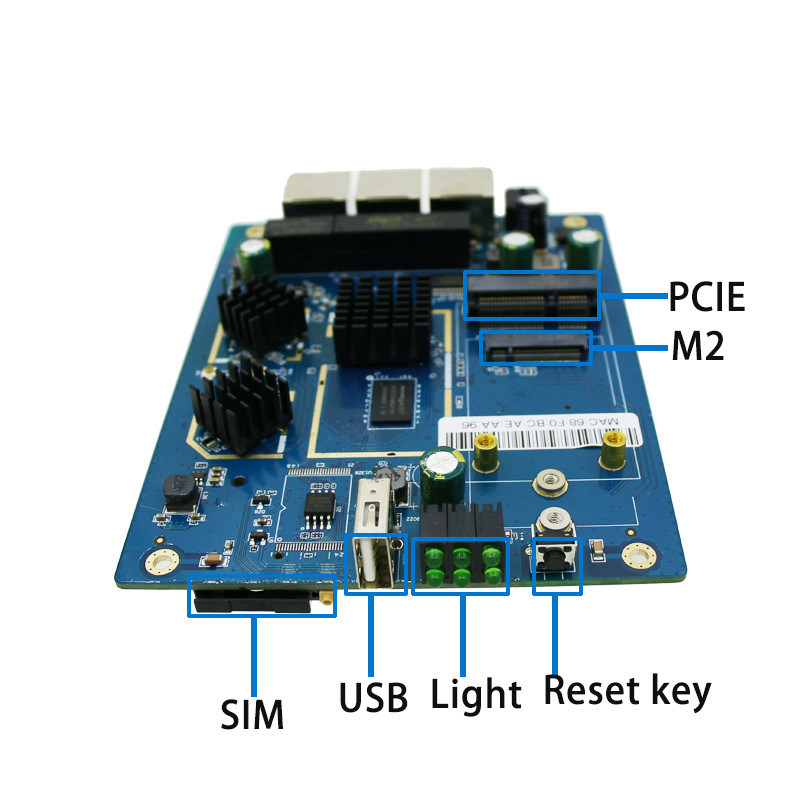

1200Mbps Dual Band Wifi Router PCB MT7621A Chipset For 5G Wifi Router 01200Mbps Dual Band Wifi Router PCB MT7621A Chipset For 5G Wifi Router 11200Mbps Dual Band Wifi Router PCB MT7621A Chipset For 5G Wifi Router 21200Mbps Dual Band Wifi Router PCB MT7621A Chipset For 5G Wifi Router 31200Mbps Dual Band Wifi Router PCB MT7621A Chipset For 5G Wifi Router 4
