Gigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte Router

Gigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte Router

  • High Light

    fcc 5g wifi 6 router

    ,

    12v 5g wifi 6 router

    ,

    chipset mt7981b 5g router wifi 6

  • Chip
    MT7981B+MT7976CN+MT7531AE
  • SIM Card Slot
    1 SIM Card Support
  • Antenna
    4* 5dBi Antennas+4*7dBi Antennas
  • Wireless Speed
    3000Mpbs
  • Interface
    1 WAN+4 LAN
  • WIFI
    802.11 A/b/g/n/ac/ax
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    WS1698
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    32*21*6cm 1PCS
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

Gigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte Router

Gigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte Router



Product Description

Adopt MT7981B main chip, main frequency up to 1.3GHZ; With independent MT7976CN WIFI6 chip, total speed up to 3000Mbps; High-speed 512 DDR3, with 128MB SPI Nand Flash(16GB EMMC optional)

1WAN+4LAN 1000M adaptive network port ;
Support "one-key flashing mode", long press the reset button to enter the recovery mode;
Support "one key " MESH network;
Built-in dual M.2 interfaces, can be used to install 5G cellular modules;
External standard Nano SIM card slot ,also built-in eSIM card slot;



Specification



                                           WS1698 Hardware Specifications
Hardware Specifications

MT7981B+MT7976CN+MT7531AE Dual Core 1.2GHZ

DDR3 memory 512MB

SPI NAND FLASH 128MB(16GB EMMC optional)

WIFI Chip MT7976CN IEEE 802.11n/g/b/a/ac/ax,Max. 3000Mbps
Protocol Standards IEEE802.11n/g/b/a/ac/ax,IEEE802.3/802.3u
Wireless Rate Dual-band concurrent up to 3000Mbps
Operating band 2.4GHz 5.8GHz
4G 5G Modem 4G or 5G modules can be selected, and the frequency band can be selected,Support Cat4/6/12/16/20
Output Power

11n:17dBm±1dBm

11g: 17dBm±1dBm

11b: 19dBm±1dBm

11a: 19dBm±1dBm

11ac: 18dBm±1dBm

11AX: 19dBm±1dBm

Receiving sensitivity

11N HT20 MCS7: -72dBm

11N HT40 MCS7: -69dBm

11G 54Mbps: -74dBm

11B 11Mbps: -86dBm

11A 54Mbps: -73dBm

11AC VHT20 MCS8: -66dBm

11AX VHT20 MCS8: -66dBm

Antenna

4 x 7dbi high gain omni-directional wifi antennas,

4 x 5dbi high gain omni-directional 4G5G antennas

Interface

1*10/100M/1000M WAN port with automatic MDI/MDIX with LED

4*10/100M/1000M LAN ports, auto MDI/MDIX with LED

1*USB 3.0 port

1*PCI-E

1*M.2

1*SIM card

1*SD card(SMD SD memory card)

LED Power/WIFI/4G/5G
Button 1 Reset button,1 MESH button
Power adapter DC 12/3000mA
Maximum power consumption < 24W
Color scheme Black
Accessories and Packaging

Egg separator paper tray 32*21*6cm *1PCS

Whole box: 43.1*28.5*34.8 10PCS

Power adapter 12V/2A *1PCS

Super Category 5 network cable *1PCS

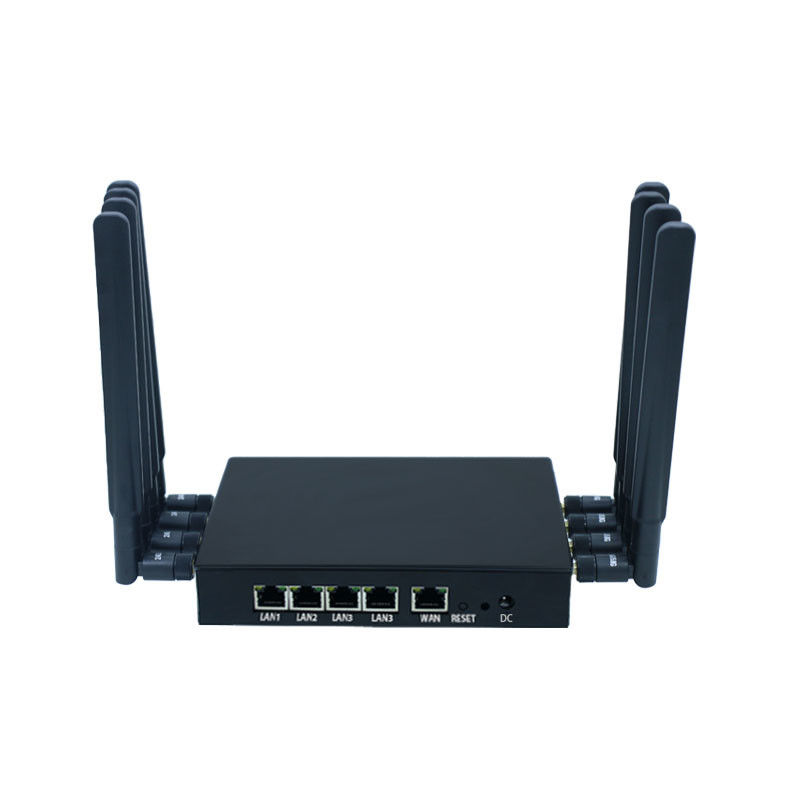

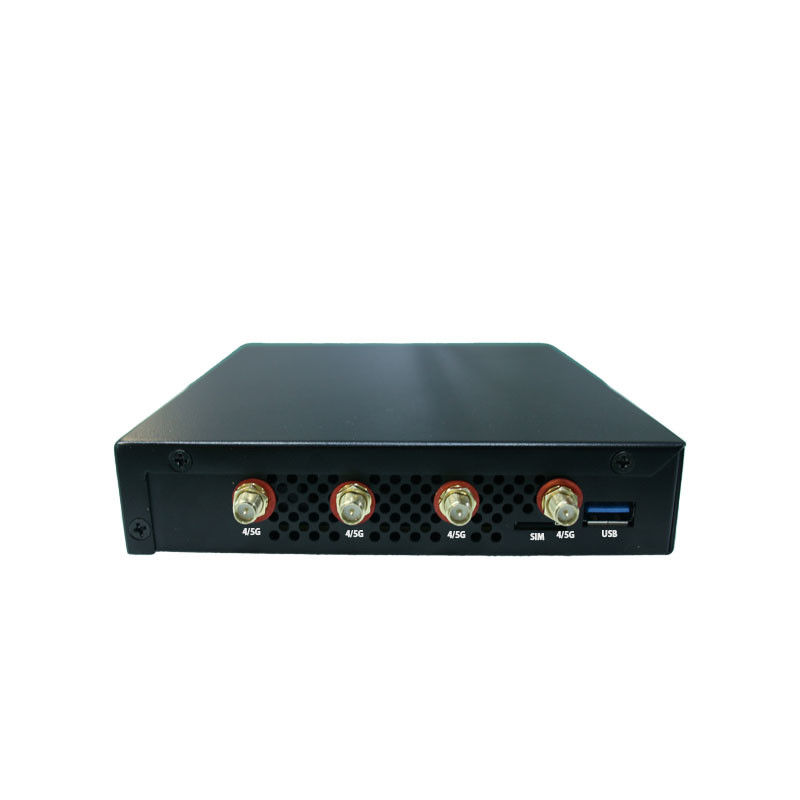

Details Images

Gigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte Router 0Gigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte Router 1Gigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte Router 2Gigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte Router 3Gigabit Dual Band Wifi6 Router 5g Chipset MT7981B 12V DC Power 5g Lte Router 4
