Outdoor 3000Mbps Wifi Router 5g Chip MT7981B Dual Band 5g Wireless Router
Product Description
5G Smart Router System (CPE), is based on brand-new embed platform, it can be satisfied with growing-up mobile connections requirements and provides the fast speed beyond your imagination.
The CPE is compatible with NSA/SA dual-mode, suits to all network types all over the world, it means you just plug and play it and enjoy the ultra-fast broadband connection at any places.
CPE brings new ways to experience VR/AR/4K/8K streaming freely and easily. Built-in 802.11ax (Wi-Fi 6) Technology,
Outdoor 5G, the waterproof level is up to IP66, the appearance is exquisite and beautiful, and it is suitable for various installation methods: wall hanging, pole holding.
Specification
| WS1698-H Hardware Specifications | |
| Hardware Specifications |
MT7981B+MT7976CN+MT7531AE Dual Core 1.2GHZ DDR3 memory 512MB SPI NAND FLASH 128MB (16GB EMMC optional) |
| WIFI Chip | MT7976CN IEEE 802.11n/g/b/a/ac/ax,Max. 3000Mbps |
| Protocol Standards | IEEE802.11n/g/b/a/ac/ax,IEEE802.3/802.3u |
| Wireless Rate | Dual-band concurrent up to 3000Mbps |
| Operating band | 2.4GHz 5.8GHz |
| Antenna |
4PCS 8Dbi 5G Antenna 4PCS 8Dbi wifiAntenna |
|
5G NR
|
NSA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79 |
|
SA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79 |
|
| LTE |
LTE-FDD B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71 |
|
LTE-TDD B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48 |
|
|
LAA B46 |
|
| UMTS |
WCDMA B1/ 2/ 4/ 5/ 8/ 19 |
| GNSS | GPS/ GLONASS/ BDS/ Galileo/ QZSS |
|
5G SA Sub-6 5G NSA Sub-6 LTE WCDMA |
DL 2.4 Gbps; UL 900 Mbps DL 3.4 Gbps; UL 550 Mbps DL 1.6 Gbps; UL 200 Mbps DL 42 Mbps; UL 5.76 Mbps |
| Output Power |
11n:17dBm±1dBm 11g: 17dBm±1dBm 11b: 19dBm±1dBm 11a: 19dBm±1dBm 11ac: 18dBm±1dBm 11AX: 19dBm±1dBm |
| Receiving sensitivity |
11N HT20 MCS7: -72dBm 11N HT40 MCS7: -69dBm 11G 54Mbps: -74dBm 11B 11Mbps: -86dBm 11A 54Mbps: -73dBm 11AC VHT20 MCS8: -66dBm 11AX VHT20 MCS8: -66dBm |
| Antenna |
4 x 8dbi high gain omni-directional wifi antennas, 4 x 8dbi high gain omni-directional 4G5G antennas |
| Interface |
1*10/100M/1000M WAN port with automatic MDI/MDIX with LED 4*10/100M/1000M LAN ports, auto MDI/MDIX with LED 1*USB 3.0 port 1*PCI-E 1*M.2 1*SIM card 1*SD card(SMD SD memory card) |
| waterproof rating | IP67 |
| LED | WIFI |
| Button | 1 Reset button, |
| Power adapter | POE 24V/1A |
| Maximum power consumption | <24W |
| Color scheme | white |

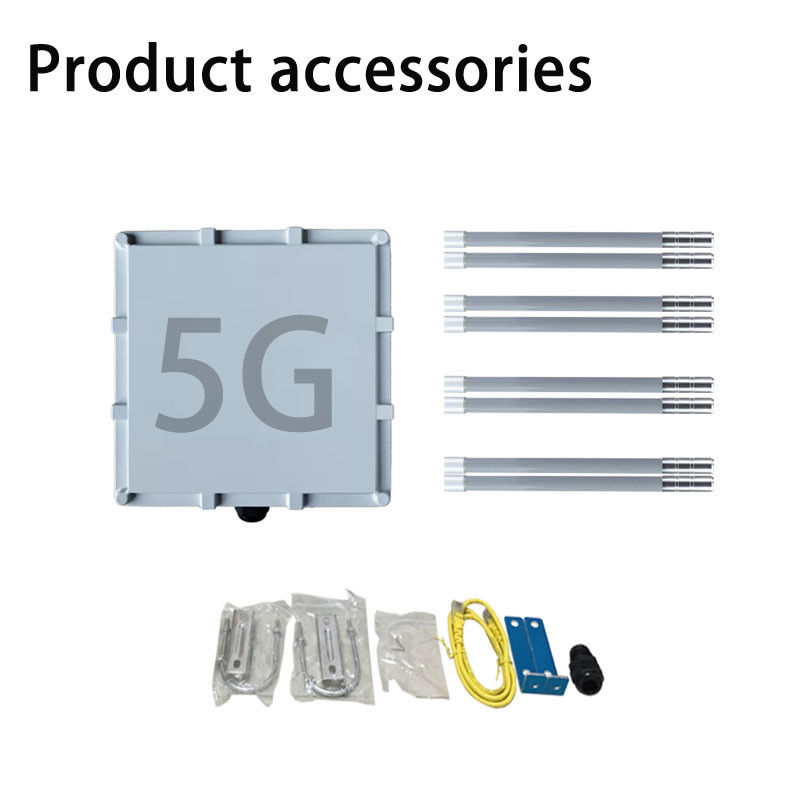

| Accessories and Packaging |
POE 24V/1A Super Category 5 network cable *1PCS Bracket
|

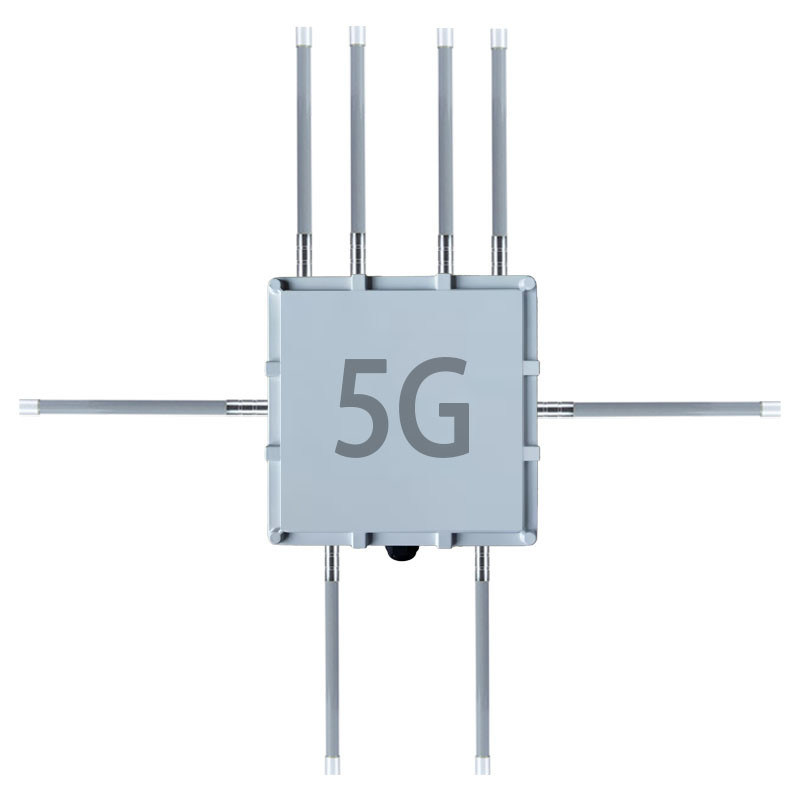

Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Our products are sold all over the world, you can rest assured.
