Original Factory New 300Mbps 4g Lte Router Black Iron Shell 4g Wifi Router For Home
Product features
Specification
Hardware specifications | ||
hardware system
|
master control | MT7620A |
FLASH | 16MB | |
DDR | 128MB | |
4G module | EC200A/EC20/EC25/EP06 | |
Wireless parameters | Protocol standards | IEEE 802.11 b/ g/ n |
Working frequency band | 2.4GHz:2412MHz~2472MHz | |
Wireless rate | 300Mbps Max | |
4G rate |
LTE-FDD:Maximum downlink speed 150Mbps, maximum uplink speed 50Mbps LTE-TDD:Maximum downlink speed 130Mbps, maximum uplink speed 30Mbps |
|
Transmission power | 18dBm Max | |
physical interface | network interface |

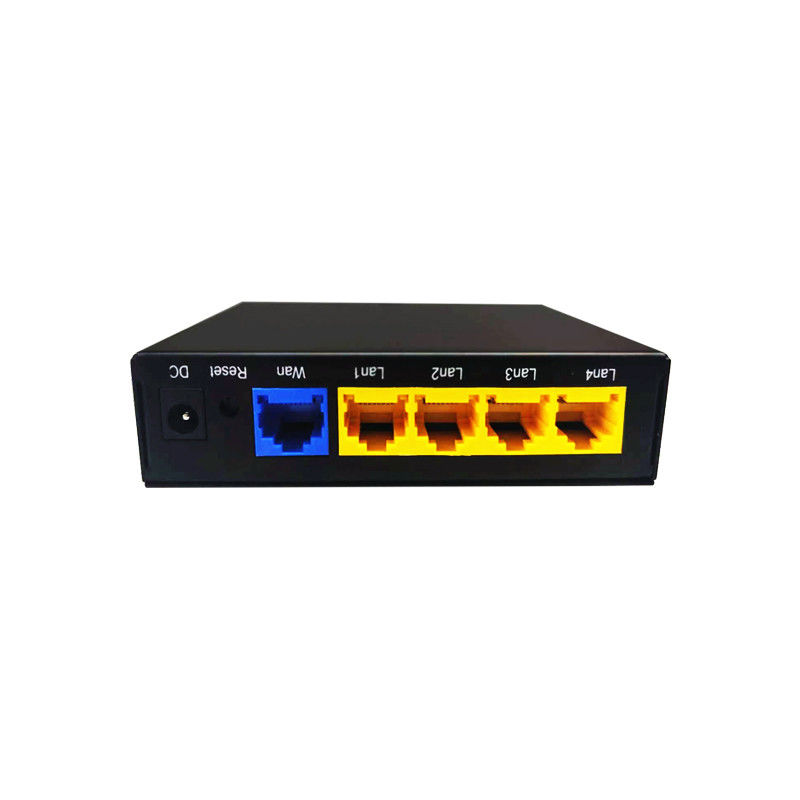

1 10/100 Mbps RJ45 Ethernet WAN port 4 10/100 Mbps RJ45 Ethernet LAN ports |
Power supply interface |
1 DC power port, supporting 12V DC power supply
|
|
SIM card interface | 1 standard pop-up Mini SIM card slot | |
Key switch | 1 RESET reset button | |
PCI-E interface | 1 built-in PCI-E interface (optional or replaceable 4G modules of different brands) | |
Antenna interface |

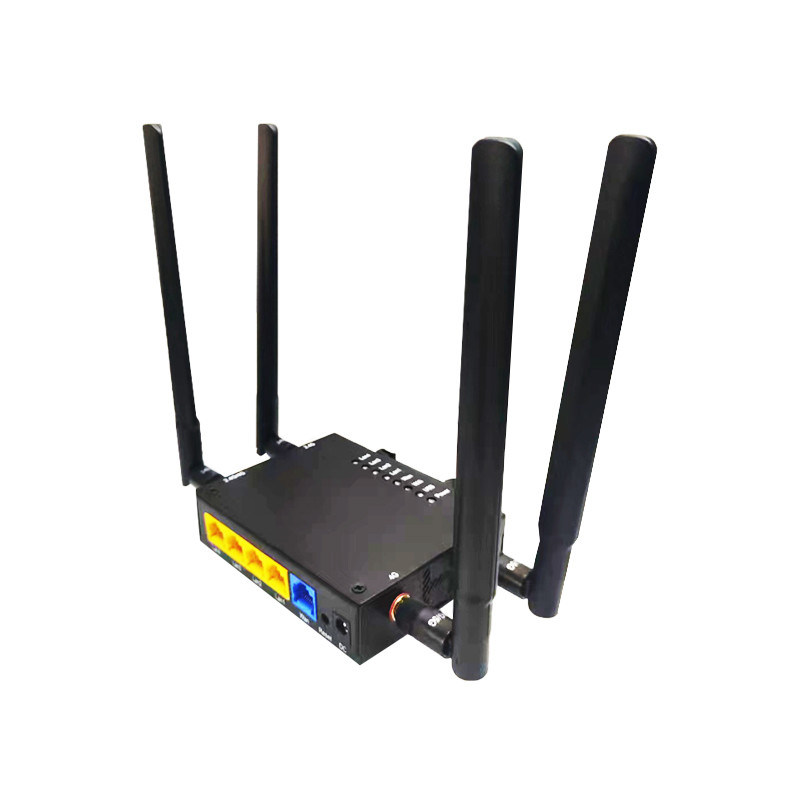

2 standard SMA interfaces for 4G antennas (external interface, interchangeable with different antennas) 2 WIFI antenna standard SMA interfaces (external interface, can replace different antennas) |
|
pilot lamp | LED indicator light | Respectively POWER,4G,WIFI,WAN,LAN1,LAN2,LAN3, LAN4 |
Power supply/power consumption | Power supply method |
DC 12V~1A power supply
|
product accessories | main engine | Industrial grade intelligent 4G router host * 1 |
DC adapter | DC 12V/1A | |
antenna |
Two 5dBi high gain omnidirectional WIFI antennas Two 5dBi high gain omnidirectional 4G antennas |
|
other | User manual * 1, warranty card * 1, certificate of conformity * 1 | |
Appearance/Packaging | Product size |
External dimensions (length * width * height): 110mm * 90mm * 30mm (excluding antenna) Antenna height: 190mm |
Appearance material | Iron shell, frosted surface | |
Appearance color | Black (customizable appearance color) | |
weight | 1.5kg | |
other | Protection level | IP31,2KV lightning protection |
Installation method | Desktop and wall mounted | |
Usage environment |
Working temperature: -10 ℃~55 ℃ Storage temperature: -40 ℃~70 ℃ Working humidity: 10%~90% RH non condensing Storage humidity: 5%~95% RH non condensing |
Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
