5g Wireless Wifi6 Router Chip MT7981B 3000Mbps 5g Lte Router With SIM Slot

5g Wireless Wifi6 Router Chip MT7981B 3000Mbps 5g Lte Router With SIM Slot

  • High Light

    MT7981B 5g Wireless Wifi6 Router

    ,

    3000Mbps 5g Wireless Wifi6 Router

    ,

    SIM Slot 5g Wireless Wifi6 Router

  • Wireless Speed
    3000Mbps
  • WIFI
    802.11 A/b/g/n/ac/ax
  • RAM
    512MB DDR3
  • Flash
    32MB
  • CPU
    MT7981BA+ UNISOC 5G
  • Power Supply
    DC 12V 2A
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    MC01ZR
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    35*10*10 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

5g Wireless Wifi6 Router Chip MT7981B 3000Mbps 5g Lte Router With SIM Slot

High Quality 5g Wireless Wifi6 Router Chip MT7981B 3000Mbps 5g Lte Router With SIM Slot

Product Description



5G & WiFi-6 Smart Router System (CPE), is based on brand-new embed platform, it can be satisfied with growing-up mobile connections requirements and provides the fast speed beyond your imagination.

The CPE is compatible with NSA/SA dual-mode, suits to all network types all over the world, it means you just plug and play it and enjoy the ultra-fast broadband connection at any places.

The CPE brings the new way to enable you experience VR/AR/4K/8K streaming freely and easily. With 802.11ax (Wi-Fi 6) technology built-in, the single CPE has wider wireless coverage and more bandwidth. Meanwhile the CPE brings higher security, better network efficiency and longer battery life.



Key Features

5G Cellular
Built-in 5g modem, it has best 5G mobile network performance and works with integrated world-wide 5G to 2G multi-mode.



Wi-Fi 6 (802.11ax)
The revolutionary Wi-Fi technology with OFDMA and DL MU-MUMI, faster wireless line,more client connection, lower latency, best network efficiency.



Higher Wireless Capacity
Dual-band 4 spatial streams, the CPE outputs 3000Mbps wireless bandwidth (600 + 2475), makes you peace of mine while enjoy UHD videos, online games at the home rush hours. It’s the future-proof investment absolutely.



Hybrid MESH+ Networking
The CPE inherits the mesh technology and supports “wired / wireless” hybrid networking. It’s so convenient to cover all corners and dead-zones by adding one more MESH+ node (another series of router). it improves the deployments of wireless network and optimized the seamless feature.



5G Datasheet

  • 5G Baseband: UNISOC V510 Modem-RF System
    Peak Downlink Rate:4.4Gbps Peak Uplink Rate:1500Mbps·
  • 5G Network Modes: SA (standalone), NSA (non-standalone)
  • 5G NSA Bands: N1/N3/N8/N28/N41/N77/N78/N79
  • 5G SA Bands: N1/N3/N8/N28/N41/N77/N78/N79
  • 5G SA Sub-6 DL2Gbps:UL 1Gbps
  • 5G NSA Sub-6 DL 2.2 Gbps; UL 575 Mbps
  • 5G SA Transmission Speed:2Gbps/1Gbps (up to ISPs)
  • 5G NSA Transmission Speed:2.2Gbps/575Mbps (up to ISPs)

4G Datasheet

  • LTE Category:Down Cat 16/ UP Cat 18
  • LTE-FDD:B1/B2/B3/B5/B7/B8/B20/B28A/ B28
  • LTE-TDD: B34/B38/B39/B40/B41
  • LTE Down 4 × 4 MIMO:B1/B2/B3/B5/B7/B8/B20/B28A/ B28/B34/B38/B39/B40/B41
  • WCDMA:B1/B2/B3/B4/B5/B8/B19
  • LTE :Down 1.6 Gbps;UP 200 Mbps

WIFI6 Datasheet

WiFi 6(802.11ax)

  • Working Radio: #1: 600Mbps @ 2.4GHz; #2: 2475Mbps @ 5.1-5.8GHz
  • Coding Technology:1024-QAM / OFDMA
  • Peak Connections:>100+ Clients
  • Wi-Fi Standard Conformance:WiFi6 and 802.11ac / 802.11n backward
  • Antenna: built-in 4 pcs high performance antennas with 4 pcs external FEM components.

Data Switching

  • Mobile 4G/5G Connection (Support APN)
  • Giga Ethernet Connection
  • MESH:MESH+ hybird
  • 2.4G/5Ghz WiFi
  • Advanced Firewall
  • MAC Filter
  • WiFi Sercurity
  • VPN Passthrough and VPN Client (L2TP PPTP)
  • IPV4/IPV6
  • WEB / APP Mangement
  • Firmware upgrade

Hardware Specification

  • Chip:MT7981 +MT7976+MT7531
  • Ethernet:1*1Gbps WAN,2*LAN 1Gbps
  • 1* SIM Slot(Nano-SIM)
  • Reset button
  • MESH+ Button
  • MESH+ LED Switch
  • LED Indicator
    MESH+ Working Status (breathing light)
    4G Status
    5G Status
    WiFi Status
    Power Status
  • General
    Power Consumption:<20W
    DC Power Supply: 12V/2A
    Working temperature:0℃~40℃, Storage temperature: -20℃~+70℃
    Humidity:5%~95%

Specification

Model MC01ZR
CPU MT7981BA+ UNISOC 5G
Flash 32MB
RAM 512MB DDR3
WiFi Frequency 2.4G&5G
WiFi Standard 2.4G:802.11b/g/n /ax 2T2R MIMO, 5.8GHz:802.11a/n/ac/ax 2T2R MIMO
WiFi 2.4GHz :600Mbps ,5GHz :2475Mbps



Details Images

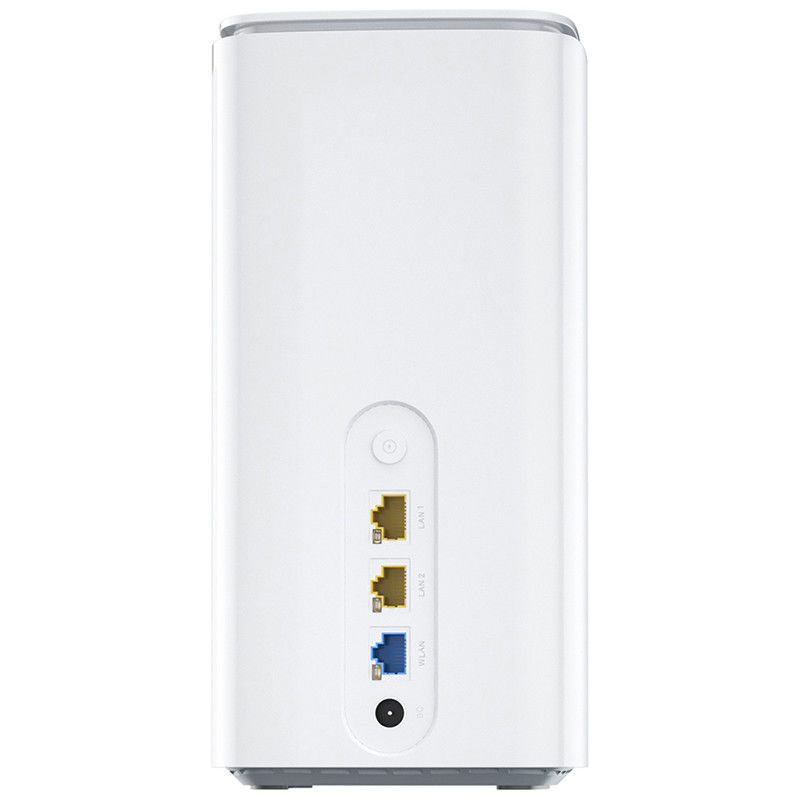

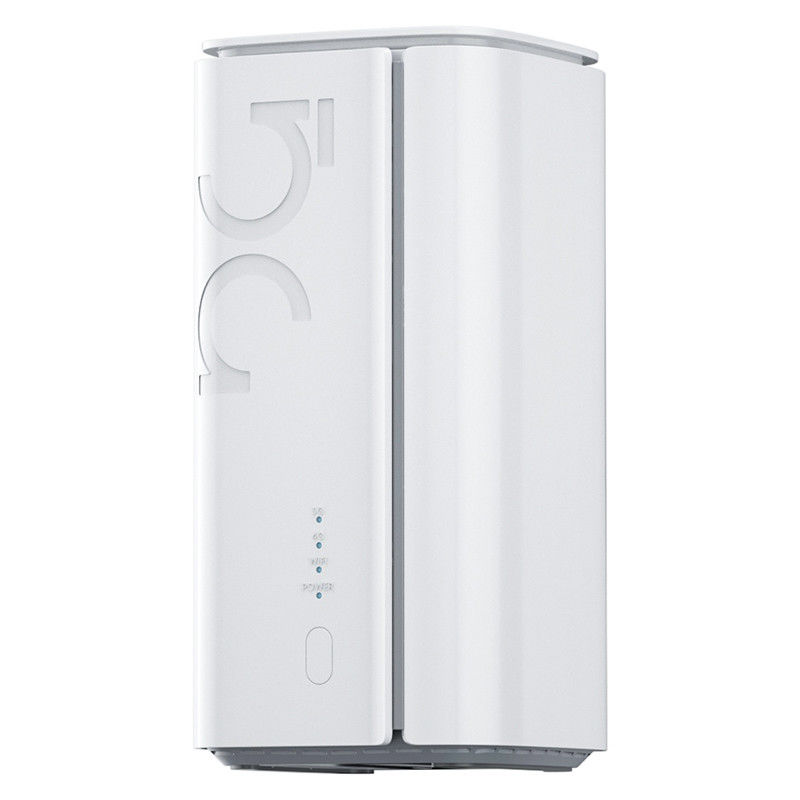

5g Wireless Wifi6 Router Chip MT7981B 3000Mbps 5g Lte Router With SIM Slot 05g Wireless Wifi6 Router Chip MT7981B 3000Mbps 5g Lte Router With SIM Slot 15g Wireless Wifi6 Router Chip MT7981B 3000Mbps 5g Lte Router With SIM Slot 2
