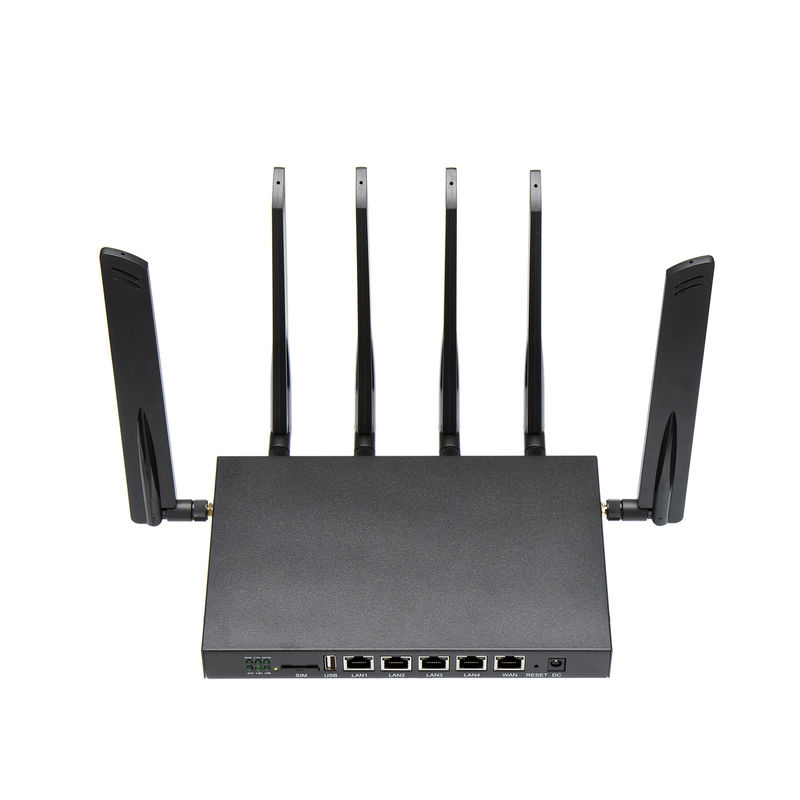

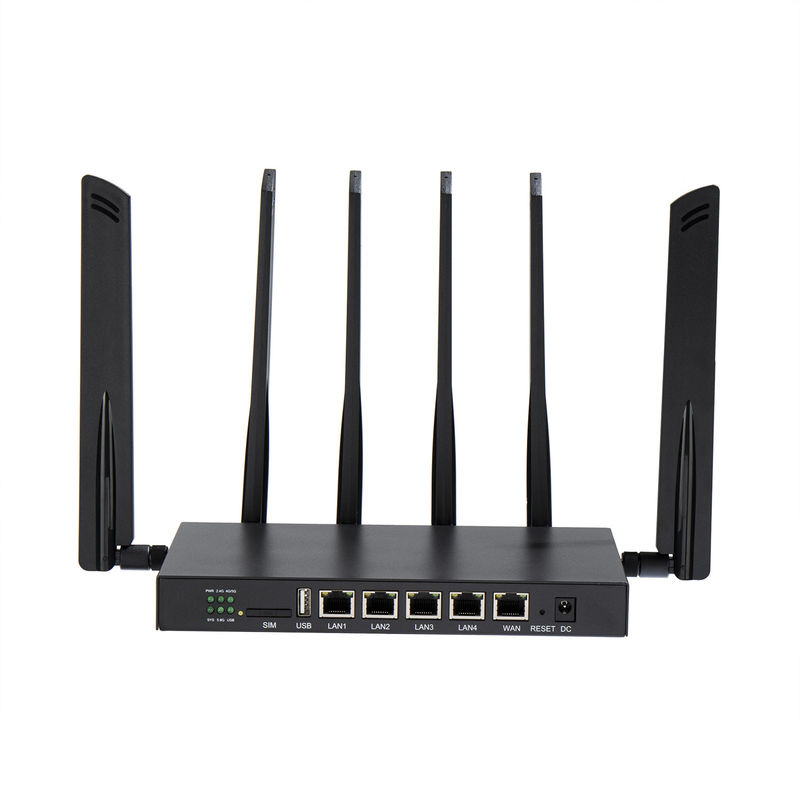

5g Wifi Router Black Metal Shell 1200Mbps Dual Band Wifi Router 5g With SIM Slot
Hardware
WS1208V2 uses the latest MMT7621A wireless solution with clock frequency up to 880MHZ, providing 5 Gigabit auto MDI/MDIX Ethernet ports, 1 x USB 2.0 port, 1 x PCI-E, 1 x M.2, 1 x Micro SD card
Wireless.
Support IEEE802.11AC/N/G/B/A wireless protocol, maximum wireless rate up to 1200Mbps, 6×5Dbi high gain antennas for better performance and coverage
Software
OpenWRT pre-installed.
Firmware support rooter.
Firmware support Quectel EC25 series EM/EP06 BG96 EM12 EM20 EM160 R500Q R502Q
Fibocom L850 L860 FM150 module, etc.
Modem band lock support
Specification
WS1208V2 Hardware Specifications | |
Hardware Specifications |
MT7621A Dual Core 880MHZ DDR3 memory 256MB SPI FLASH 16MB |
Protocol Standards | IEEE802.11n/g/b/a/ac,IEEE802.3/802.3u |
Wireless Rate | Dual-band concurrent up to 1200Mbps |
Operating band | 2.4GHz 5.8GHz |
4G 5G Modem | |
Output Power |
11n:17dBm±1dBm 11g: 17dBm±1dBm 11b: 19dBm±1dBm 11a: 19dBm±1dBm 11ac: 18dBm±1dBm |
Receiving sensitivity |
11N HT20 MCS7: -72dBm 11N HT40 MCS7: -69dBm 11G 54Mbps: -74dBm 11B 11Mbps: -86dBm 11A 54Mbps: -73dBm 11AC VHT20 MCS8: -66dBm |
Antenna |
2 x 5dbi high gain omni-directional wifi antennas, 4 x 5dbi high gain omni-directional 4G5G antennas |
Interface |
1*10/100M/1000M WAN port with automatic MDI/MDIX 4*10/100M/1000M LAN ports, auto MDI/MDIX 1*USB 2.0 port 1*PCI-E 1*M.2 1*SIM card 1*SD card |
LED | power/2.4G/5.8G/WAN/LAN1/LNA2/LNA3/LNA4 |
Button | 1 Reset button |
Power adapter | DC 12/1000mA |
Maximum power consumption | < 24W |
Color scheme | Black |
Accessories and Packaging |
Egg separator paper tray 32*21*6cm *1PCS Whole box: 43.1*28.5*34.8 10PCS Power adapter 12V/3A *1PCS Super Category 5 network cable *1PCS |
Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
