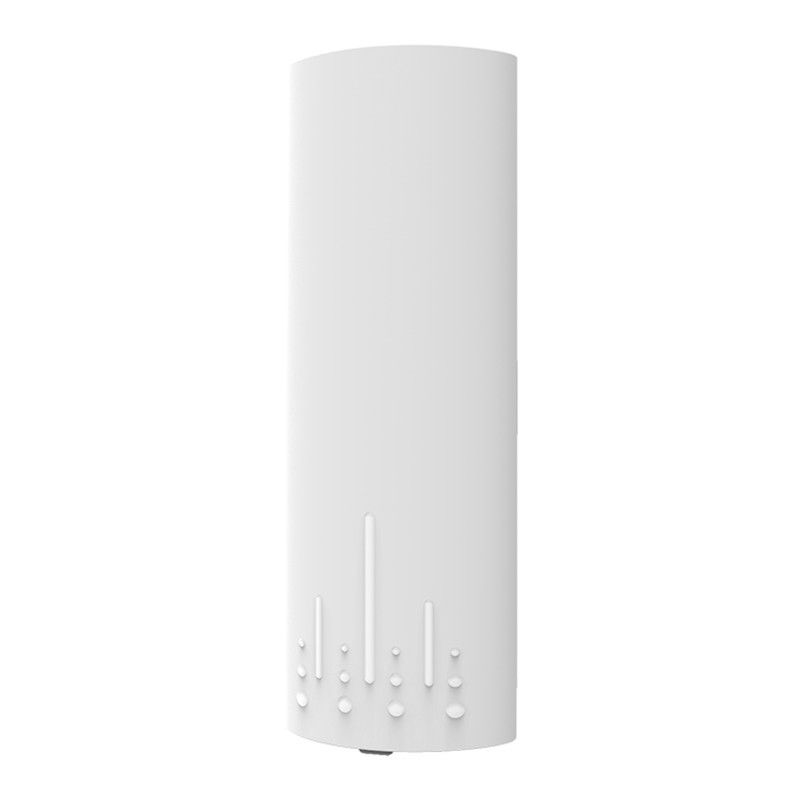

AR9344 Wireless Network Bridge 5.8g 3km Long Distance Wireless Bridge

AR9344 Wireless Network Bridge 5.8g 3km Long Distance Wireless Bridge

  • High Light

    AR9344 Wireless Network Bridge


    5.8g Long Distance Wireless Bridge


    3km Long Distance Wireless Bridge

  • Chipset
  • Antenna
    Built-in Antenna
  • Interface
    2*10/100Mbps RJ45
  • WIFI
    802.11 B/g/n
  • RAM
    64MByte DDR2
  • Flash
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    2 piece
  • Price
  • Packaging Details
    31*29*8 cm 2piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,,Paypal
  • Supply Ability
    1000PCS/45 days

AR9344 Wireless Network Bridge 5.8g 3km Long Distance Wireless Bridge

300Mbps Waterproof Outdoor 3km Long Range 5.8g Wireless Network Bridge


Product Description


CPE-S350 is a high-performance enterprise outdoor bridge product that works in the 5G band and supports 802.11ac technology. Unique digital tube pairing technology, no computer configuration, easy to complete the point-to-point, point-to-multipoint (within 8 points) device pairing. 100 megabit network interface, 5G 802.11ac wireless processing speed up to 300Mbps, flexible power supply, support 24V PoE network cable power supply and 12V 1A DC local power supply, network cable power supply distance up to 50-70 meters (depending on the network cable material). Outdoor IP65 windproof, rainproof, dustproof and sunproof protection grade housing design, easily adapt to various harsh outdoor environments. Built-in 14dBi high gain, wide angle directional plate antenna, easy and fast installation. With high performance, high gain, high receiving sensitivity, high bandwidth, etc., greatly enhancing the wireless transmission performance and stability, widely used in short and medium distance video transmission and data transmission.


Product Features

Super cost-effective hardware configuration
Enterprise-class host chip with industrial-grade circuit design supports IEEE802.11a/n/ac protocol, which can provide 300Mbps wireless access speed and 10/100Mbps Ethernet switching processing speed. Excellent anti-high and low temperature design, fully guarantee the user network data in the extreme environment can be real-time, long-term, stable, high-performance transmission, enhance the user experience.


Powerful wireless transmission capability
High power and high receiving sensitivity circuit design with high gain directional plate antenna greatly enhances the distance of wireless transmission and improves the performance and stability of wireless transmission.


Simple and efficient pairing
No need for network expertise, no computer operation, easy to dial the code and adjust the master and slave device digital tube to the same value to complete the point-to-point, point-to-multipoint (within 8 points) pairing work.


Flexible power supply
The device not only supports the power supply method of PoE remote network cable power supply, but also supports the power supply method of 12V 1A DC local connection power supply to meet the needs of various scenarios, reduce the construction cost and choose the power supply method flexibly.


Stylish and compact, simple and easy to install
Fashionable and compact shape, flexible and simple installation methods, with wall hanging, holding bar fixed installation methods, without affecting the original design on the basis of greatly reducing the difficulty of construction personnel to improve construction efficiency




Product parameters
Hardware Configuration
Model CPE-S350
Main Chip High performance enterprise chip (Qualcomm AR9344)
Main Frequency 580MHz MIPS® 24KEc™ Central Processing Unit
Wireless Technology 5G:300M 802.11a/n/ac 1T1R technology
Memory 64MByte DDR2
Flash 8MB
Network Interface 2*10/100Mbps adaptive RJ45 network interface

1 * digital switch / reset button, short press the digital tube display value plus one, long press 5 seconds to restore factory settings

Master-slave dip switch: master for access point mode, slave for client mode

Indicator light Signal SIG indicator, ETH network interface status indicator, power indicator, system indicator, digital tube indicator
Power source

24V 1A non-standard PoE power supply.

DC 12V 1A, power consumption <10W

Working Environment

Temperature: -30℃~+55℃(working), -40℃~+70℃(storage)

Humidity (non-condensing): 10%~90% (working), 5%~95% (storage)

Product Size 250mm*90mm*48mm
Packing Size 2700mm*95mm*95mm
Product weight 0.46kg
Antenna Built-in high gain 14dBi directional plate antenna (horizontal wave half-angle 60°, vertical wave half-angle 15°)


Details Images

AR9344 Wireless Network Bridge 5.8g 3km Long Distance Wireless Bridge 0AR9344 Wireless Network Bridge 5.8g 3km Long Distance Wireless Bridge 1AR9344 Wireless Network Bridge 5.8g 3km Long Distance Wireless Bridge 2AR9344 Wireless Network Bridge 5.8g 3km Long Distance Wireless Bridge 3AR9344 Wireless Network Bridge 5.8g 3km Long Distance Wireless Bridge 4AR9344 Wireless Network Bridge 5.8g 3km Long Distance Wireless Bridge 5AR9344 Wireless Network Bridge 5.8g 3km Long Distance Wireless Bridge 6
