750Mbps WAN Network Port Repeater 48V POE Power Waterproof Wireless Bridge
Product Description
750Mbps high speed rate
AP50 adopts Qualcomm QCA9531+QCA9887 chip, 2.4GHz&5.8GHz operating band, equipped with powerful 16M flash memory + 128M memory configuration, can support up to 32 terminals access, 2.4G 300Mbps, plus 5.8G 450Mbps collectively known as 750Mbps wireless network , faster download and upload speed, online surfing at will.
100 megabit adaptive wired network interface Support POE power supply
It provides one 10/100Mbps adaptive wired network interface, which can debug the AP itself while providing network, and supports 48V POE power supply when providing data transmission when it is elected to use 48V POE power supply.
Various functions, support AC centralized management, support Chinese SSID
AP50 supports AC centralized management, through remote management, change configuration and other functions, so that large-scale network installation, engineering layout becomes more simple and convenient; support Chinese SSID signal name, set the WIFI name as the name of the merchant, so that customers can accurately search and connect to use; AP50 can automatically clean up the cache garbage, timing reboot, easier and more convenient to use.
Adapt antenna with different functions according to demand

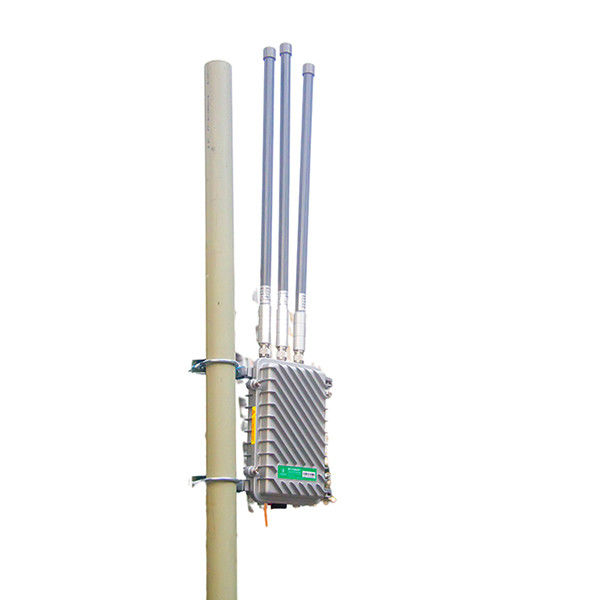

According to different needs, the effect varies when the host is equipped with different outdoor antennas. The recommended radius of omnidirectional transmission distance is 200 meters for 8DBi omnidirectional fiberglass antenna, 300 meters for 12DBi omnidirectional fiberglass antenna, and 700 meters for 14DBi sector antenna.
Specification
| Hardware Configuration | |||
| Main Chip | QCA9531+QCA9887 | ||
| Memory | 128MB DDR2 RAM | ||
| Flash | 16MB | ||
| Device Interface | 1 x 10/100 Mbps adaptive wired network interface (supports 48V POE power) | ||
| Antenna | External option | ||
| Product Size | Length 278mm,Width 195mm,Height 78mm | ||
| Power Adapter | Standard 48 V POE power supply | ||
| Software characteristics | |||
| Operating mode | Gateway Mode/AP Mode / Universal Trunking Mode | ||
| Communication standard |
IEEE 802.3(Ethernet) IEEE 802.11a/n/ac(5.8G WLAN) |
||
| Wireless Settings | Intelligent channel analysis Distance control 802.1x ACK time output Multiple SSIDs, up to 4 configurable BSSID |
||
| Wireless Security | WEP security mechanism Support 64/128/152-bit WEP security password WPA/WPA2 security mechanism (WPA-PSK using TKIP or AES) WPA/WPA2 security mechanism (WPA-EAP using TKIP) Hidden SSID security mechanism |
||
| System Settings | WEB configuration (HTTP/remote login) | ||
| Software Upgrade | WEB page or TFTP to upgrade software | ||
| User Management | Configurable user and password | ||
| System Monitoring | Device and network status statistics | ||
| Logging | Provide local log, host log, file transfer log | ||
| Recovery Settings | Restore output default settings | ||
| Backup Functions | System configuration can be backed up to restore user configurations when needed | ||
| Physical Characteristics | |||
| Temperature Characteristics | Operating temperature: 0°C to 55°C Storage temperature: -20°C to 70°C |
||
| Humidity | 5% to 95% (typical) | ||
Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Our products are sold all over the world, you can rest assured.
