WS300C 300Mbps 4G Industrial Router Industrial Wireless Router RS485 RS232 Port

WS300C 300Mbps 4G Industrial Router Industrial Wireless Router RS485 RS232 Port

  • High Light

    WS300C 300Mbps 4G Industrial Router

    ,

    Industrial Wireless Router RS485

    ,

    Industrial Wireless Router RS232

  • Working Temperature And Humidity
    -40~75℃ 5%~90%RH(no Condensation)
  • Power Supply Input
    12V-48V
  • Wireless Standard
    2. 4GHz WiFi IEEE802. 11b/g/n
  • Network Port Type
    RJ45
  • Wired Transfer Rate
    10/100Mbps
  • RJ45 Network Port
    3 Pcs 1 WAN Port 2 LAN Ports 10M/100Mbps Self-flip
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    WS300C
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    27*22*8 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

WS300C 300Mbps 4G Industrial Router Industrial Wireless Router RS485 RS232 Port

WS300C 300Mbps Industrial Wireless Router RS485 RS232 Port 4g Wifi Router



Product Description

Overview

  WS300C is a multi-functional wireless router that can provide G network and supports pass-through, Modbus TCP to RTU and other functions. Users can use WS300C 4G industrial router using 4G network to provide network for devices. WS300C has RS485 interface and RS232 interface, with RS485 interface and RS232 interface devices can be connected to WS300C to achieve data transmission conversion, WS300C through the 4G network and server connection, WS300C will get the device Data transfer to the server, the user can remotely view the equipment data through the PC terminal to achieve the function of industrial data acquisition and remote transmission.



Key Features

  • With one serial port RS485 and one serial port RS232, suitable for more application scenarios
  • Three Ethernet ports, anti-surge protection design for network port, 300Mbps wireless 2. 4G WiFi
  • Linux kernel, professional driver, years of industry experience, stable data transmission on serial port
  • Support 4G Internet access / PPPoE dial-up / DHCP dynamic acquisition / static IP / wireless bridging a variety of network connections
  • Web management background, no need to download any software, even WiFi plug network cable to open the browser can be easily set
  • Support transparent transmission, support MQTT platform access, support PLC remote download, with RTC clock
  • Support Modbus TCP to RTU, support Modbus master/slave communication
  • Support protocol customization, can assist customers to access the platform
  • One-to-one customer service, customized field solutions based on existing equipment, fast sample testing

Specification



Basic parameters
Product Model WS300C

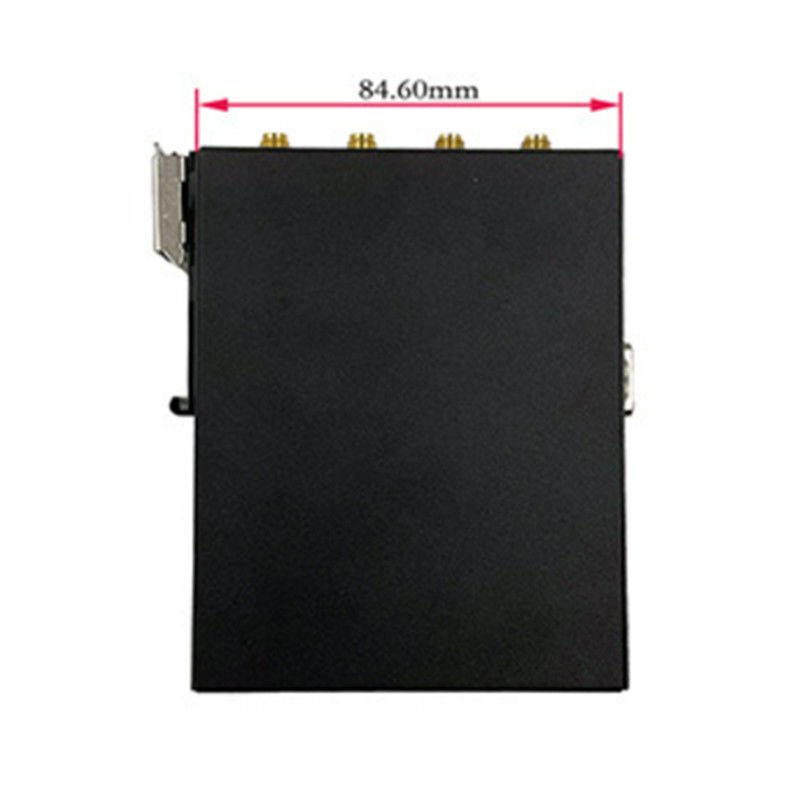

Size 120. 60x84. 60x22. 80mm
Housing Metal Case
Working temperature and humidity -40~75 5%~90%RH(no condensation)
Storage temperature and humidity -45~80 5%~90%RH(no condensation)
Power supply input 12V-48V
Power Connector 5. 8 pitch 2P universal interface
Pushbutton Long press 5 seconds to restore factory settings
Device Management WEB interface management
Installation method Bracket mount or rail mount
Ethernet Parameters
Network Port Type RJ45
Number of network ports 3 pcs 1 WAN port 2 LAN ports 10M/100Mbps self-flip
Serial port parameters
Serial port category RS485 and RS232
Number of serial ports 1 RS485 serial port, 1 RS232 serial port
Connection type RS485 serial port: 5. 8mm plug-in terminal; RS232 serial port: DB9 male connector
Communication mode Modbus TCP to Modbus RTU, TCP Serial Transparent Transport, MQTT Serial Transparent Transport, MQTT to TCP
Number of supported slaves Maximum 32
Baud rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400
Data bits 5, 6, 7, 8
Check bits No parity, odd parity, even parity, space parity
Stop bits 1,2
Network Parameters
Internet connection Ordinary 4G network / APN dedicated line / IOT card / wired network / wired bridge
4G speed LTE CAT4 network Uplink 50Mbps Downlink 150Mbps
Wireless Standard 2. 4GHz WiFi IEEE802. 11b/g/n
Wireless Rate 300Mbps
RTC Clock Support RTC clock calibration function
Firewall Support
Sales Service
Accessories 2. 4G antenna, 4G suction cup antenna, power adapter, 5. 8 pitch 3P terminal
Quality Assurance Period 3 years
Technical Service Field data acquisition solution customization, protocol customization, etc.



Details Images

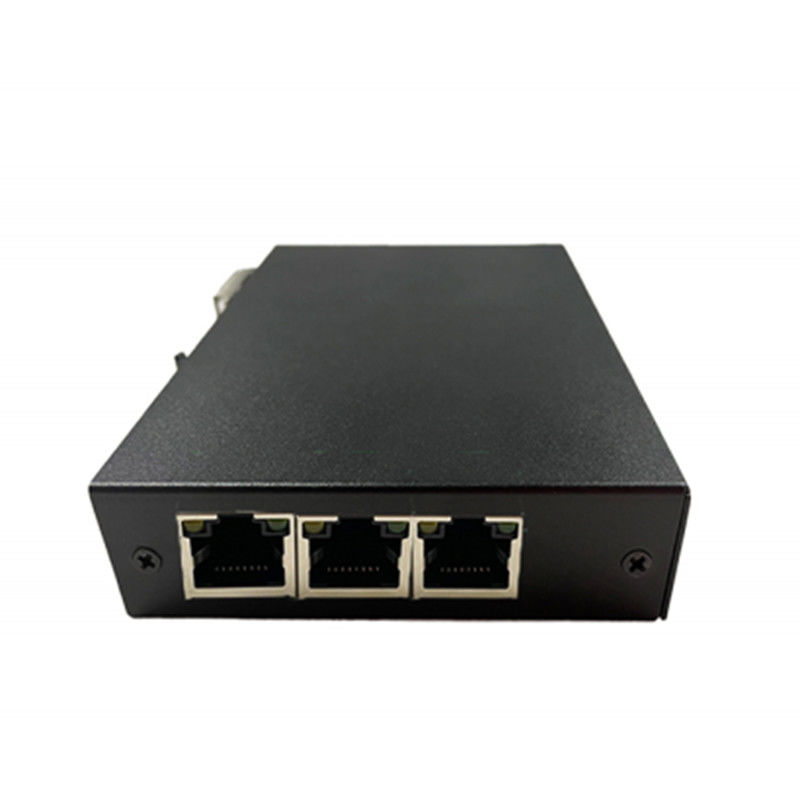

WS300C 300Mbps 4G Industrial Router Industrial Wireless Router RS485 RS232 Port 0WS300C 300Mbps 4G Industrial Router Industrial Wireless Router RS485 RS232 Port 1WS300C 300Mbps 4G Industrial Router Industrial Wireless Router RS485 RS232 Port 2WS300C 300Mbps 4G Industrial Router Industrial Wireless Router RS485 RS232 Port 3WS300C 300Mbps 4G Industrial Router Industrial Wireless Router RS485 RS232 Port 4
