Shenzhen Huasifei Technology Co., Ltd.
WS100W 4g Router With Sim Card MTK7620N Main Frequency 580MHz

WS100W 4g Router With Sim Card MTK7620N Main Frequency 580MHz

  • High Light

    4g Router With Sim Card MTK7620N


    WS100W 4g Router With Sim Card


    4g router with sim slot 580MHz

  • Chipset
  • Wireless Speed
  • Antenna
    4* 5dBi Antennas
  • Interface
    3 LAN /1 WAN
  • SIM Card Slot
    1 SIM Card Support
  • WIFI
    802.11 B/g/n
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 piece
  • Price
  • Packaging Details
    25*23*5 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

WS100W 4g Router With Sim Card MTK7620N Main Frequency 580MHz

WS100W Cpe Router 4g Main Frequency 580MHz 4g Router With Sim Card Slot


Product Description

  WS100W is a cost-effective wireless communication product developed based on 4G network requirements, WiFi wireless rate of up to 300Mbps, can meet the needs of small networks such as offices, homes, stable, secure and simple Internet access, can also be applied to the Internet of Things communication industry, providing users with wireless long-distance data monitoring, collection and transmission functions. All-network 4G network access, full line compatible with 4G/3G/2G network, equipped with three 10/100M adaptive Ethernet LAN interfaces to connect with internal LAN; one 10/100M adaptive Ethernet WAN interface, which can provide wired broadband access


Product Features

Industrial design, 300M wireless

The use of professional wireless processor, wireless rate up to 300Mpbs, barrier-free transmission distance of about 1 meter, independent professional amplifier and low-noise amplifier, stable and smooth with 30 units, no lag, no dropouts


Easy to set up, one flexible machine for multiple uses

Support 4G mode, routing mode, AP mode, and built-in quick setup wizard to guide customers to complete the configuration easily. Default 4G access mode, plug and play; routing mode, supports wired broadband access; AP mode, easily converts wired network into wireless WiFi network. Support 4G and wired broadband access, support 4G/3G/2G internet cards of Mobile Unicom and Telecom, more 4G internet advantage in places where wired bandwidth cannot reach, 4G and wired automatically switch, never disconnect.


Multiple security policies to keep network data safe at all times

Support WPS, WPA, WPA2 wireless security access, support SSID masking and wireless blacklisting to effectively prevent network rubbing, always protect the user network data security.


Multiple status statistics, always know the working status of the equipment

Built-in traffic statistics, support traffic package settings, easy to understand the monthly traffic usage; multi-state work indicator, real-time work log view, always understand the working status of the device.




Product parameters
Hardware Configuration
Main Cores MTK7620N 300M High Performance Chips
Main Frequency 580MHz
Wireless Technology 802.11b/g/n 300M MIMO Technology
Flash 8MB
Internal Memory 64MByte DDR2
Device Interface

WAN 10/100Mbps Adaptive Network Interface*1

LAN 10/100Mbps Adaptive Network Interface*3

SIM card, large card


5dBi snap-on rubber stick antenna

4G 2T2R 5dBi snap-on glue stick antenna*2

WiFi 2T2R 2.4G 5dBi snap-on glue stick antenna*2

Power Consumption <10W
Keystrokes 1 RESET button, long press for 3 seconds to restore factory settings
Indicator Light 6 groups:POWER,WIFI,4G,WAN,LAN1,LAN2,LAN3,Internet
Size/Weight N/A,N/A
LTE-FDD(Support hierarchical reception) B1/B3/B5/B8
LTE-TDD(Support hierarchical reception) B38/B39/B40/B41
GSM 900MHz/1800MHz

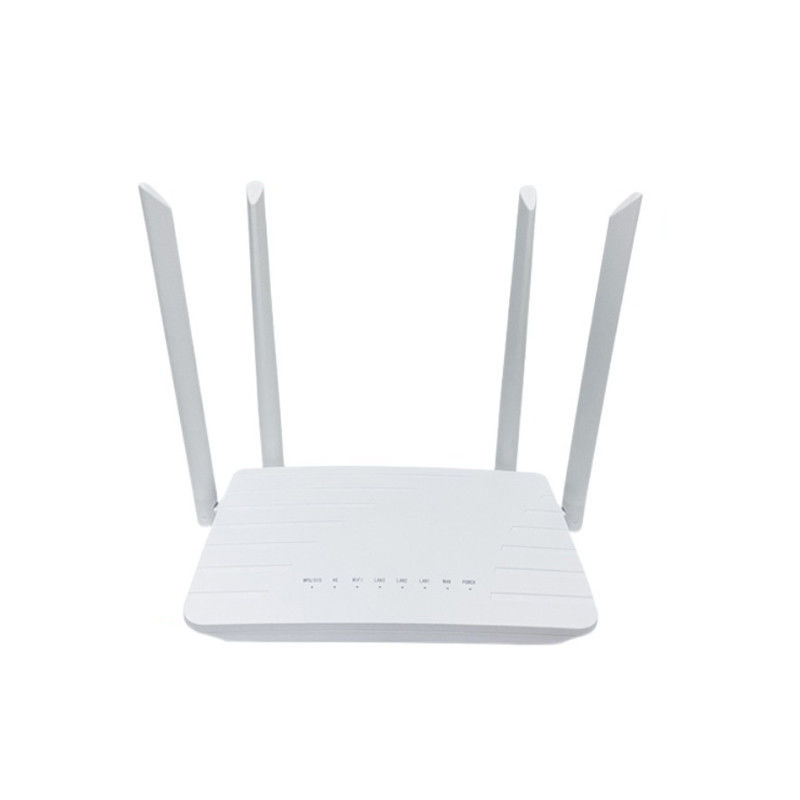

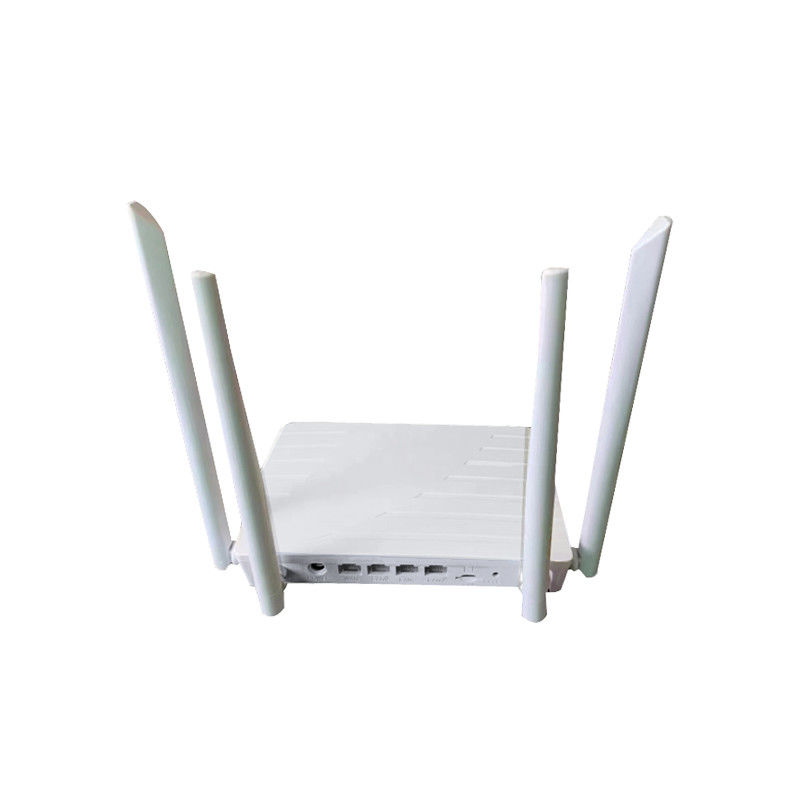

Details Images

WS100W 4g Router With Sim Card MTK7620N Main Frequency 580MHz 0WS100W 4g Router With Sim Card MTK7620N Main Frequency 580MHz 1WS100W 4g Router With Sim Card MTK7620N Main Frequency 580MHz 2WS100W 4g Router With Sim Card MTK7620N Main Frequency 580MHz 3WS100W 4g Router With Sim Card MTK7620N Main Frequency 580MHz 4



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. Do your products meet our standards?

A: Yes, almost all our products have CE,ROHS,FCC,etc.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q7. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
Q8. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
