Dual Band 5g Lte Outdoor Router 1200Mbps  IP67 Waterproof With Sim Slot

Dual Band 5g Lte Outdoor Router 1200Mbps IP67 Waterproof With Sim Slot

  • High Light

    Dual Band 5g Lte Outdoor Router

    ,

    5g Lte Outdoor Router 1200Mbps

  • Waterproof
    IP67
  • SIM Card Slot
    1 SIM Card Slot
  • Flash
    16Mb
  • RAM
    128MB
  • WIFI
    802.11 A/b/g/n/ac
  • Function
    FireWall, QoS, VPN
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    WS-5G
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    31*29*8 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

Dual Band 5g Lte Outdoor Router 1200Mbps IP67 Waterproof With Sim Slot

Dual Band 5G Outdoor Router 1200Mbps IP67 Waterproof 5g Wifi Router With Sim Slot



Specification





                                                                    Hardware
CPU MTK MT7621AT
Radio Chipset MTK MT7612 + MTK MT7603
Memory 16M ROM+128M RAM
Antenna Undetermined
Interface 1 * 10/100/1000M Auto MDI/MDIX RJ45 LAN port
1 * SIM Card Socket
Button 1 * Reset
LED 1 *LAN,1*2.4G,1*5.8G, 1*4G,1*Power,1*Internet
Power POE:48V,802.11af
RF parameter
Wireless Data Rate 1167Mbps:2.4G(2T2R) 300Mbps+5G(2T2R) 867Mbps
Frequency

2.412 ~ 2.472 GHz

5.15 ~ 5.35 GHz,5.725 ~ 5.825 GHz

Wireless Standard IEEE 802.11 a/b/g/n/ac
17dBm_802.11g_54Mbps(MAX)17dBm_802.11a_54Mbps(MAX)
RX sensitivity

11n : -70dBm@10% PER
11g : -72dBm@10% PER

11a : -72dBm@10% PER
11b: -88dBm@8% PER

                                                                      Software
Basic Operation Mode Router,AP,WISP,Repeater
ISP 3G/4/5G,WAN
DHCP DHCP sever,Relay,Client List
Vrtual Server Port Forwarding,DMZ,UPnP
Firewalls IP/ MAC/URL Filter,Remote Control
DDNS Support
QoS IP/MAC
Static Route Support
LOG Support
Others QIG Support
Network Switch Support
Network Detection Support
                                                                     5G Module
Frequency FDD-NR :n1,n28
FDD-NR :n41,n78,n79
FDD-LTE :Band 1,2,3,4,5,7,8,
FDD-LTE:Band 34,38,39,40,41
WCDMA:Band 1,2,5,8
Data Rate NR Sub6 SA: 1.7Gbps/250 Mbps(DL/UL)
NR Sub6 EN-DC: 1.8Gbps/200 Mbps(DL/UL)
WCDMA: 42Mbps/11 Mbps(DL/UL
LTE: 600Mbps/150 Mbps(DL/UL)

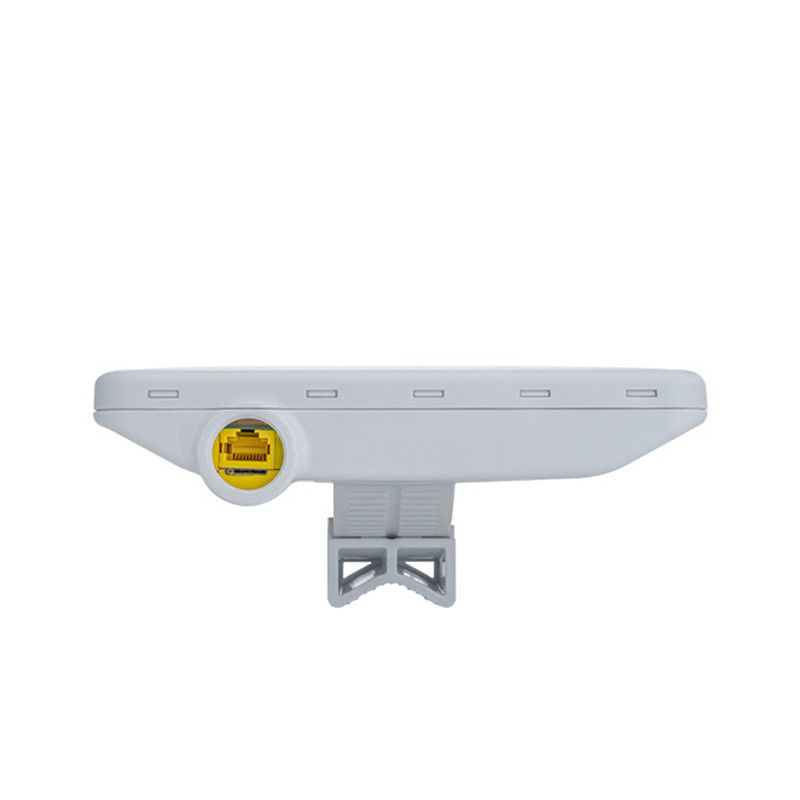

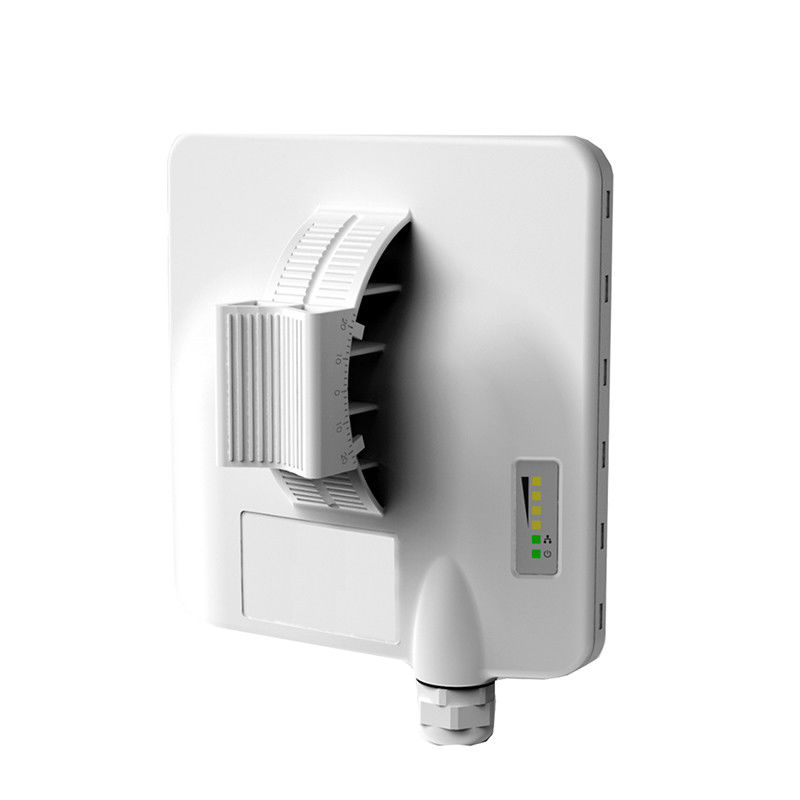

Details Images

Dual Band 5g Lte Outdoor Router 1200Mbps  IP67 Waterproof With Sim Slot 0Dual Band 5g Lte Outdoor Router 1200Mbps  IP67 Waterproof With Sim Slot 1Dual Band 5g Lte Outdoor Router 1200Mbps  IP67 Waterproof With Sim Slot 2Dual Band 5g Lte Outdoor Router 1200Mbps  IP67 Waterproof With Sim Slot 3



FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. Do your products meet our standards?

A: Yes, almost all our products have CE,ROHS,FCC,etc.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q7. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
Q8. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
