Outdoor 24V POE Ap Bridge Point To Point 500m Long Distance

Outdoor 24V POE Ap Bridge Point To Point 500m Long Distance

  • High Light

    24V POE Ap Bridge Point To Point


    Ap Bridge Point To Point 500m


    wireless ap bridge 500m

  • WIFI
    802.11 B/g/n
  • Antenna
    Built-in Antenna
  • RAM
    64MByte DDR2
  • Flash
  • Power Supply
    24V POE And 12V DC
  • Waterproof
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    2 piece
  • Price
  • Packaging Details
    31*29*8 cm 2piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,,Paypal
  • Supply Ability
    1000PCS/45 days

Outdoor 24V POE Ap Bridge Point To Point 500m Long Distance

500m Long Distance Wifi Wireless Bridge 24V POE Point To Point Wireless AP


Product Description

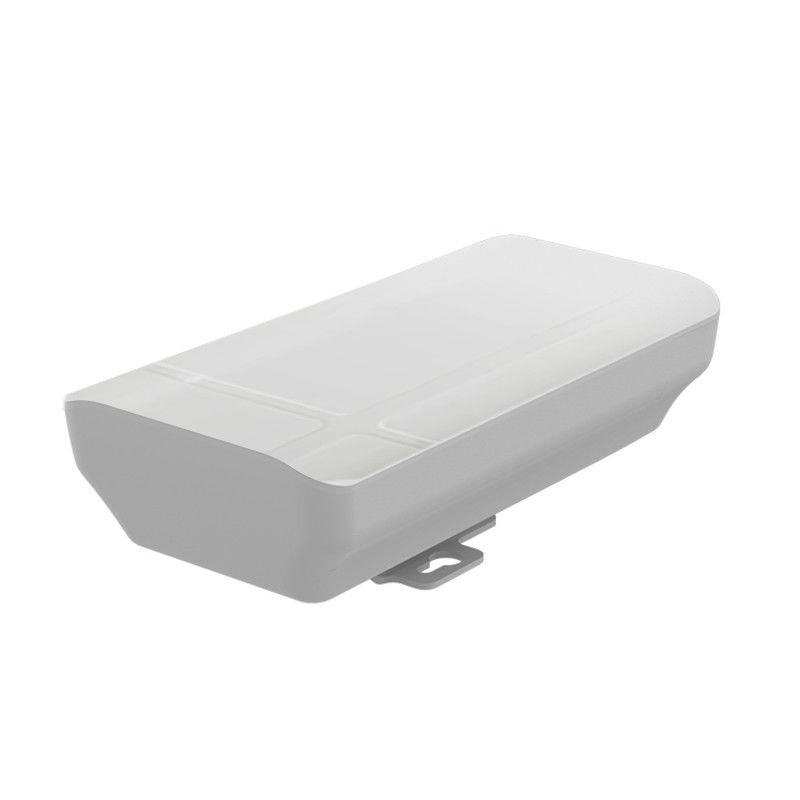

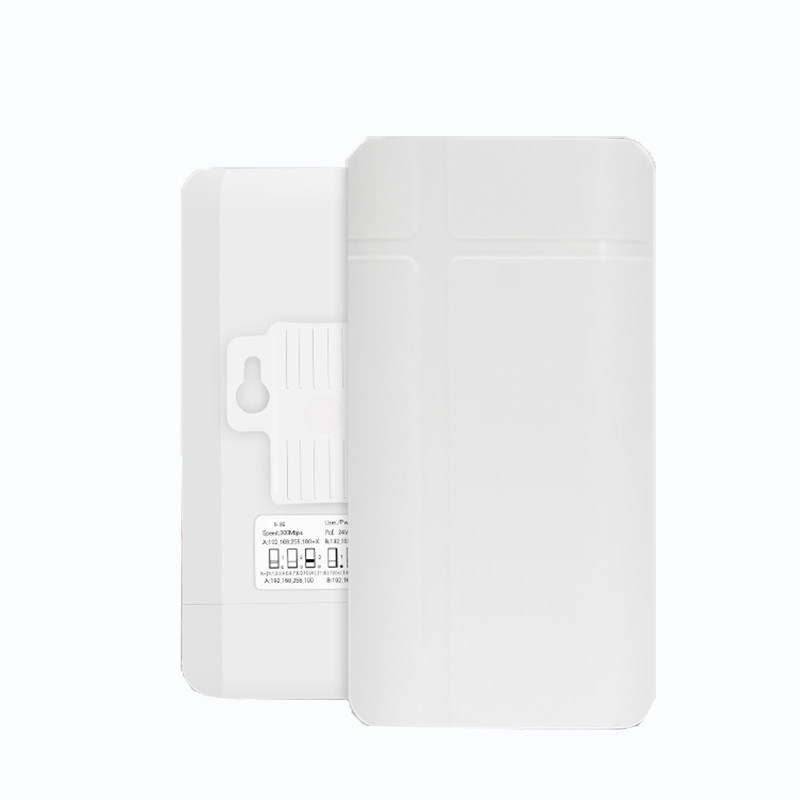

  CPE-S320A is a high-performance enterprise outdoor bridge product that works in 2.4G band and supports 802.11N technology. Unique digital tube pairing technology, no computer configuration, easy to complete the point-to-point, point-to-multipoint (within 8 points) device pairing. 100 megabit network interface, 2.4G 802.11N MIMO technology wireless processing speed up to 300Mbps, flexible power supply, support 24V PoE network cable power supply and 12V 1A DC local power supply, network cable power supply distance up to 50-70 meters (depending on the network cable material). Adopt outdoor IP65 windproof, rainproof, dustproof and sunproof protection grade housing design, easily adapt to various harsh outdoor environments. Built-in 5dBi dual-polarized plate antenna, easy and quick installation. With high performance, high gain, high reception sensitivity, high bandwidth, etc., greatly enhance the wireless transmission performance and stability, mainly for elevator monitoring and other places


Product Features

Super cost-effective hardware configuration
The enterprise-class host chip with industrial-grade circuit design supports IEEE802.11b/g/n protocol, which can provide 300Mbps wireless access speed as well as 100Mbps Ethernet switching processing speed. Excellent anti-high and low temperature design fully guarantees that user network data can be transmitted in real time, long-term, stable and high performance in extreme environment to enhance user experience.


Powerful wireless transmission capability
The circuit design with high power and high receiving sensitivity greatly enhances the distance of wireless transmission and improves the performance and stability of wireless transmission.


Simple and efficient pairing
No network expertise, no computer operation, easy to dial the code and adjust the master and slave device digital tube to the same value to complete the point-to-point, point-to-multipoint (within 8 points) pairing work.


Flexible power supply
The device not only supports PoE remote network cable power supply method, but also supports 12V 1A DC local connection power supply method to meet the needs of various scenarios, reduce construction costs and choose the power supply method flexibly.


Stylish and compact, simple and easy to install

Fashionable and compact shape, flexible and simple installation methods, with wall hanging, holding bar fixed installation Specificationmethods, without affecting the original design on the basis of greatly reducing the difficulty of construction personnel to improve construction efficiency.




Product parameters
Hardware Configuration
Model CPE-S320A
Main Chip High Performance Enterprise Chip (AR9533)
Main Frequency 580MHz
Wireless Technology 2.4G:300M 802.11b/g/n MIMO Technology
Memory 64MByte DDR2
Flash 8MB
Network Interface 1*10/100 Mbps adaptive network interface
Buttons 1 * digital switch / reset button, short press the digital tube display value plus one, long press 15 seconds to restore the factory settings
Indicator Light LAN network interface status indicator, power indicator
Power source

24V 0.5A non-standard POE power supply.

DC 12V 1A, power consumption <10W

Working Environment

Temperature: -30℃~+55℃(working), -40℃~+70℃(storage)

Humidity (non-condensing): 10%~90% (working), 5%~95% (storage)

Product Weight 0.15kg
