300Mbps IP65 Waterproof Wifi AP 12V DC Power 500m Point To Point Wireless Bridge
Product Description
CPE-S320A is a high-performance enterprise outdoor bridge product that works in 2.4G band and supports 802.11N technology. Unique digital tube pairing technology, no computer configuration, easy to complete the point-to-point, point-to-multipoint (within 8 points) device pairing. 100 megabit network interface, 2.4G 802.11N MIMO technology wireless processing speed up to 300Mbps, flexible power supply, support 24V PoE network cable power supply and 12V 1A DC local power supply, network cable power supply distance up to 50-70 meters (depending on the network cable material). Adopt outdoor IP65 windproof, rainproof, dustproof and sunproof protection grade housing design, easily adapt to various harsh outdoor environments. Built-in 5dBi dual-polarized plate antenna, easy and quick installation. With high performance, high gain, high reception sensitivity, high bandwidth, etc., greatly enhance the wireless transmission performance and stability, mainly for elevator monitoring and other places
Product Features
Super cost-effective hardware configuration
The enterprise-class host chip with industrial-grade circuit design supports IEEE802.11b/g/n protocol, which can provide 300Mbps wireless access speed as well as 100Mbps Ethernet switching processing speed. Excellent anti-high and low temperature design fully guarantees that user network data can be transmitted in real time, long-term, stable and high performance in extreme environment to enhance user experience.
Powerful wireless transmission capability
The circuit design with high power and high receiving sensitivity greatly enhances the distance of wireless transmission and improves the performance and stability of wireless transmission.
Simple and efficient pairing
No network expertise, no computer operation, easy to dial the code and adjust the master and slave device digital tube to the same value to complete the point-to-point, point-to-multipoint (within 8 points) pairing work.
Flexible power supply
The device not only supports PoE remote network cable power supply method, but also supports 12V 1A DC local connection power supply method to meet the needs of various scenarios, reduce construction costs and choose the power supply method flexibly.
Stylish and compact, simple and easy to install
Fashionable and compact shape, flexible and simple installation methods, with wall hanging, holding bar fixed installation Specificationmethods, without affecting the original design on the basis of greatly reducing the difficulty of construction personnel to improve construction efficiency.
Specification
Product parameters | |
Hardware Configuration | |
Model | CPE-S320A |
Main Chip | High Performance Enterprise Chip (AR9533) |
Main Frequency | 580MHz |
Wireless Technology | 2.4G:300M 802.11b/g/n MIMO Technology |
Memory | 64MByte DDR2 |
Flash | 8MB |
Network Interface | 1*10/100 Mbps adaptive network interface |
Buttons | 1 * digital switch / reset button, short press the digital tube display value plus one, long press 15 seconds to restore the factory settings |
Indicator Light | LAN network interface status indicator, power indicator |
Power source |
24V 0.5A non-standard POE power supply. DC 12V 1A, power consumption <10W |
Working Environment |
Temperature: -30℃~+55℃(working), -40℃~+70℃(storage) Humidity (non-condensing): 10%~90% (working), 5%~95% (storage) |
Product Weight | 0.15kg |

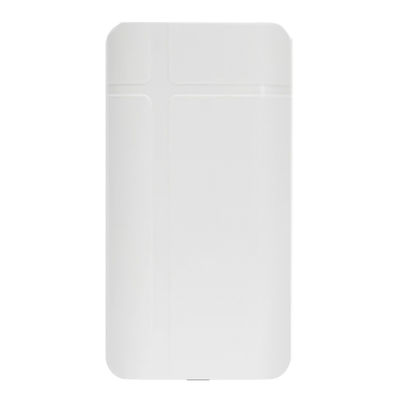

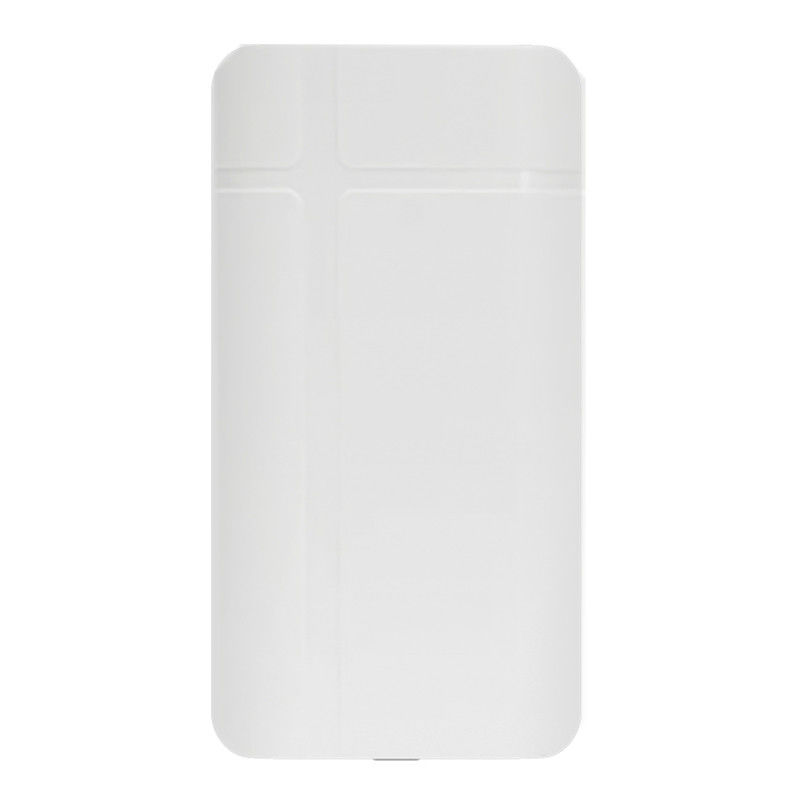

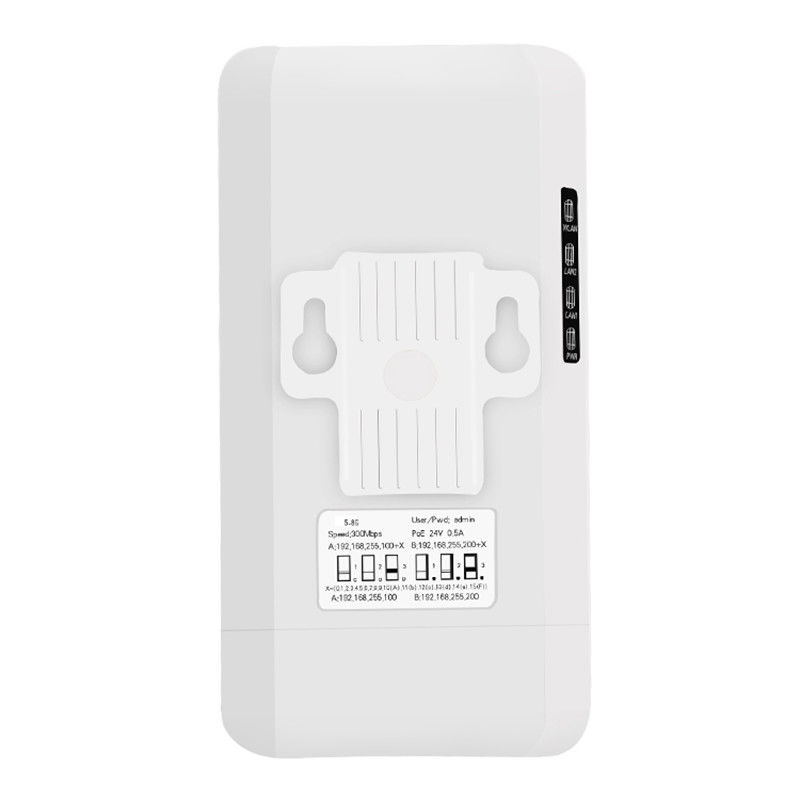

Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
