Long Range 5km Bridge Wireless MTK7620A+7621E+IP1001M 5g Wireless Network Bridge
Product Description

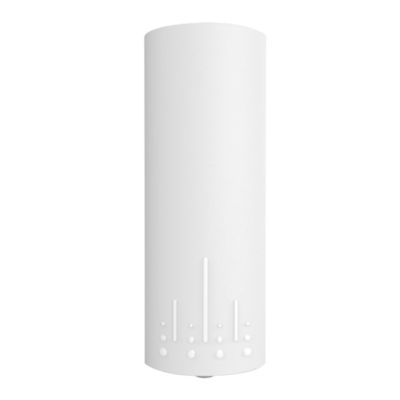

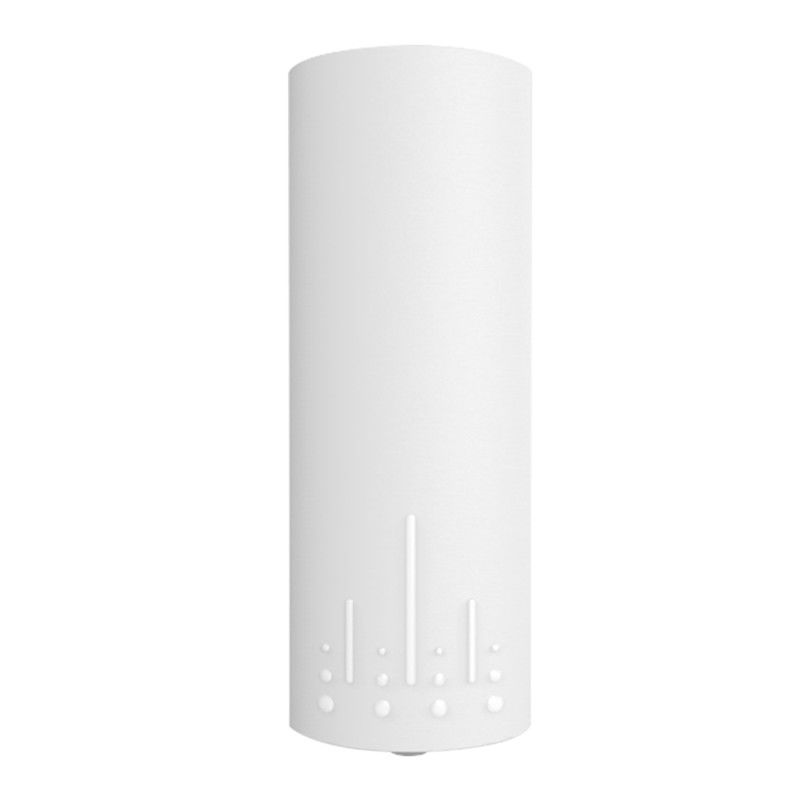

CPE-S900Q is a high-performance enterprise outdoor bridge product that works in the 5G band and supports 802.11ac technology. Unique digital tube pairing technology, no computer configuration, easy to complete the point-to-point, point-to-multipoint (within 8 points) device pairing. 1000mbps + 100mbps network interface, 5G 802.11ac MIMO technology wireless processing speed up to 900Mbps, flexible power supply, support 24V POE cable power supply and 12V 1A DC local power supply, cable power supply distance up to 50-70 meters (related to the cable material). Outdoor IP65 windproof, rainproof, dustproof and sunproof protection grade housing design, easily adapt to various harsh outdoor environments. Built-in 14dBi dual excitation plate antenna, easy and quick installation. With high performance, high gain, high receiving sensitivity, high bandwidth, etc., greatly enhancing the wireless transmission performance and stability, widely used in short and medium distance video transmission and data transmission.
Hardware Product
Super cost-effective hardware configuration
The enterprise-class host chip with industrial-grade circuit design supports IEEE802.11a/n/ac protocol, which can provide 900Mbps wireless access speed and 1000Mbps+100Mbps Ethernet switching processing speed. The excellent anti-high and low temperature design fully guarantees that user network data can be transmitted in real-time, long-term, stable and high performance in extreme environments to enhance user experience.
Powerful wireless transmission capability
The circuit design with high power and high receiving sensitivity greatly enhances the distance of wireless transmission and improves the performance and stability of wireless transmission..
Simple and efficient pairing
No network expertise, no computer operation, easy to dial the code and adjust the master and slave device digital tube to the same value to complete the point-to-point, point-to-multipoint (within 8 points) pairing work
Flexible power supply
The device not only supports the power supply method of POE remote network cable power supply, but also supports the power supply method of 12V 1A DC local connection power supply to meet the needs of various scenarios, reduce the construction cost and choose the power supply method flexibly.
Stylish and compact, simple and easy to install

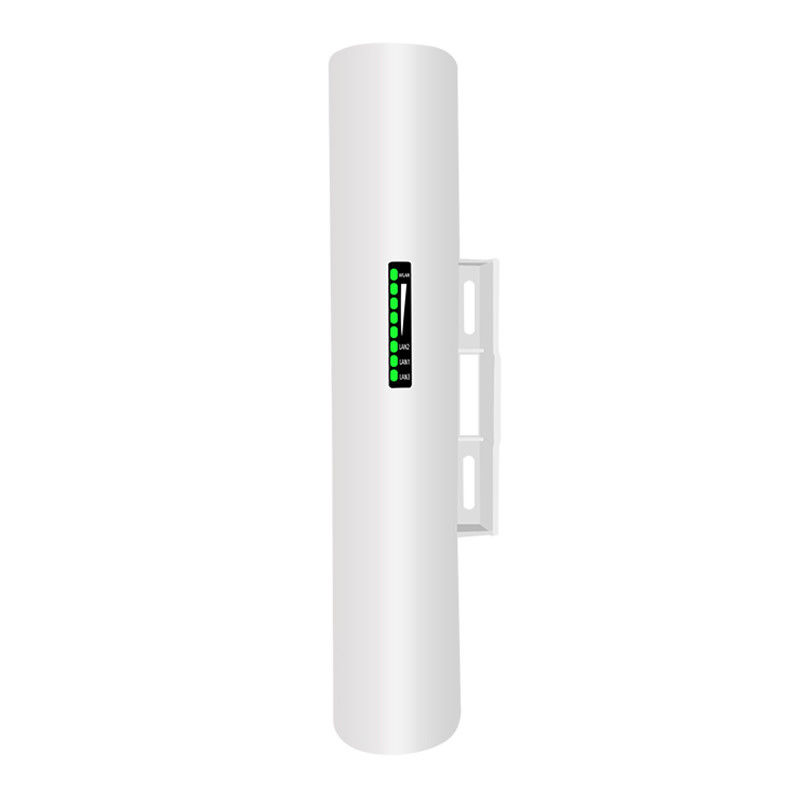

Fashionable and compact shape, flexible and simple installation methods, with wall hanging, holding bar fixed installation methods, without affecting the original design on the basis of greatly reducing the difficulty of construction personnel to improve construction efficiency.
Specification
| Product parameters | |
| Hardware Configuration | |
| Model | CPE-S900Q |
| Main Chip | MTK7620A+7621E+IP1001M 900Mbps High Performance Enterprise Chip |
| Main Frequency | 580MHz MIPS® 24KEc™ Central Processing Unit |
| Wireless Technology | 5G:900M 802.11a/n/ac MIMO technology |
| Memory | 64MByte DDR2 |
| Flash | 8MB |
| Network Interface |
WAN:1*10/100/1000 Mbps adaptive RJ45 network interface LAN: 1*10/100Mbps adaptive RJ45 network interface |
| Button | 1 * digital switch / reset button, short press the digital tube display value plus one, long press 15 seconds to restore factory settings |
| Indicator Light |
Signal SIG indicator, LAN1/LAN2 network interface status indicator, power indicator, digital tube indicator |
| Power source |
24V 1A non-standard POE power supply. DC 12V 1A, power supply |
| Working Environment |
Temperature: -30℃~+55℃(working), -40℃~+70℃(storage) Humidity (non-condensing): 10%~90% (working), 5%~95% (storage) |
| Antenna | Built-in dual polarization high gain 14dBi directional plate antenna (horizontal wave half-angle 60°, vertical wave half-angle 60°) |
Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Our products are sold all over the world, you can rest assured.
