450Mbps Wireless Network Bridge 24V POE Long Range 3000m Outdoor Wifi Bridge

450Mbps Wireless Network Bridge 24V POE Long Range 3000m Outdoor Wifi Bridge

  • High Light

    450Mbps Wireless Network Bridge

    ,

    Wireless Network Bridge 24V POE

    ,

    3000m Outdoor Wifi Bridge

  • Chipset
    AR9344
  • Power Supply
    POE 24V 1A
  • RAM
    64M DDR
  • Flash
    8M
  • Antenna
    Built-in Antenna
  • Wifi
    802.11a/802.11n
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    CPE450
  • Minimum Order Quantity
    2 piece
  • Price
    Negotiable
  • Packaging Details
    32*10*6 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

450Mbps Wireless Network Bridge 24V POE Long Range 3000m Outdoor Wifi Bridge

450Mbps Wireless Network Bridge 24V POE Long Range 3000m Wifi Bridge 5.8G



Product Description

  CPE450 is a long-distance 5.8G wireless transmission equipment. It uses wireless communication technology to transmit network data using air as a medium to carry out long-distance point-to-point or point-to-multipoint interconnection. The working data link layer realizes the interconnection and transmission of local area networks. The distance can be up to 3km.



Key Features

  • Long-distance 5.8G wireless transmission equipment
  • Support point-to-point, point-to-multipoint mode
  • Transmission distance up to 3km(Barrier-Free)
  • WDS networking mode, video network dual compatible.
  • Dialing to set the transmitter and receiver, and also support the PC to modify the IP settings.
  • Dynamic MIMO power saving mode (DMPS) and automatic power-saving transmission (APSD)

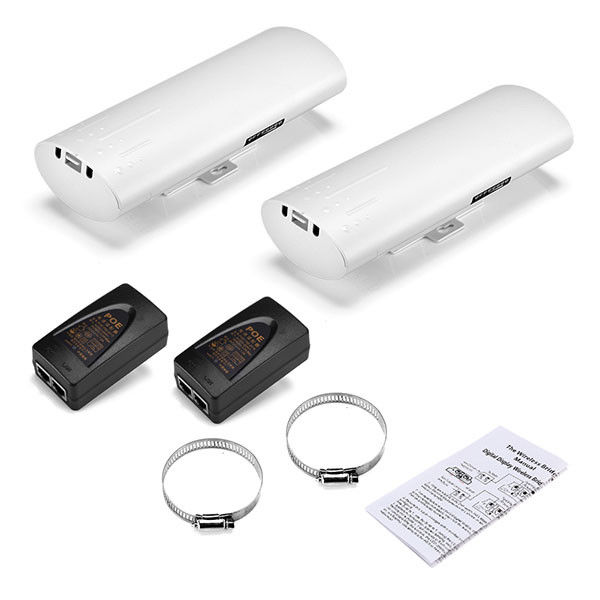

Package Include:

  • 1 * CPE450 Bridge
  • 1 * POE Power Adapter (24V)
  • 1 * Metal Hoop
  • 1 * User Manual

Specification



Specification
Master control AR9344
DRAM DDR2 64MByte
FLASH 8MByte
Wired Interface 10/100Mbps LAN*2
Transfer method Direct Sequence Spread Spectrum (DSSS)
Modulation OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK
Network Standard IEEE802.11n,IEEE802.11a ,IEEE802.3u
Supporting agreement CSMA/CA,TCP/IP,IPX/SPX,NetBEUI,DHCP,NDIS3,NDIS4,NDIS5
Frequency Range 4900~6100MHz
Power consumption 3W
Power scheme POE 24V 1A
Antenna gain 14DBi
Management settings WEP management,Telnet,Serial
Encryption WEP encryption 64/128bits, WPA, WPA2, 802.1x
Operating temperature -30℃~65

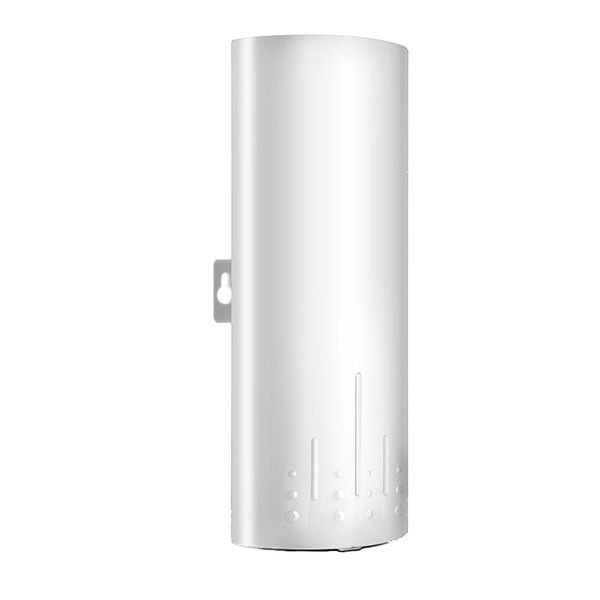

Products Pictures

450Mbps Wireless Network Bridge 24V POE Long Range 3000m Outdoor Wifi Bridge 0450Mbps Wireless Network Bridge 24V POE Long Range 3000m Outdoor Wifi Bridge 1450Mbps Wireless Network Bridge 24V POE Long Range 3000m Outdoor Wifi Bridge 2450Mbps Wireless Network Bridge 24V POE Long Range 3000m Outdoor Wifi Bridge 3450Mbps Wireless Network Bridge 24V POE Long Range 3000m Outdoor Wifi Bridge 4



FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. Do your products meet our standards?

A: Yes, almost all our products have CE,ROHS,FCC,etc.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q7. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
Q8. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
