5.8G Outdoor Wireless Ethernet Bridge 450Mbps Long Range 3KM  24V POE

5.8G Outdoor Wireless Ethernet Bridge 450Mbps Long Range 3KM 24V POE

  • High Light

    5.8G Outdoor Wireless Ethernet Bridge

    ,

    Outdoor Wireless Ethernet Bridge 450Mbps

  • RAM
    64M DDR
  • Flash
    8M
  • Antenna
    Built-in Antenna
  • Wifi
    802.11a/802.11n
  • Shell Material
    ABS
  • Operating Temperature
    -30℃~65℃
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    CPE450
  • Minimum Order Quantity
    2 piece
  • Price
    Negotiable
  • Packaging Details
    32*10*6 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

5.8G Outdoor Wireless Ethernet Bridge 450Mbps Long Range 3KM 24V POE

5.8G Outdoor Wireless Bridge 450Mbps Long Range 3KM Wifi Access Point 24V POE



Product Description

  CPE450 is a long-distance 5.8G wireless transmission equipment. It uses wireless communication technology to transmit network data using air as a medium to carry out long-distance point-to-point or point-to-multipoint interconnection. The working data link layer realizes the interconnection and transmission of local area networks. The distance can be up to 3km.



Key Features

  • Long-distance 5.8G wireless transmission equipment
  • Support point-to-point, point-to-multipoint mode
  • Transmission distance up to 3km(Barrier-Free)
  • WDS networking mode, video network dual compatible.
  • Dialing to set the transmitter and receiver, and also support the PC to modify the IP settings.
  • Dynamic MIMO power saving mode (DMPS) and automatic power-saving transmission (APSD)

Package Include:

  • 1 * CPE450 Bridge
  • 1 * POE Power Adapter (24V)
  • 1 * Metal Hoop
  • 1 * User Manual

Specification



Specification
Master control AR9344
DRAM DDR2 64MByte
FLASH 8MByte
Wired Interface 10/100Mbps LAN*2
Transfer method Direct Sequence Spread Spectrum (DSSS)
Modulation OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK
Network Standard IEEE802.11n,IEEE802.11a ,IEEE802.3u
Supporting agreement CSMA/CA,TCP/IP,IPX/SPX,NetBEUI,DHCP,NDIS3,NDIS4,NDIS5
Frequency Range 4900~6100MHz
Power consumption 3W
Power scheme POE 24V 1A
Antenna gain 14DBi
Management settings WEP management,Telnet,Serial
Encryption WEP encryption 64/128bits, WPA, WPA2, 802.1x
Operating temperature -30℃~65

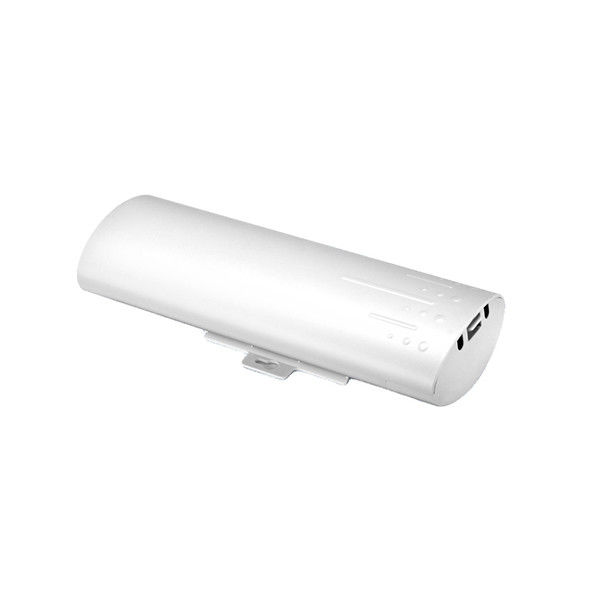

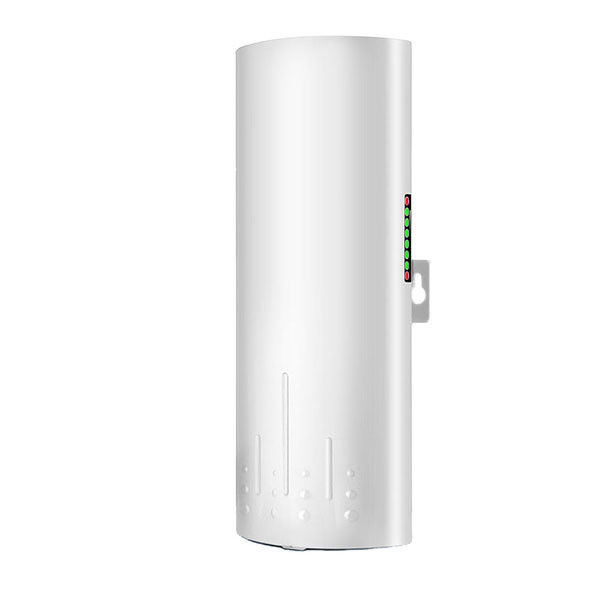

Products Pictures

5.8G Outdoor Wireless Ethernet Bridge 450Mbps Long Range 3KM  24V POE 05.8G Outdoor Wireless Ethernet Bridge 450Mbps Long Range 3KM  24V POE 15.8G Outdoor Wireless Ethernet Bridge 450Mbps Long Range 3KM  24V POE 25.8G Outdoor Wireless Ethernet Bridge 450Mbps Long Range 3KM  24V POE 35.8G Outdoor Wireless Ethernet Bridge 450Mbps Long Range 3KM  24V POE 4
