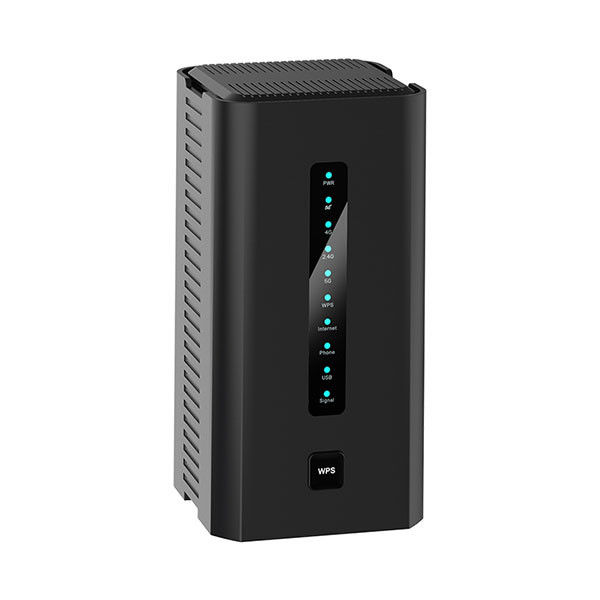

3600Mbps Mobile Wifi6 Router 5g Dual Band 12V DC 5g Lte Router RJ11 Phone Jack
Specification
Hardware Parameters | ||
Chipset | T750+MT7915AN/B(2PCS)+MT7959N/A+MT7959AN/A +MT7531A+LE9643 | |
CPU frequency | Quad core ARM Cortex A55 2GHz | |
Memory | 1GB 16-bit LPDDR4 | |
Flash | 1GB NAND | |
WIFI |
4T4R 2.4GHz 802.11b/g/n/ac/ax, 1200Mbps 4T4R 5.8GHz 802.11a/n/ac/ax, 2400Mbps |
|
Device Interfaces | 3x RJ45 10M/100M/1000M LAN Ethernet | |
1 x RJ45 1000M WAN Ethernet interface | ||
1 x reset button | ||
1 x WPS button | ||
1 x Power jack | ||
1X USB 3.0 | ||
1 x RJ11 Phone jack | ||
WIFI Antenna |
4 x 5dBi internal 2.4G&5G dual band antenna
|
|
5G/LTE Antenna | 8* 2~7dBi internal antenna | |
WIFI Features | ||
Standard | 802.11a/b/g/n/ac/ax | |
2.4G: 2.4~2.4835GHz 5G: 5.150~5.825GHZ |
||
Korea,Japan,ETSI,FCC channels can be selected | ||
Modulation schemes | OFDM = BPSK,QPSK, 16-QAM, 64-QAM 256-QAM 1024-QAM | |
DSSS = DBPSK, DQPSK, CCK | ||
Transfer Rate |
HE20: up to 1147Mbps 2.4G+5G HE40: up to 2294Mbps 2.4G+5G HE80: up to 2400Mbps 5G |
|
5G /LTE Features | ||
5G/ LTE Standards |
Release 15, Cat.19 5G NR |
|
5G/ LTE Frequency Support |
5G NR SA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78 5G NR NSA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78 LTE FDD: B1/B3/B5/B7/B20/B28 LTE TDD: B38/B40/B41/B42 |
|
5G/LTE Throughput |
5G SA Sub-6 : DL 4.67Gbps; UL 2.5Gbps 5G NSA Sub-6: DL 3.74Gbps; UL 1.46Gbps LTE: DL 1.6Gbps; UL 211Mbps |
|
MIMO | DL: 4 × 4 UL: 2 × 2(only support 5G SA) | |
Output Power | 23dBm±2dBm |

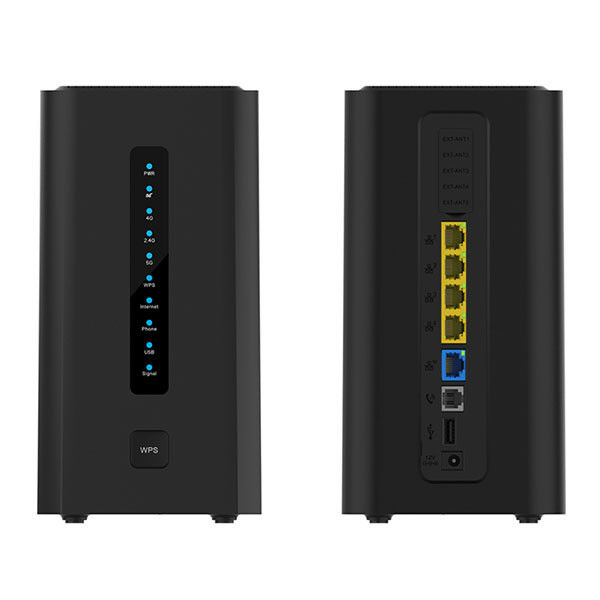

Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
