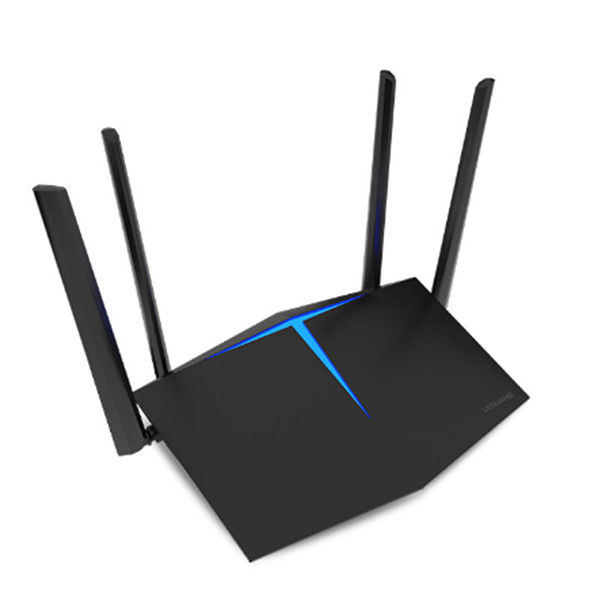

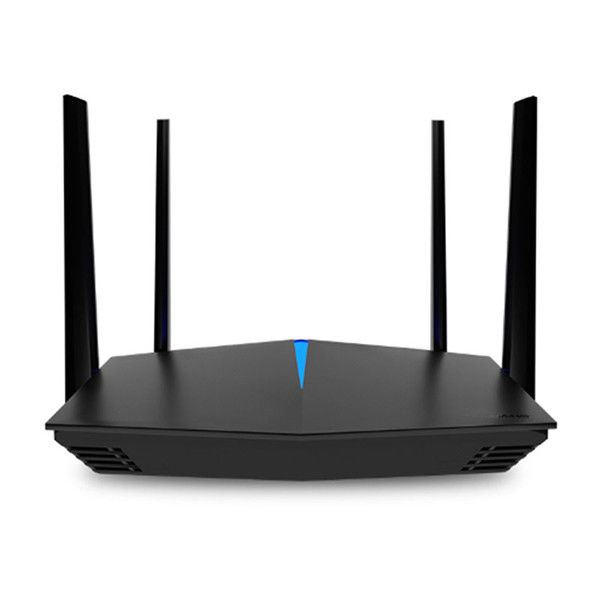

1800Mbps Dual Band Wifi6 5g Router Gigabit Port 12V DC Wireless 5g Wifi6 Router
Product Description
A high-performance enterprise-class WiFi6 router product that supports 802.11ax technology, works in the 2.4G&5.8G wireless frequency band, and meets the needs of 128 people for wireless high-speed Internet access at the same time. Full Gigabit network interface, 2.4G 802.11ax mode can support up to 573Mbps wireless access speed, and 5.8G 802.11ax mode can support up to 1201Mbps wireless access speed. It has the characteristics of high performance, high gain, high receiving sensitivity, high bandwidth, high access number, etc., which can not only cover a larger range, but also provide higher wireless transmission performance and stability. Stylish appearance design, simple and convenient installation, it is the best choice for wireless access in high-density environments such as homes, shops, restaurants, and enterprises.
Hardware product features
High-performance hardware configuration
Using MT7621+MT7905+MT7975 high-performance SoC kit, with 16MB flash memory and 256MB memory, industrial-grade circuit design, support IEEE802.11a/b/g/n/ac/ax protocol, can provide 2.4G 573Mbps+5.8G 1201Mbps wireless connection Input speed and 1000Mbps Ethernet switching processing speed. The whole machine can provide a maximum wireless access speed of 1800Mbps, and the ultra-high-speed wireless makes performance no longer a bottleneck. Enhanced heat dissipation + air duct optimization, no downtime due to heat problems in the hot summer, fully guaranteeing the real-time, long-term, stable, and efficient transmission of user network data, and improving user experience.
HNAT fast forwarding
Combining hardware and software to optimize HNAT, the wired bidirectional forwarding performance can reach 2Gbps, which greatly improves the data forwarding capability of the device, ensures real-time linear forwarding of user data, reduces network delays, and improves network transmission efficiency and user experience.
1024QAM ultra-high-speed access rate
Adopting dual-channel dual-frequency design, both 2.4G&5.8G adopt the latest WiFi wireless standard -802.3ax protocol, the highest connection rate of 2.4G wireless frequency band can reach 573Mbps, and the highest connection speed of 5.8G frequency band can reach 1201Mbps; dual-frequency is turned on at the same time, the highest Provides 1800Mbps wireless access speed, providing ultra-high-speed wireless experience.
OFDMA high-density user access
The OFDMA function that supports the 802.11ax protocol separates the channel into multiple narrower sub-channels and allocates them according to the number of users, allowing each user to occupy one or more sub-channels. Automatic detection of the wireless environment and channel scheduling can enable multiple users to receive and send data packets at the same time, reduce competition and back-off between users when using the air interface, reduce network delay, and improve network transmission efficiency and user experience.
BSS Color space reuse
The BSS Color spatial multiplexing technology that supports the 802.11ax protocol combines the basic service levels (BSS,
Basic Service Set) is identified by different colors (BSS Color), and is further divided into internal BSS (the BSS to which the device belongs) and external
There are two types of BSS, and maintain different message receiving and sending thresholds respectively. When receiving the message, it can be quickly judged by the BSS color that it is the message of the external BSS.
If the signal strength is less than the reception threshold of the external BSS, the message is ignored, and the internal BSS's message transmission and reception is not affected. This technology can realize channel reuse in high-density scenarios, greatly alleviating the impact of co-channel interference in actual network deployment.
specification
| Hardware Configuration | |
| main chip | MT7621A+MT7905DAN+MT7975DN high-performance enterprise chip |
| Main frequency | Dual core four threads 880MHz |
| wireless technology |
2.4G WiFi 2*2 802.11b/g/n/ax (theoretical maximum rate can reach 573Mbps) 5.8G WiFi 2*2 802.11a/n/ac/ax (theoretical maximum rate can reach 1201Mbps) 1024QAM ultra-high-speed access rate, OFDMA ultra-high-density user access MU-MIMO/MU-OFDMA uplink/downlink BSS Color space reuse Space-time block code (STBC), low-density parity check (LDPC), uplink and downlink beamforming (Beamformer TX/RX) Energy saving: single antenna standby technology, dynamic MIMO power saving technology, enhanced automatic power saving transmission technology, packet-by-packet power control technology, etc. |
| Memory | 256MB DDR3 RAM |
| Flash | 16MB |
| Network Interface | 4*10/100/1000MbpsAdaptive network interface, 1WAN+3LAN |
| Button |
1*Reset button, long press for 6 seconds to restart, long press for more than 6 seconds to restore factory settings 1*Power button, control the power switch of the device 1*WPS button, easy interconnection without password |
| Indicator light | System status indicator |
| power supply | DC 12V 1A power supply, power consumption <12W |
| working environment |
Temperature: -40℃～+55℃(work), -40℃～+70℃(storage) Humidity (non-condensing): 5% to 90% (working), 5% to 95% (storage) |
| Antenna |
Two external 2.4G high gain 5dBi omnidirectional antennas*2 Two external 5.8G high gain 5dBi omnidirectional antennas*2 |
| Product Size | 209*140*35.5mm |
Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Our products are sold all over the world, you can rest assured.
