Dual Band 1200Mbps White Waterproof Repeater Aluminum Alloy Shell Outdoor
Product Features

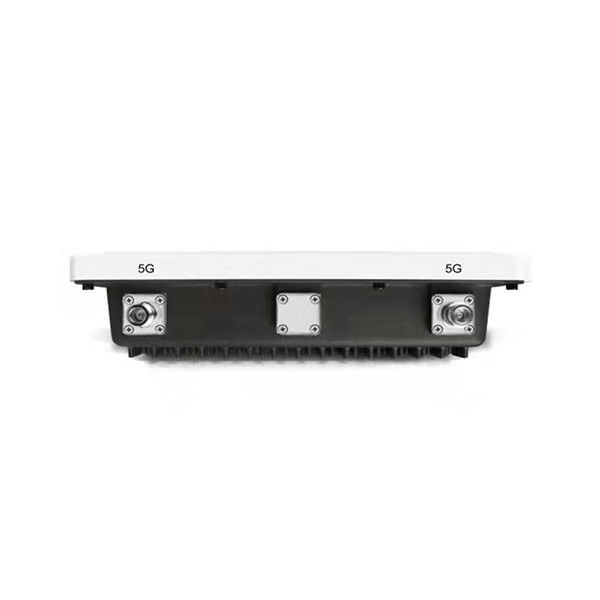

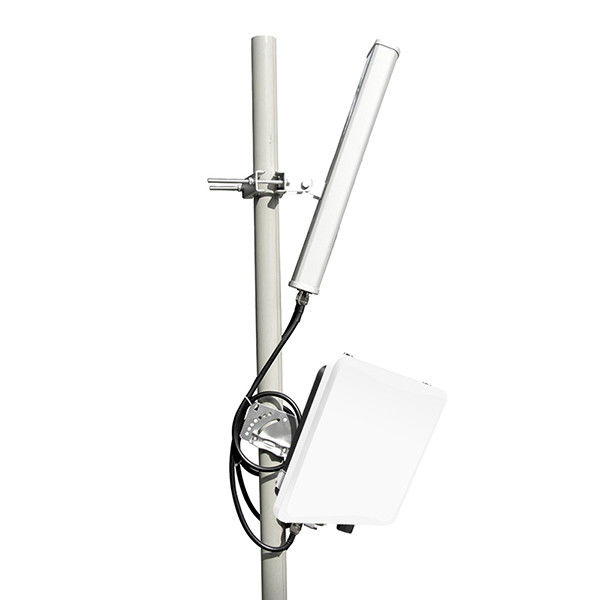

AP80 outdoor AP is an engineering grade AP suitable for outdoor coverage, made of all aluminum alloy, 360 degree waterproof, the effect varies when the host is equipped with different outdoor antennas, 300m radius is recommended for omnidirectional transmission distance with fiberglass antenna, 700m radius is recommended for directional transmission distance with sector antenna, AP80 adopts QCA9563+QCA9886+QCA8337 solution, 8M flash memory, 64M large memory, maximum standby 80 people, supports centralized AC management, remote management by cloud platform, power 500mW. Maximum standby 32 people, support AC centralized management, cloud platform remote management, power 500mW. suitable for hotel garden, cafe outdoor, air lounge, bus station, driving school training ground and other open environment use.
1200Mbps high speed rate
AP80 adopts Qualcomm QCA9563+QCA9886+QCA8337 chip, 2.4GHz +5.8G operating band, equipped with powerful 16M flash memory + 128M memory configuration, can support up to 80 terminals access, providing up to 1200Mbps wireless access speed, faster download and upload speed, online surfing at will.
1000 megabit adaptive wired network interface Support POE power supply
It provides one 10/100/1000Mbps adaptive wired network interface, which can debug the AP itself while providing network, and supports 48V POE power supply when providing data transmission when it is elected to use 48V POE power supply.
Various functions, support AC centralized management, support Chinese SSID
AP80 supports AC centralized management, through remote management, change configuration and other functions, so that large-scale network installation, engineering layout becomes more simple and convenient; support Chinese SSID signal name, set the WIFI name as the name of the merchant, so that customers can accurately search and connect to use; AP80 can automatically clean up the cache garbage, timing reboot, easier and more convenient to use.
Specification
| Hardware Configuration | |||
| Main Chip | QCA9563+QCA9886+QCA8337 | ||
| Wireless Technology | 802.11AC, 2T2R 1200M MIMO technology | ||
| Memory | 128MB DDR2 RAM | ||
| Flash | 16MB | ||
| Device Interface | 1 x 10/100 Mbps adaptive wired network interface (supports 48V POE power) | ||
| Antenna | External option | ||
| Product Size | Length 326mm,Width 270mm,Height 79mm | ||
| Power Adapter | Standard 48 V POE power supply | ||
| RF Parameters | |||
| RF Characteristics | 802.11a/b/g/n/ac: 2.4+5.8GHz Korea, Japan, ETSI, FCC communication channel optional |
||
| Modulation Mode | OFDM = BPSK, QPSK, 16-QAM, 64-QAM DSSS = DBPSK, DQPSK, CCK |
||
| Transmission rate | 1200 Mbps | ||
| Software characteristics | |||
| Operating mode | Gateway Mode/AP Mode / Universal Trunking Mode | ||
| Communication standard |
IEEE 802.3(Ethernet) IEEE 802.11a/n/ac(5.8G WLAN) |
||
| Wireless Settings | Intelligent channel analysis Distance control 802.1x ACK time output Multiple SSIDs, up to 4 configurable BSSID |
||
| Wireless Security | WEP security mechanism Support 64/128/152-bit WEP security password WPA/WPA2 security mechanism (WPA-PSK using TKIP or AES) WPA/WPA2 security mechanism (WPA-EAP using TKIP) Hidden SSID security mechanism |
||
| System Settings | WEB configuration (HTTP/remote login) | ||
| Software Upgrade | WEB page or TFTP to upgrade software | ||
| User Management | Configurable user and password | ||
| System Monitoring | Device and network status statistics | ||
| Logging | Provide local log, host log, file transfer log | ||
| Recovery Settings | Restore output default settings | ||
| Backup Functions | System configuration can be backed up to restore user configurations when needed | ||
| Physical Characteristics | |||
| Temperature Characteristics | Operating temperature: 0°C to 55°C Storage temperature: -20°C to 70°C |
||
| Humidity | 5% to 95% (typical) | ||
