Gigabit 5G LTE Router 12V DC Power Chipset SDX62 Wifi6 Router With SIM Slot

Gigabit 5G LTE Router 12V DC Power Chipset SDX62 Wifi6 Router With SIM Slot

  • High Light

    Gigabit 5G LTE Router

    ,

    Chipset SDX62 5G LTE Router

    ,

    Wifi6 Router With SIM Slot

  • Antenna
    Built-in Antenna
  • Wireless Speed
    2.4GHz 600Mbps + 5GHz 1200Mbps
  • Interface
    2 LAN+1RJ11
  • Power Supply
    DC 12V 1.5A
  • WIFI
    802.11 A/b/g/n/ac/ax
  • Size
    110mm*112mm * 195mm
  • Place of Origin
    China
  • Brand Name
    HUASIFEI
  • Certification
    FCC/CE/ROSH
  • Model Number
    HR300-5G
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    20*15*15 cm 1piece
  • Delivery Time
    7 work days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    1000PCS/45 days

Gigabit 5G LTE Router 12V DC Power Chipset SDX62 Wifi6 Router With SIM Slot

Gigabit Router 5g Lte 12V DC Power Chipset SDX62 Wifi6 Router 5g Sim Card



Product Description

  HUASIFEI HR300-5G Cellular indoor router is a wireless communication product developed based on 3G/4G LTE/5G network requirements. Supports 3G/4G LTE/5G global frequency bands. Supports 3G/4G LTE/5G internet high speed access. Support 5G NSA. Up to 3.4Gbps (DL)/600Mbps (UL) of NSA mode. 5G SA maximum 2.4Gbps (DL)/1Gbps (UL) access bandwidth service. It supports 2 Gigabit Ethernet ports, one RJ11 telephone port, and supports VOLTE voice. Support for 802.11AX WIFI 6E, 2.4GHz/5GHz Tri-band function. And provide users with WIFI 6, AX1800 large bandwidth hotspot sharing. Meet the access and sharing of more than 32 users' WIFI hotspots. Meet the needs of families, enterprises, and chain stores to provide 4G/5G high-speed Internet access services.



Product features

  • Wireless Mobile Broadband 3G/4G LTE/ 5G Connection. Supports 3G/4G/5G global frequency bands.
  • Compliant with IEEE 802.11a/b/g/n/ac/ax,AX1800,2*2 MIMO WIFI 6, support tri-band 2.4 GHz/5 GHz .
  • System crashes and automatically recovers. The system automatically maintains the data link and is permanently online.
  • Supports Multiple VPN tunnels for data encryption .
  • Power supply. DC 12V/1.5A
  • Industrial design for harsh environment.
  • ABS plastic material shell. Novel and fashionable appearance.

Easy to use and easy maintenance

  • User friendly web interface for user interaction.
  • Supports Central Management Platform.
  • Supports local web UI and remote FOTA update firmware.

Operating system
Built-in OpenWRT 18.06 operating system.



Specification

Cellular feature

3G/4G/5G

data connectivity

It provides data connectivity on 5G NR SA and NSA, LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA,HSUPA and WCDMA networks.

3G/4G/5G

Frequency bands

• Version E

5G NR:

5G NSA:n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n48/n77/n78/n79

5G SA:n1/n3/n5/n7/n8/n20/n26/n28/n38/n40/n41/n48/n77/n78/n79

LTE FDD:B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32

LTE-TDD:B38/B39/B40/B41/B42/B43/B46*/B48

WCDMA: B1/B5/B8



• Version A

5G NR:

5G NSA:n2/n5/n7/n12/n14/n25/n26/n30/n38/n41/n48/n66/n71/n77/n78/n79

5G SA:n2/n5/n7/n12/n13/n14/n25/n26/n29/n30/n38/n41/n48/n66/n71/n77/n78/n79

LTE FDD:B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71

LTE-TDD:B38/B41/B42/B43/B46*/B48

WCDMA: B1/B2/B4/B5



Remarks. More frequency bands or requirements please contact with us.

3G/4G/5G

Data rates

5G NSA. Max 3.4Gbps (DL)/600Mbps (UL)

5G SA. Max 2.4Gbps (DL)/1Gbps (UL)

LTE. Max 1.6Gbps (DL)/200Mbps (UL)

HSPA+. Max 42Mbps (DL)/ 5.76Mbps (UL)

WCDMA Max 384Kbps (DL)/384Kbps (UL)

5G NR features

3GPP Release 16

Supported modulations:

- Uplink: π/2-BPSK, QPSK, 16QAM, 64QAM and 256QAM

- Downlink: QPSK, 16QAM, 64QAM and 256QAM

Supported SCS: 15 kHz 2 and 30 kHz 2

SA 3 and NSA 3 operation modes supported on all the 5G band

Option 3x, 3a, 3 and Option 2

Maximum transmission data rates 4:

- NSA: 3.4 Gbps (DL)/ 550 Mbps (UL)

- SA: 2.4 Gbps (DL)/ 900 Mbps (UL)

LTE features

3GPP Release 16

LTE Category: DL Cat 19/ UL Cat 18

Supported modulations.

- Uplink: QPSK, 16QAM and 64QAM and 256QAM

- Downlink: QPSK, 16QAM and 64QAM and 256QAM

Supports 1.4/3/5/10/15/20 MHz RF bandwidth

Maximum transmission data rates . - 1.6 Gbps (DL)/ 200 Mbps (UL)

UMTS features

3GPP Release 9, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA.

Supported modulations. QPSK, 16QAM and 64QAM

Maximum transmission data rates.

- HSPA+. 42 Mbps (DL)/ 5.76 Mbps (UL)

- WCDMA. 384 kbps (DL)/ 384 kbps (UL)



Antennas 4 * 4G/5G internal antenna,4*4 MIMO, with 50 Ω impedance.
SIM card feature
SIM card Supports 1* SIM slots, 1.8V / 3V . Or 1* eSIM card. ( Optional )

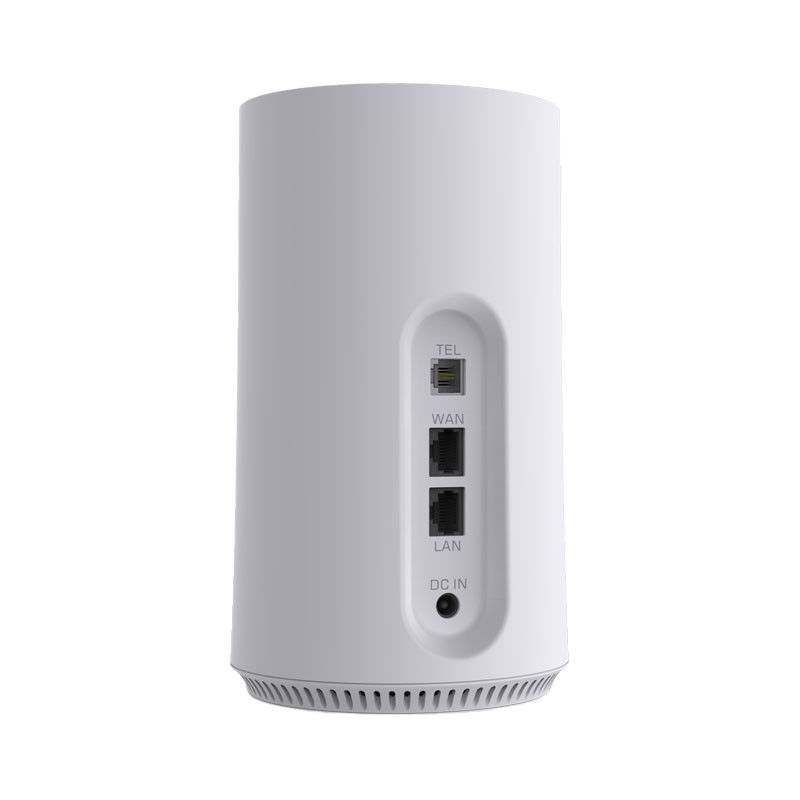

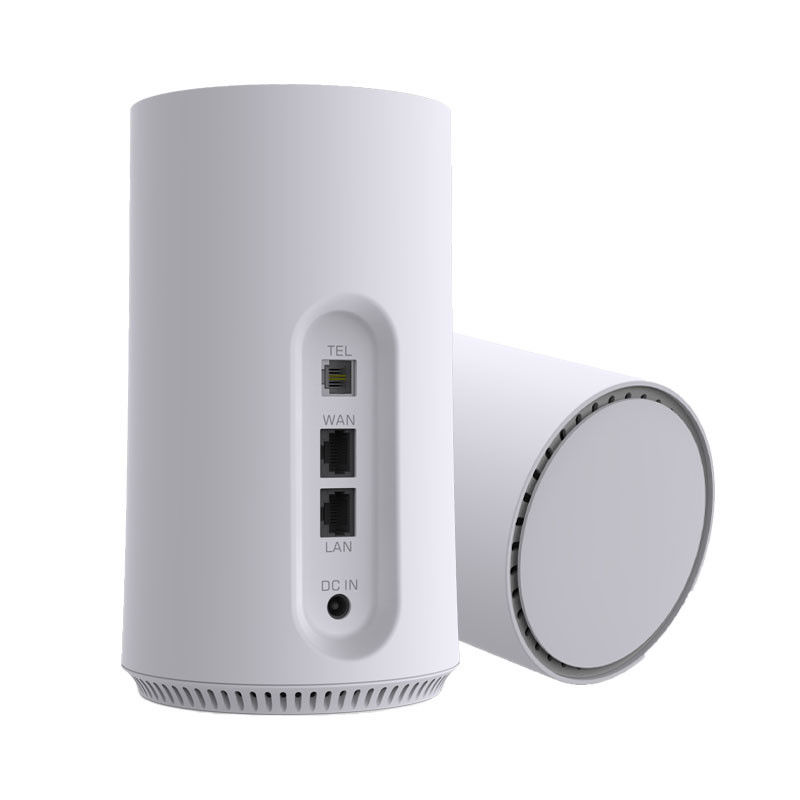

Details Images

Gigabit 5G LTE Router 12V DC Power Chipset SDX62 Wifi6 Router With SIM Slot 0Gigabit 5G LTE Router 12V DC Power Chipset SDX62 Wifi6 Router With SIM Slot 1Gigabit 5G LTE Router 12V DC Power Chipset SDX62 Wifi6 Router With SIM Slot 2Gigabit 5G LTE Router 12V DC Power Chipset SDX62 Wifi6 Router With SIM Slot 3Gigabit 5G LTE Router 12V DC Power Chipset SDX62 Wifi6 Router With SIM Slot 4
