1800Mbps Tri-Band 5g Wifi6 Router 12V DC Power Supply 5g Wireless Router
Product Description
HUASIFEI HR300-5G Cellular indoor router is a wireless communication product developed based on 3G/4G LTE/5G network requirements. Supports 3G/4G LTE/5G global frequency bands. Supports 3G/4G LTE/5G internet high speed access. Support 5G NSA. Up to 3.4Gbps (DL)/600Mbps (UL) of NSA mode. 5G SA maximum 2.4Gbps (DL)/1Gbps (UL) access bandwidth service. It supports 2 Gigabit Ethernet ports, one RJ11 telephone port, and supports VOLTE voice. Support for 802.11AX WIFI 6E, 2.4GHz/5GHz Tri-band function. And provide users with WIFI 6, AX1800 large bandwidth hotspot sharing. Meet the access and sharing of more than 32 users' WIFI hotspots. Meet the needs of families, enterprises, and chain stores to provide 4G/5G high-speed Internet access services.
Product features
Easy to use and easy maintenance
Operating system
Built-in OpenWRT 18.06 operating system.
Specification
| Cellular feature | |
|
3G/4G/5G data connectivity |
It provides data connectivity on 5G NR SA and NSA, LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA,HSUPA and WCDMA networks. |
|
3G/4G/5G Frequency bands |
• Version E 5G NR: 5G NSA:n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n48/n77/n78/n79 5G SA:n1/n3/n5/n7/n8/n20/n26/n28/n38/n40/n41/n48/n77/n78/n79 LTE FDD:B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32 LTE-TDD:B38/B39/B40/B41/B42/B43/B46*/B48 WCDMA: B1/B5/B8
• Version A 5G NR: 5G NSA:n2/n5/n7/n12/n14/n25/n26/n30/n38/n41/n48/n66/n71/n77/n78/n79 5G SA:n2/n5/n7/n12/n13/n14/n25/n26/n29/n30/n38/n41/n48/n66/n71/n77/n78/n79 LTE FDD:B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71 LTE-TDD:B38/B41/B42/B43/B46*/B48 WCDMA: B1/B2/B4/B5
Remarks. More frequency bands or requirements please contact with us. |
|
3G/4G/5G Data rates |
5G NSA. Max 3.4Gbps (DL)/600Mbps (UL) 5G SA. Max 2.4Gbps (DL)/1Gbps (UL) LTE. Max 1.6Gbps (DL)/200Mbps (UL) HSPA+. Max 42Mbps (DL)/ 5.76Mbps (UL) WCDMA Max 384Kbps (DL)/384Kbps (UL) |
| 5G NR features |
3GPP Release 16 Supported modulations: - Uplink: π/2-BPSK, QPSK, 16QAM, 64QAM and 256QAM - Downlink: QPSK, 16QAM, 64QAM and 256QAM Supported SCS: 15 kHz 2 and 30 kHz 2 SA 3 and NSA 3 operation modes supported on all the 5G band Option 3x, 3a, 3 and Option 2 Maximum transmission data rates 4: - NSA: 3.4 Gbps (DL)/ 550 Mbps (UL) - SA: 2.4 Gbps (DL)/ 900 Mbps (UL) |
| LTE features |
3GPP Release 16 LTE Category: DL Cat 19/ UL Cat 18 Supported modulations. - Uplink: QPSK, 16QAM and 64QAM and 256QAM - Downlink: QPSK, 16QAM and 64QAM and 256QAM Supports 1.4/3/5/10/15/20 MHz RF bandwidth Maximum transmission data rates . - 1.6 Gbps (DL)/ 200 Mbps (UL) |
| UMTS features |
3GPP Release 9, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA. Supported modulations. QPSK, 16QAM and 64QAM Maximum transmission data rates. - HSPA+. 42 Mbps (DL)/ 5.76 Mbps (UL) - WCDMA. 384 kbps (DL)/ 384 kbps (UL) |
| Antennas | 4 * 4G/5G internal antenna,4*4 MIMO, with 50 Ω impedance. |
| SIM card feature | |
| SIM card | Supports 1* SIM slots, 1.8V / 3V . Or 1* eSIM card. ( Optional ) |

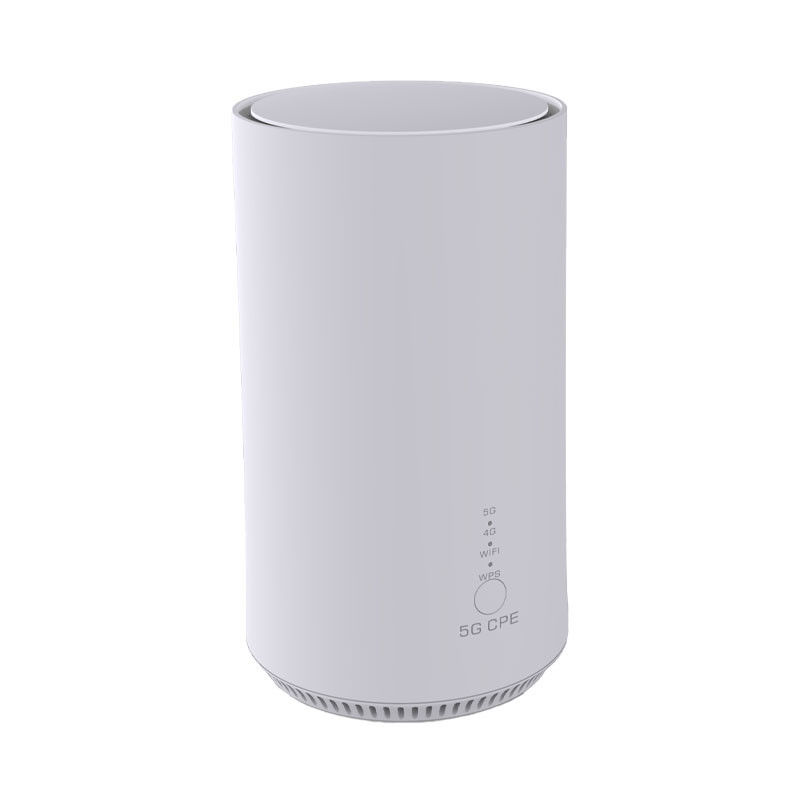

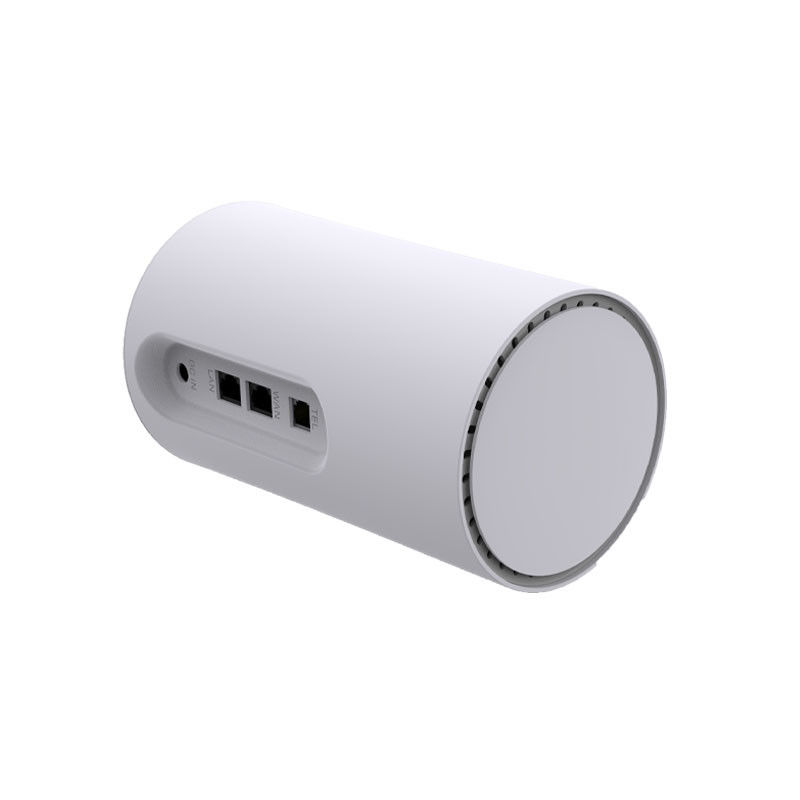

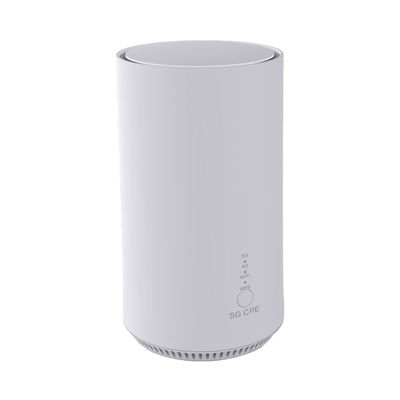

Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Our products are sold all over the world, you can rest assured.
